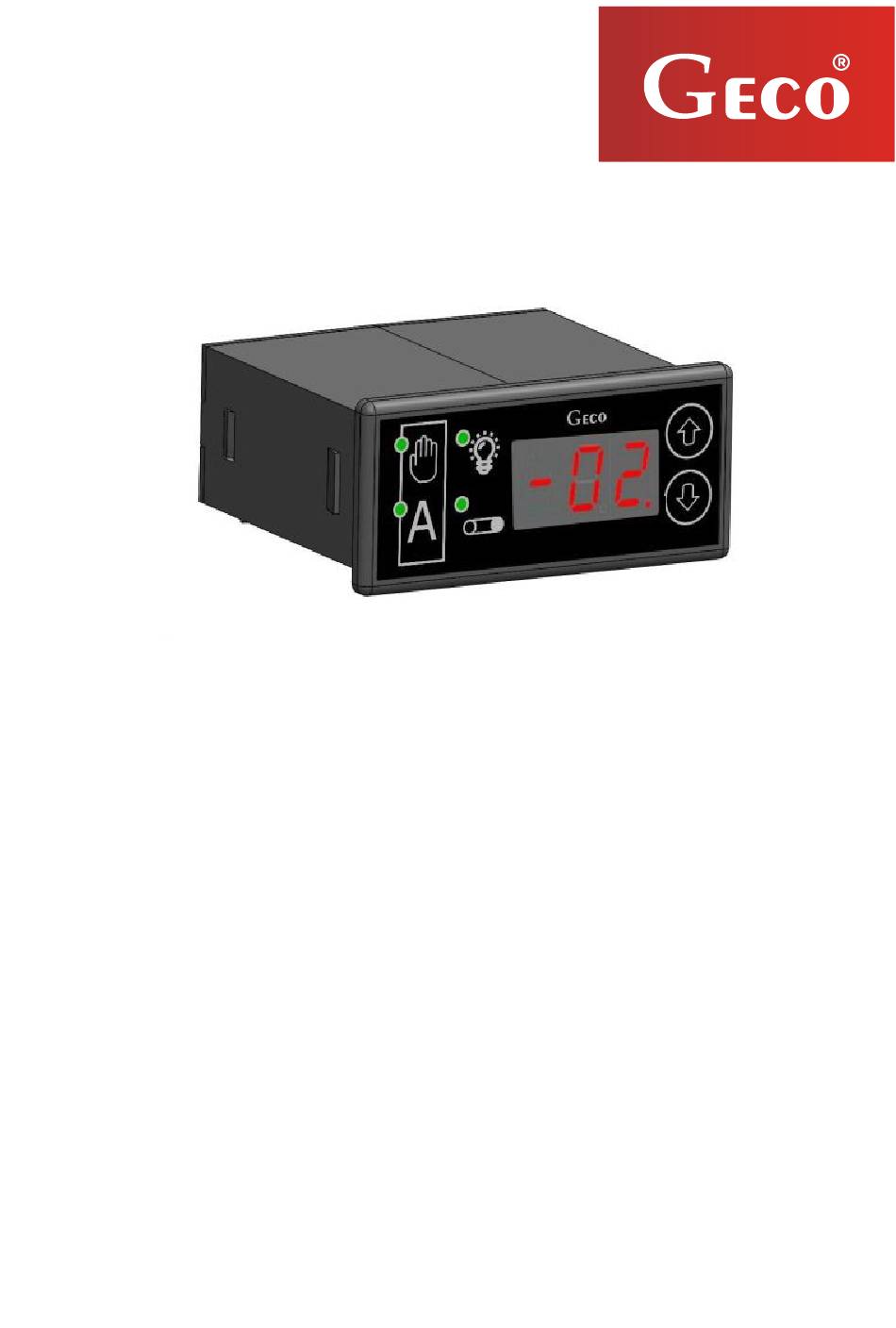

SERVICE MANUAL FOR
OPERATING THE STANDALONE
CONTROL BLOCK
GC510
Program version 01a
We kindly ask you to carefully study the instructions before connecting and starting each of our
devices. In case of any doubts, please contact our company between 8.00 - 16.00.
Attention !!!
At the bottom of each next page is the date of the last update, please always use the latest version of
the manual, which can be obtained free of charge by post after prior order.
Advertisement
Table of Contents
Related Manuals for Geco GC510
Summary of Contents for Geco GC510
- Page 1 SERVICE MANUAL FOR OPERATING THE STANDALONE CONTROL BLOCK GC510 Program version 01a We kindly ask you to carefully study the instructions before connecting and starting each of our devices. In case of any doubts, please contact our company between 8.00 - 16.00.
-
Page 2: Table Of Contents
General characteristics......................4 Technical data..........................4 Electrical installation and connection rules................4 GC510 driver support....................... 5 5.1. Turning on the device and calibrating the touch keyboard............5 5.2. Manual control ......................... 5 5.3. Automatic operation ......................... 5 5.4. -
Page 3: Connection Diagram
GC510 SERVICE MANUAL PAGE 3 1. Connection diagram. PPUH „GECO” Sp. z o.o. Edition From day 2024-3-12... -
Page 4: General Characteristics
- input for connecting a remote control pedal. - input for connecting the emergency switch. The GC510 controller is also equipped with outputs enabling direct connection of devices operating at 230V, such as: - main feeder motor, max. load: 1A - light, max. -
Page 5: Gc510 Driver Support
GC510 SERVICE MANUAL PAGE 5 5. GC510 driver support. 5.1. Turning on the device and calibrating the touch keyboard. After connecting the controller to the power source, the controller calibrates the touch keyboard for about 2 seconds. During calibration, do not bring your hands close to the sensors, as this will result in incorrect calibration and, consequently, incorrect operation of the keyboard. -
Page 6: Photocell
If service parameter "c9" = 99, the motor runs at full speed after softstart. Setting a lower value of this parameter results in limiting the revolutions to the set value. The desired belt speed should be selected experimentally. PPUH „GECO” Sp. z o.o. Edition From day 2024-3-12... -
Page 7: Configuration Of Service Parameters
If no button is pressed for at least 20 seconds, the programming will be automatically exited (transition to manual operation mode), but changes in the last edited parameter will not be saved. PPUH „GECO” Sp. z o.o. Edition From day 2024-3-12... - Page 8 Please note that making a mistake may cause malfunction or prevent the system from functioning. - After programming and starting the device, check its operation and the correctness of the system parameters. PPUH „GECO” Sp. z o.o. Edition From day 2024-3-12...
-
Page 9: Service Parameters
Soft stop time (when 0 means no smooth stop of the 1/4s 4 (1s) motor). Maximum revolutions of the main feeder motor. A value of 99 means full motor speed. Photocell filter. PPUH „GECO” Sp. z o.o. Edition From day 2024-3-12... -
Page 10: Information On Labeling And Collection Of Waste Electrical And Electronic Equipment
Proper disposal of old and used electrical and electronic equipment will help to avoid potentially adverse effects on the environment and human health. The obligation to selectively collect waste equipment rests with the user, who should hand it over to a waste equipment collector. PPUH „GECO” Sp. z o.o. Edition From day 2024-3-12... - Page 12 P.P.U.H. „Geco” Sp. z o. o. Cholerzyn 376, 32-060 Liszki tel. 012 6369811, 6361290 fax. 012 6362002 http://www.geco.pl e-mail: geco@geco.pl...
