SERVICE OPERATING MANUAL
FOR SELF-CONTAINED CONTROL BLOCK (S.C.C.B.)
G-202-P00
VERSION FOR COOLING APPLIANCES
For software version 02
We kindly request that you study this manual carefully PRIOR to connecting and starting up any of our
equipment. Should you have any queries or doubts, please contact us between 8 a.m. and 4 p.m. Any
comments e-mailed will be appreciated.
Note !!!
The date of the last update is given at the bottom of the consecutive pages, while
information regarding the consecutive changes in the programme version and operation
method are given at the end of page XV.
Please, use always the newest version of operating manual which can be received free of charge by
mail after submission of an order.
Advertisement
Table of Contents
Related Manuals for Geco G-202-P00
Summary of Contents for Geco G-202-P00
- Page 1 SERVICE OPERATING MANUAL FOR SELF-CONTAINED CONTROL BLOCK (S.C.C.B.) G-202-P00 VERSION FOR COOLING APPLIANCES For software version 02 We kindly request that you study this manual carefully PRIOR to connecting and starting up any of our equipment. Should you have any queries or doubts, please contact us between 8 a.m. and 4 p.m. Any comments e-mailed will be appreciated.
-
Page 2: Table Of Contents
Page 2 Service Manual for Producers SCCB TYPE G-202-P00 Table of contents GENERAL CHARACTERISTICS ..................3 METHOD OF MARKING AND TECHNICAL DATA .............. 3 III. ORDERING METHOD ...................... 5 DELIVERY, INSTALLATION AND HOOKUP ................ 5 THE PRINCIPLE FOR INSTALLATION OF SENSORS, TYPES OF PROTECTIVE CASES ....6 OPERATION METHOD .................... -
Page 3: General Characteristics

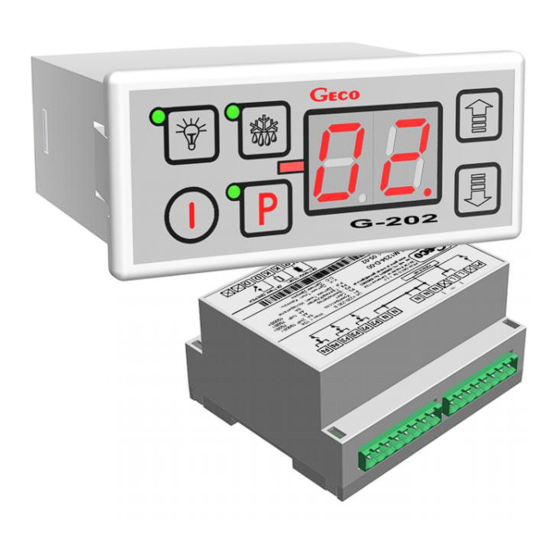

The controller has been made using microprocessor techniques with the application of automatic surface assembly process. Owing to the twin part case and revolutionary technical design, the G-202-P00 can be applied to any refrigerated counters or refrigeration chambers. The safe voltage operated control panel (5 V) may be installed in any place, without the necessity of cutting any additional openings or running a number of power supply cables far away from the equipment being controlled. - Page 4 Page 4 Service Manual for Producers SCCB TYPE G-202-P00 The simplest thermostats are equipped with the following: 1000 – compressor 1200 - compressor and lighting system While the mostly developed ones are equipped with the following: 1034 - compressor, fan, heater, ...
-
Page 5: Ordering Method
For store equipment the SCCB executive module MUST be mounted on the rail set to down towards the floor!!! 3. Any metal elements, through which the G-202-P00 or its cables are run should be ground or protected otherwise. Fitting G-202-P00 to enable direct action of water on it (e.g. water condensating on the bottom cover of the shop window), touching the outlet pipe from the evaporator etc. -
Page 6: The Principle For Installation Of Sensors, Types Of Protective Cases
Page 6 Service Manual for Producers SCCB TYPE G-202-P00 9. If heaters are used, their power must be fitted correctly, which means that during failure of the G-202 or of the external contactor and switching them on for good, there were no possibility of fire or the device damage. -
Page 7: Operation Method
7. After every reaching of the preset temperature (user set temperature minus bottom value of the hysteresis), as well as following any power failure or voltage drops below 175 volts, the G-202-P00 will make impossible for the compressor to be activated for the period as specified by the ‘c2’ parameter. If, however, ‘c2’=0min, the protection time will last 60 seconds following any power failure. -
Page 8: B - Defrosting
3. If the defrosting occurs, and the temperature on the evaporator is lower than set in the ‘d2’ parameter, the G-202-P00 will activate the defrosting process, and after reaching the temperature as specified in the ‘d2’ parameter, the unit will enter the defrosting exiting mode (this status is signalled by the green LED, which blinks on the pushbutton). -
Page 9: C - The Door Opening Sensor Operation Principle
C – The Door Opening Sensor Operation Principle 1. If the door has been opened, the fan will be stopped immediately. In addition to the above, depending on the ‘r7’ parameter setting, the light may be turned on in the G-202-P00 unit. The display shows the temperature. -
Page 10: Unit Particular Components Activation Graphs
Page 10 Service Manual for Producers SCCB TYPE G-202-P00 As the Manufacturer of the refrigeration unit (refrigerated counter) (temperatures above 0 C), we require the unit to allow the operation within the temperature range that does not exceed the values specified below: Deactivation min: 2ºC. - Page 11 Page 11 SCCB TYPE G-202-P00 Service Manual for Producers The first 6 charts apply to the setting of ‘r0’ = 00 – the fan is on during defrosting, like in the 01 program version. 1. Defrosting through the compressor stop, ‘r1’=01, fans operate only together with the compressor, ‘r2’=00...
- Page 12 Page 12 Service Manual for Producers SCCB TYPE G-202-P00 The following charts apply to the ‘r0’=01 parameter. 7. Defrosting with heater ‘r1’=02, fans run only together with compensator ‘r2’=00, fan on during defrosting ‘r0’=01 t=c3 t=c4 COMPRESSOR HEATER Stop Operation...
-
Page 13: System Parameters Programming
Partial entering of the settings is also possible. If any alteration of the particular setting is not required, simply press the pushbutton and the G-202-P00 unit will assume the next parameter setting mode. Note !!! The refrigeration unit Manufacturer may block access to a portion of or even to all parameters available from the keyboard, by means of the computer programming unit. - Page 14 5°C Setting the parameter to +40°C disables this control. Mode of fan operation during defrosting 00- ‘classic’ mode according to the Geco algorithm 01- always on during defrosting 02 - always off during defrosting Evaporator defrosting method, the parameter set as follows: 01 –...
-
Page 15: Changes In The Control
01 – sensor connected to the module accommodating relays 00 – sensor connected to the control module –Note: A special cable with a plug should be ordered !!! IX. CHANGES IN THE CONTROL Software version 02 for controller G-202-P00. Parameters added: d6 i r0. PPUH „GECO” EDITION I... -
Page 16: Problems And Their Removal
Page 16 Service Manual for Producers SCCB TYPE G-202-P00 PROBLEMS AND THEIR REMOVAL Failure symptoms Check 1. The display is off Check: even if G-202 is - if 220V voltage is present on the power supply terminals L and N... - Page 17 Page 17 SCCB TYPE G-202-P00 Service Manual for Producers 8. ‘Abnormal’, Check: ‘strange’ behavior of - if 230V voltage is present on the power supply terminals L and N the unit. - condition of the power supply connectors - grounding of the refrigerating unit...
-
Page 18: Returns For Repair
!!! P.P.U.H. ‘Geco’ Sp. z o. o. is not responsible for loses and damages resulting from provision of information on the method of making changes in the system data of G-202- P00 by the producer or its service to the final client, incorrect or non-professional assembly and for loses caused by defective operation of the appliance. -
Page 19: Method Of Connecting Devices To The Controller
Page 19 SCCB TYPE G-202-P00 Service Manual for Producers XII. METHOD OF CONNECTING DEVICES TO THE CONTROLLER PPUH „GECO” EDITION I PRINTOUT DATE 2014-03-27... -
Page 20: Operation Of G-202: For User
Page 20 Service Manual for Producers SCCB TYPE G-202-P00 XIII. OPERATION OF G-202: FOR USER 1. Having turned the equipment on, the display will show two dots, for the period of one second, and then the version of the controller program will be displayed as well as dots for the period of one second. - Page 21 Page 21 SCCB TYPE G-202-P00 Service Manual for Producers PPUH „GECO” EDITION I PRINTOUT DATE 2014-03-27...
- Page 22 Page 22 Service Manual for Producers SCCB TYPE G-202-P00 P.P.U.H. „Geco” Sp. z o. o. Cholerzyn 376 32-060 Liszki, Poland tel. +48 (12) 6369811,6361290 fax. +48 (12) 6362002 e-mail: geco@geco.pl http://www.geco.pl PPUH „GECO” EDITION I PRINTOUT DATE 2014-03-27...
