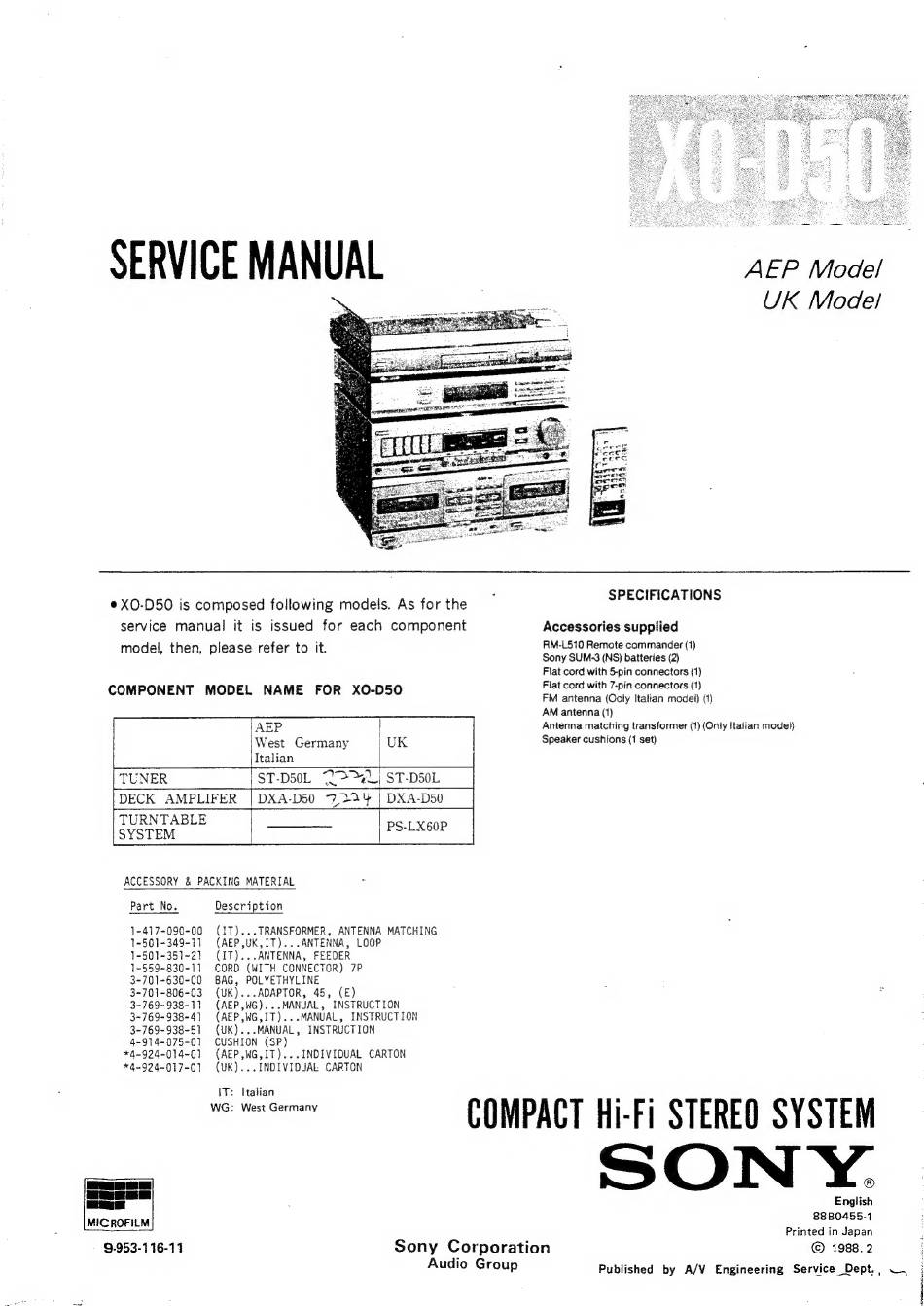

Sony XO-D50 Service Manual

SERVICE MANUAL
*X0-D50 is composed following models. As for the
service manual it is issued for each component
model, then, please refer to it.
COMPONENT MODEL NAME FOR XO-D50
AEP
West Germany UK
Italian
TUNER i ST-D50L > 4) ST-D50L
——
7224 | DXA-D50
po aS
DECK AMPLIFER | DXA-D50 7
TURNTABLE
SYSTEM
PS-LX60P
ACCESSORY & PACKING MATERIAL
Part No. Description
1-417-090-00 (IT)...TRANSFORMER, ANTENNA MATCHING
1-501-349-11 (AEP,UK,IT)...ANTENNA, LOOP
1-501-351-21 (IT)... ANTENNA, FEEDER
1-559-830-11 CORD (WITH CONNECTOR) 7P
3-701-630-00 BAG, POLYETHYLINE
3-701-806-03 (UK)...ADAPTOR, 45, (E)
3-769-938-11 (AEP,WG)...MANUAL, INSTRUCTION
3-769-938-4 (AEP ,WG,IT)...MANUAL, INSTRUCTION
3-769-938-51 (UK)...MANUAL, INSTRUCTION
4-914-075-01 CUSHION (SP)
*4-924-014-01 (AEP,WG,IT)... INDIVIDUAL CARTON
*4-924-017-01 (UK)... INDIVIDUAL CARTON
IT: Italian
WG: West Germany
MICROFILM
9-953-116-11
Sony Corporation
Audio Group
AEP Model
UK Mode!
SPECIFICATIONS
Accessories supplied
RM-L510 Remote commander (1)
Sony SUM-3 (NS) batteries (2)
Flat cord with 5-pin connectors (1)
Flat cord with 7-pin connectors (1)
FM antenna (Ooly Italian model) (1)
AM antenna (1)
Antenna matching transformer (1) (Only Italian model)
Speaker cushions (1 set)
COMPACT Hi-Fi STEREO SYSTEM
SONY.
English
88B0455-1
Printed in Japan
© 1988.2
Published by A/V Engineering Service Dept., —,
