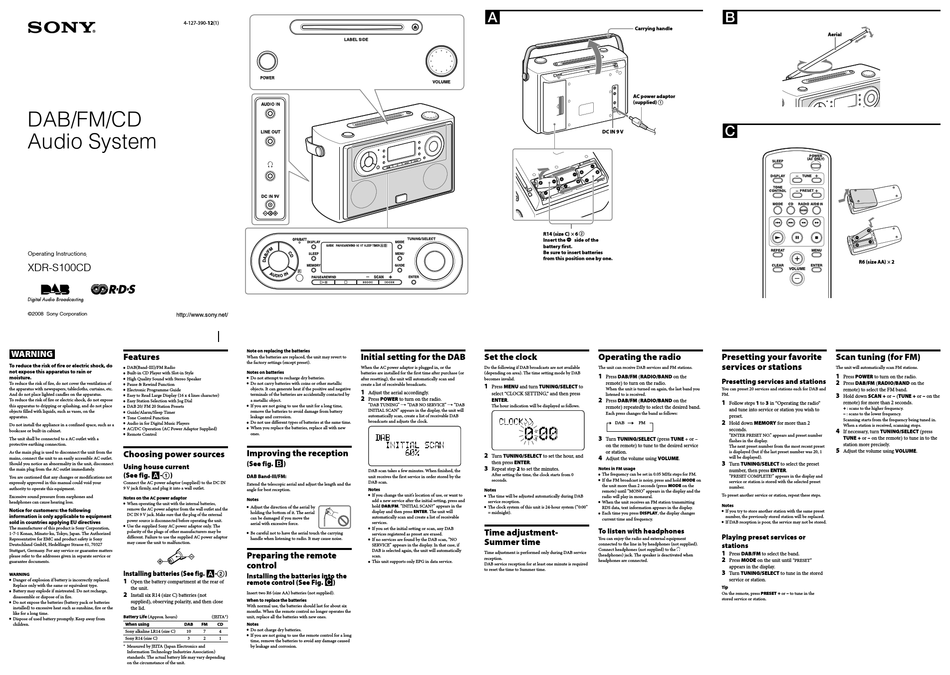

Sony XDR-S100CD Operating Instructions

4-127-390-12(1)
DAB/FM/CD

Audio System

Operating Instructions
XDR-S100CD
©2008 Sony Corporation
WARNING
Features
To reduce the risk of fire or electric shock, do
 DAB(Band-III)/FM Radio
not expose this apparatus to rain or
 Built-in CD Player with Slot-in Style
moisture.
 High Quality Sound with Stereo Speaker
To reduce the risk of fire, do not cover the ventilation of
 Pause & Rewind Function
the apparatus with newspapers, tablecloths, curtains, etc.
 Electronic Programme Guide
And do not place lighted candles on the apparatus.
 Easy to Read Large Display (16 x 4 lines character)
To reduce the risk of fire or electric shock, do not expose
 Easy Station Selection with Jog Dial
this apparatus to dripping or splashing, and do not place  DAB 20/ FM 20 Station Presets
objects filled with liquids, such as vases, on the
 Guide/Alarm/Sleep Timer
apparatus.
 Tone Control Function
 Audio in for Digital Music Players
Do not install the appliance in a confined space, such as a
 AC/DC Operation (AC Power Adaptor Supplied)
bookcase or built-in cabinet.
 Remote Control
The unit shall be connected to a AC outlet with a
protective earthing connection.
Choosing power sources
As the main plug is used to disconnect the unit from the
mains, connect the unit to an easily accessible AC outlet.
Should you notice an abnormality in the unit, disconnect
Using house current
the main plug from the AC outlet immediately.
(See fig. -)
You are cautioned that any changes or modifications not
Connect the AC power adaptor (supplied) to the DC IN
expressly approved in this manual could void your
authority to operate this equipment. 9 V jack firmly, and plug it into a wall outlet.
Excessive sound pressure from earphones and
Notes on the AC power adaptor
headphones can cause hearing loss.
 When operating the unit with the internal batteries,
remove the AC power adaptor from the wall outlet and the
Notice for customers: the following
DC IN 9 V jack. Make sure that the plug of the external
information is only applicable to equipment
power source is disconnected before operating the unit.
sold in countries applying EU directives
 Use the supplied Sony AC power adaptor only. The
The manufacturer of this product is Sony Corporation,
polarity of the plugs of other manufacturers may be
1-7-1 Konan, Minato-ku, Tokyo, Japan. The Authorized
different. Failure to use the supplied AC power adaptor
Representative for EMC and product safety is Sony
may cause the unit to malfunction.
Deutschland GmbH, Hedelfinger Strasse 61, 70327
Stuttgart, Germany. For any service or guarantee matters
please refer to the addresses given in separate service or
guarantee documents.
Installing batteries (See fig. -)
WARNING
 Danger of explosion if battery is incorrectly replaced. 1
Open the battery compartment at the rear of
Replace only with the same or equivalent type.
the unit.
 Battery may explode if mistreated. Do not recharge,
2
Install six R14 (size C) batteries (not
disassemble or dispose of in fire.
supplied), observing polarity, and then close
 Do not expose the batteries (battery pack or batteries
installed) to excessive heat such as sunshine, fire or the the lid.
like for a long time.
Battery Life (Approx. hours)
 Dispose of used battery promptly. Keep away from
children. When using DAB
Sony alkaline LR14 (size C) 10
Sony R14 (size C) 3
* Measured by JEITA (Japan Electronics and
Information Technology Industries Association)
standards. The actual battery life may vary depending
on the circumstance of the unit.
Note on replacing the batteries
Initial setting for the DAB
When the batteries are replaced, the unit may revert to
the factory settings (except preset).
When the AC power adaptor is plugged in, or the
Notes on batteries
batteries are installed for the first time after purchase (or
 Do not attempt to recharge dry batteries.
after resetting), the unit will automatically scan and
 Do not carry batteries with coins or other metallic
create a list of receivable broadcasts.
objects. It can generate heat if the positive and negative
1
Adjust the aerial accordingly.
terminals of the batteries are accidentally contacted by
2
Press POWER to turn on the radio.
a metallic object.
"DAB TUNING"  "DAB NO SERVICE"  "DAB
 If you are not going to use the unit for a long time,
INITIAL SCAN" appears in the display, the unit will
remove the batteries to avoid damage from battery
automatically scan, create a list of receivable DAB
leakage and corrosion.
broadcasts and adjusts the clock.
 Do not use different types of batteries at the same time.
 When you replace the batteries, replace all with new
ones.
Improving the reception
(See fig. )
DAB scan takes a few minutes. When finished, the
DAB Band-III/FM: unit receives the first service in order stored by the
DAB scan.
Extend the telescopic aerial and adjust the length and the
Notes
angle for best reception.
 If you change the unit's location of use, or want to
Notes add a new service after the initial setting, press and
hold DAB/FM. "INITIAL SCAN?" appears in the
 Adjust the direction of the aerial by
holding the bottom of it. The aerial display and then press ENTER. The unit will
automatically scan and create a list of receivable
can be damaged if you move the
services.
aerial with excessive force.
 If you set the initial setting or scan, any DAB
 Be careful not to have the aerial touch the carrying
services registered as preset are erased.
handle when listening to radio. It may cause noise.
 If no services are found by the DAB scan, "NO
SERVICE" appears in the display. In that case, if
DAB is selected again, the unit will automatically
Preparing the remote
scan.
control  This unit supports only EPG in data service.
Installing the batteries into the
remote control (See Fig. )
Insert two R6 (size AA) batteries (not supplied).
When to replace the batteries
With normal use, the batteries should last for about six
months. When the remote control no longer operates the
(JEITA*) unit, replace all the batteries with new ones.
FM CD Notes
 Do not charge dry batteries.
7 4
 If you are not going to use the remote control for a long
2 1
time, remove the batteries to avoid any damage caused
by leakage and corrosion.

Carrying handle
AC power adaptor
(supplied) 
DC IN 9 V
R14 (size C) 6 

Insert the  side of the
battery first.
Be sure to insert batteries
from this position one by one.
Set the clock Operating the radio
Do the following if DAB broadcasts are not available The unit can receive DAB services and FM stations.
(depending on area). The time setting mode by DAB
1
Press DAB/FM (RADIO/BAND on the
becomes invalid.
remote) to turn on the radio.
1
Press MENU and turn TUNING/SELECT to
When the unit is turned on again, the last band you
select "CLOCK SETTING, " and then press
listened to is received.
ENTER. 2
Press DAB/FM (RADIO/BAND on the
The hour indication will be displayed as follows.
remote) repeatedly to select the desired band.
Each press changes the band as follows:
DAB FM
3
Turn TUNING/SELECT (press TUNE + or –
on the remote) to tune to the desired service
or station.
2
Turn TUNING/SELECT to set the hour, and
4
Adjust the volume using VOLUME.
then press ENTER.
3
Repeat step 2 to set the minutes.
Notes in FM usage
 The frequency can be set in 0.05 MHz steps for FM.
After setting the time, the clock starts from 0
seconds.  If the FM broadcast is noisy, press and hold MODE on
the unit more than 2 seconds (press MODE on the
Notes
remote) until "MONO" appears in the display and the
 The time will be adjusted automatically during DAB
radio will play in monaural.
service reception.
 When the unit receives an FM station transmitting
 The clock system of this unit is 24-hour system ("0:00"
RDS data, text information appears in the display.
= midnight).  Each time you press DISPLAY, the display changes
current time and frequency.
Time adjustment- To listen with headphones
You can enjoy the radio and external equipment
Summer time
connected to the line in by headphones (not supplied).
Connect headphones (not supplied) to the 
Time adjustment is performed only during DAB service
(headphones) jack. The speaker is deactivated when
reception.
headphones are connected.
DAB service reception for at least one minute is required
to reset the time to Summer time.

Aerial

R6 (size AA) 2

Presetting your favorite Scan tuning (for FM)
services or stations
The unit will automatically scan FM stations.
1
Press POWER to turn on the radio.
Presetting services and stations
2
Press DAB/FM (RADIO/BAND on the
You can preset 20 services and stations each for DAB and remote) to select the FM band.
FM. 3
Hold down SCAN + or – (TUNE + or – on the
1
remote) for more than 2 seconds.
Follow steps 1 to 3 in "Operating the radio"
+ : scans to the higher frequency.
and tune into service or station you wish to
– : scans to the lower frequency.
preset.
Scanning starts from the frequency being tuned in.
2
Hold down MEMORY for more than 2
When a station is received, scanning stops.
seconds.
4
If necessary, turn TUNING/SELECT (press
"ENTER PRESET NO. " appears and preset number
TUNE + or – on the remote) to tune in to the
flashes in the display.
station more precisely.
The next preset number from the most recent preset
5
Adjust the volume using VOLUME.
is displayed (but if the last preset number was 20, 1
will be displayed).
3
Turn TUNING/SELECT to select the preset
number, then press ENTER.
"PRESET COMPLETE!" appears in the display and
service or station is stored with the selected preset
number.
To preset another service or station, repeat these steps.
Notes
 If you try to store another station with the same preset
number, the previously stored station will be replaced.
 If DAB reception is poor, the service may not be stored.
Playing preset services or
stations
1
Press DAB/FM to select the band.
2
Press MODE on the unit until
"PRESET"
appears in the display.
3
Turn TUNING/SELECT to tune in the stored
service or station.
Tip
On the remote, press PRESET + or – to tune in the
stored service or station.
