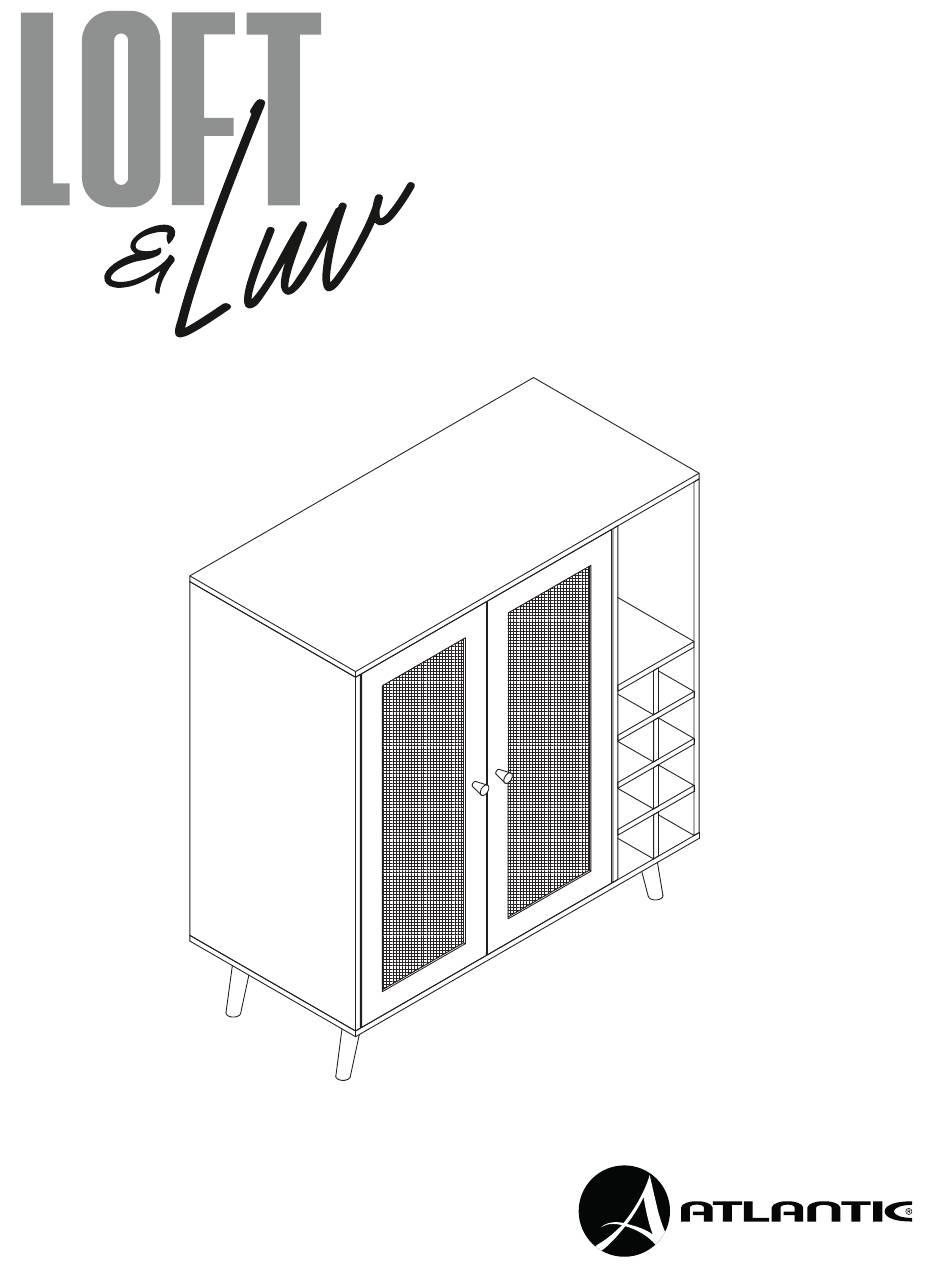

- Page 1 Coda Bar Cabinet Item#: 38408143 38408171 38408172 Customer Service: 800-747-2660 Ver. 02 03/28/23...
- Page 2 Assembly Tips: Become familiar with the instructions and all parts. Make sure that all parts are in the box and in good condition. Assemble the product on an open flat carton or a rug to protect the product and your floor. DOT NOT over-torque cam locks.
- Page 3 Parts List/ Lista de Piezas x 14+2 x 14+2 x 20+2 x 16 CAM Lock Stickers Leg Pads Tools Needed (not included) Herramanientas requeridas (no incluidas) 6mm ( 7/32”) Ø Ø 3mm ( 1/8”) Ø Ø...
- Page 4 Screw in cam screws (A) into panel (1) with Phillips screwdriver. Screw in glass rack (L) into panel (1) with screws (D) using Phillips screwdriver. Screw in magnets (M) into panel (1) with screws (G) using Phillips screwdriver. Atornille los tornillos de leva (A) en el panel (1) con un destornillador Phillips.
- Page 5 Screw in cam screws (A) into panels (2) & (6) using Phillips screwdriver. Screw in cam screws (A) into panel (4) using Phillips screwdriver. Then flip panel over and screw in cam screws (A) into panel (4) using Phillips screwdriver. Atornille los tornillos de leva (A) en los paneles (2) y (6) con un destornillador Phillips.
- Page 6 Cam Lock Sticker Attach panel (3) to pre-assembled part from Step 4 and Fije el panel (3) a la pieza premontada del paso 4 y al panel (2) con panel (2) with wood dowels (C) and cam screws from tacos de madera (C) y tornillos de leva del panel (2). Inserte los panel (2).
- Page 7 Take pre-assembled part from Step 6 and slide panel (7) into the back channel to the bottom of pre-assembled part. Tome la pieza premontada del paso 6 y deslice el panel (7) en el canal trasero hasta el fondo de la pieza premontada. Insert channel support bracket (8) onto back panel (6).
- Page 8 Attach panel (1) to pre-assembled part from Step 8 with wood dowels (C) and cam screws from panel (1). Inside cabinet, insert cam locks (B) and screw clockwise with Phillips screwdriver to lock in place. Attach stickers (U) to cover each cam lock. Attach door panels (13) and (14) by inserting hinge pins into pre-drilled holes.
- Page 9 Gently flip over pre-assembled part from Step 10 and attach leg brackets (I) to bottom of pre-assembled part with screws (F) using Phillips screwdriver. Attach legs (10) by screwing clockwise. Then place pads (P) on bottom of legs. Dé la vuelta con cuidado a la pieza premontada del paso 10 y fije los soportes de las patas (I) a la parte inferior de la pieza premontada con tornillos (F) con un destornillador Phillips.
- Page 10 Product Warranty Thank you for your Atlantic Inc. purchase. This Limited Warranty covers any defects in material or workmanship for purchases made in the U.S.A and Canada, and excludes claims from conditions, malfunctions or damage not resulting from defects in material or workmanship. The warranty duration is one year.
