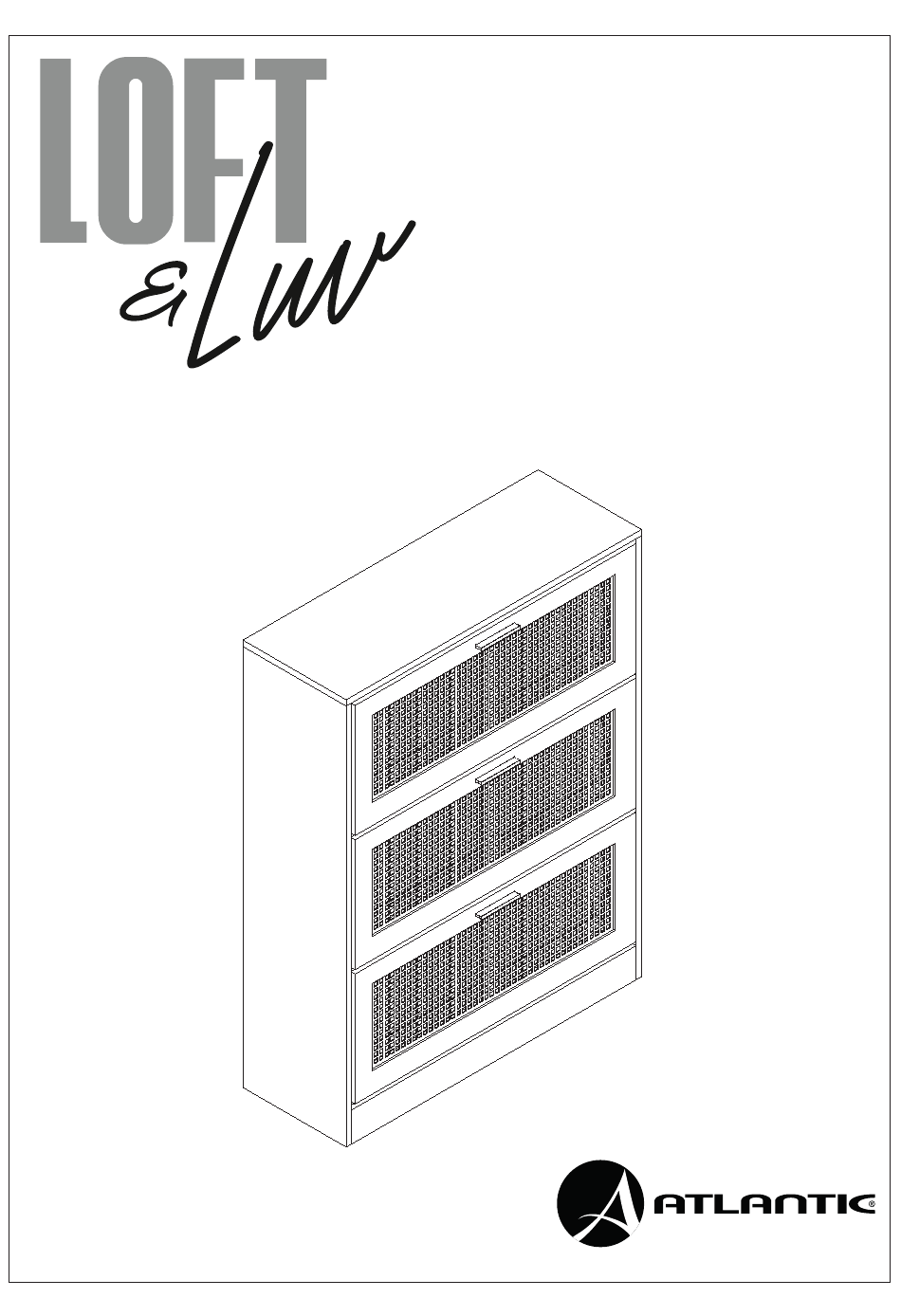

- Page 1 3-Tier Rattan Shoe Cabinet ltem#21008195 / #21008193 Customer Service: 800-747-2660 Ver. 02 01/03/23...
-
Page 2: Assembly Tips
Assembly Tips: Become familiar with the instructions and all parts. Make sure that all parts are in the box and in good condition. Assemble the product on an open flat carton or a rug to protect the product and your floor. DOT NOT over-torque cam locks. - Page 3 Before assembly Tips before your start: - Remove all wrapping material, including staples & packing straps before you start to assemble. - Retire todo el material de envoltura, incluidas las grapas y las correas de embalaje, antes de comenzar a ensamblar. - Retirez tout le matériel d’emballage, y compris les agrafes et les sangles d’emballage avant de commencer à...
-
Page 4: Tools Needed
Tools Needed: Ø6... - Page 5 -Onto panel (2) & (3) screw on six (B) cam screws. -Insert three (E) and three (F) parts, hammer or mallet them in, to ensure they are secure. -En el panel (2) y (3) atornille seis (B) tornillos de leva. -Inserte tres (E) y tres (F) piezas, martillee o malee para asegurarse de que estén seguras.
- Page 6 Note: DO NOT overturn, to avoid any breakage. Nota: NO vuelque, para evitar roturas. Remarque : NE PAS se renverser, pour éviter toute rupture. -Onto panel (4), (5) & (6) insert four (C) cam locks. -Attach panels (4), (5) & (6) onto side frame panels (2) & (3). -When all panels are attached, lock all cam locks, using a Phillips screwdriver.
- Page 7 -On panel (1) screw on four (B) cam screws. -En el panel (1) atornille cuatro (B) tornillos de leva. -Sur le panneau (1) visser sur quatre (B) vis à cames. Safety: On panel (1), screw on safety strap (I), with screw (N). Seguridad: En el panel (1), atornille la correa de seguridad (I), con el...
- Page 8 Note: Panel (7) pre-drill holes must face downward. Nota: Los orificios de pretaladro del panel (7) deben mirar hacia abajo. Remarque : Le panneau (7) les trous de pré-forage doivent être orientés vers le bas. -Lay structure, with side of safety strap upward. -Into the open groove of (1), (2) &...
- Page 9 -Screw on four (N) screws onto pre-drilled holes on panel (7). -Onto corner edges of all back panels (8) & (7), screw on parts (J). As shown on diagram above. -Atornille cuatro (N) tornillos en los orificios pretaladrados del panel (7). -En los bordes de las esquinas de todos los paneles traseros (8) y (7), atornille las piezas (J).
- Page 10 REPEAT STEPS FOR x3 DRAWERS -For each drawer, using a Phillips screwdriver, screw on two (O) bolts & apply the (L) handles through the outer side of drawer panel (12). -Para cada cajón, con un destornillador Phillips, atornille dos pernos (O) y aplique las manijas (L) a través del lado exterior del panel del cajón (12).
- Page 11 REPEAT STEPS FOR x3 DRAWERS -Lay structure of panel (10 + brackets), over the inner side of drawer panel (12), using a Phillips screwdriver attach six (K) screws. -Coloque la estructura del panel (10 + soportes), sobre el lado interior del panel del cajón (12), con un destornillador Phillips fije seis (K) tornillos.
- Page 12 -Ensure that your hex sides line up -Asegúrese de que sus lados hexagonales estén alineados -Assurez-vous que vos côtés hexagones s’alignent -Set drawer, in the cabinet structure while parts (F) will hold onto it in place. -Insert screw (K) into part (D) for securing drawer brackets to the frame of structure.
- Page 13 -Insert shelf panel (11) into each cabinet drawer. -Inserte el panel del estante (11) en cada cajón del gabinete. -Insérer un panneau d’étagère (11) dans chaque tiroir d’armoire. -Using a Phillips screwdriver, insert six (M) screws onto cabinet brackets (G) & (H). -Con un destornillador Phillips, inserte seis tornillos (M) en los soportes del gabinete (G) y (H).
- Page 14 -Drill hole into wall using a 6mm bit. Into the drilled hole, hammer in the wall anchor (I). -Insert (I) screw into hole of safety strap, using a Phillips screwdriver, finish securing your shoe cabinet to your wall. -Taladre un agujero en la pared con una broca de 6 mm. En el orificio perforado, martille el anclaje de pared (I).
- Page 15 Product Warranty Thank you for your Atlantic Inc. purchase. This Limited Warranty covers any defects in material or workmanship for purchases made in the U.S.A and Canada, and excludes claims from conditions, malfunctions or damage not resulting from defects in material or workmanship.
