Sealey VS8813 Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear eye
instructions protection
1. SAFETY
WARNING! To prevent personal injury or damage to vehicles and/or the tool, read this instruction manual first and observe the
‰
following safety precautions.
Always perform automotive testing in a safe environment.
9
Wear safety eye protection.
9
Keep clothing, hair, hands, tools, test equipment, etc. away from all moving or hot engine parts.
9
Operate the vehicle in a well ventilated work area. Exhaust gases are poisonous.
9
Put blocks in front of the drive wheels and never leave the vehicle unattended while running tests.
9
Use extreme caution when working around the ignition coil, distributor cap, ignition wires and spark plugs. These components
9
create hazardous voltages when the engine is running.
Put the transmission in PARK (for automatic transmission) or NEUTRAL (for manual transmission) and make sure the parking brake
9
is engaged.
Keep a fire extinguisher suitable for petrol/chemical/electrical fires nearby.
9
DO NOT connect or disconnect any test equipment while the ignition is on or the engine is running.
8
DO NOT use the tester in the presence of static electricity.
8
Keep tester dry, DO NOT use in wet locations.
9
2. INTRODUCTION
Test the onboard diagnostics port for any faults before connecting other diagnostic devices to the DLC. The breakout box is designed
to be connected in series with 16-pin OBDII/EOBDII diagnostic equipment. It can also be connected to multimeters and oscilloscopes.
Compatible with 12 and 24V systems. The selectable pin voltage indicator shows the real-time voltage of the selected pin.
Communication Protocol Indicator - Pin 6 = CAN H, Pin 14 = CAN L, Pin 2 = VPW+, PWM+, Pin 10 = PWM-, Pin 7 = K_LINE and Pin
15 = L_LINE. Overload protection protects any connected diagnostic equipment from damage.
3. SPECIFICATION
Model No: ................................................................. VS8813
Weight: ........................................................................ 0.24kg
Input Voltage DC: ......................................................... 9-32V
Maximum Load: ..............................................................2.0A
Resolution: ....................................................................: 0.1V
Overload Protection: ........................................................ Yes
Reverse Polarity Protection: ............................................. Yes
Operating Temperature: ............................................ 0°-50°C
Cable Length:............................................................. 700mm

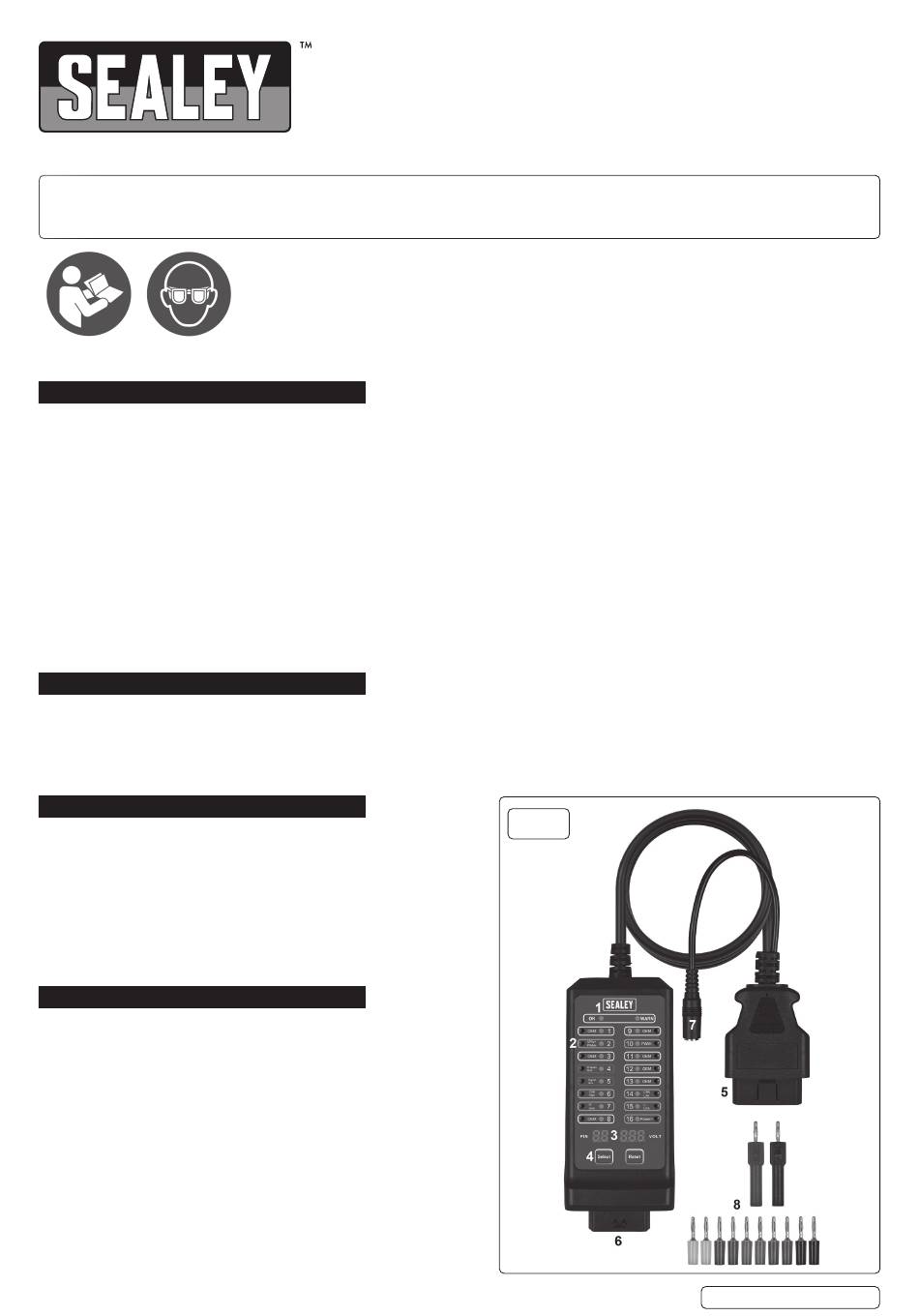

4. FEATURES
1. Signal LED
2. Probe socket
3. Pin and volt display screen
4. Select and reset buttons
5. OBD male
6. OBD female
7. 12-24v input
8. Probes
INPUT VOLTAGE DC: ASSEMBLY & INSTALLATION
© Jack Sealey Limited
16-PIN 12V/24V OBD BREAKOUT BOX - CAR,
MOTORCYCLE, TRUCK, BOAT, VAN
VS8813
MODEL NO:
Original Language Version
fig.1
VS8813 Issue:1 31/10/24
