Page 1: Ceiling Fan

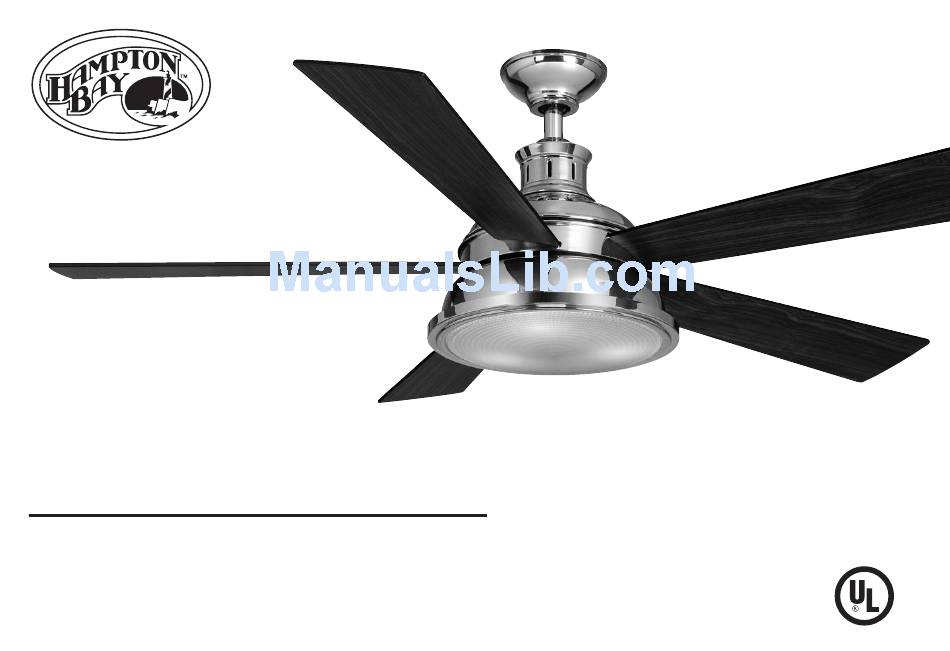

848 883 Marlton Ceiling Fan Owner’s Manual Marlton Ventilador de Techo de 1,32 Manual del Propietario... - Page 2 Hampton Bay Marlton ®...
-
Page 3: Table Of Contents
52” Marlton Thank you for purchasing our ceiling fan. This product has been manufactured with the highest standards of safety and quality. Ceiling Fan by Hampton Bay Date Purchased Table of Contents Store Purchased Safety Rules ....1 848-883 UL Model No. -
Page 4: Safety Rules
Safety Rules - Read and Save These Instructions To reduce the risk of electric shock, insure electricity has been turned off at the After making electrical connections, spliced conductors should be turned circuit breaker or fuse box before beginning. upward and pushed carefully up into outlet box. The wires should be spread apart with the grounded conductor and the equipment-grounding conductor All wiring must be in accordance with the National Electrical Code on one side of the outlet box and ungrounded conductor on the other side of... -
Page 5: Unpacking Your Fan
Unpacking Your Fan Unpack your fan and check the contents. You should have the following items: Set of blades (5) Mounting plate Blade Attachment Hardware (16 Screws, 16 Fiber Washers) Canopy assembly Light plate Ball/downrod assembly Glass shade Electrical Hardware Coupling cover 40 Watt candelabra bulbs (3) (3 Plastic Wire Nuts) -
Page 6: Installing Your Fan
Installing Your Fan Provide Strong Support Tools Required Figures 1~3 are examples of different ways to mount the outlet box. Phillips screwdriver, straight slot screwdriver, step ladder and wire cutters. Recessed Ceiling Outlet Box Mounting Plate Mounting Options Figure 3 Outlet Box Note: You may need a longer downrod to If there isn't an existing UL listed mounting box,... -
Page 7: Hanging The Fan
Hanging the Fan Align the holes at the bottom of the downrod Motor Wires with the holes in the coupling on top of the motor housing (Figure 6). Carefully insert the REMEMBER to turn off the power. Follow the Pin in Locked Ceiling Canopy clevis pin through the holes in the collar and Positioon... -
Page 8: Installing Fan To The Electrical Box
WARNING Installing Fan to UL Listed Outlet Box THE TAB IN THE RING MUST REST IN THE the Electrical Box GROOVE OF THE HANGER BALL AS FIGURE 7. FAILURE TO PROPERLY SEAT THE TAB IN THE GROOVE COULD CAUSE DAMAGE TO WIRING. WARNING 120V Wires... -
Page 9: Making The Electrical Connections
Making the Electrical (Figure 11) Receiver to house supply wires electrical connections: Connect the black (hot) Connections Frequency Switch wire from the ceiling to the black wire marked "AC in L" from he receiver. Connect the white WARNING (neutral) wire from the ceiling to the white wire marked "AC in N"... - Page 10 WARNING WARNING SUPPLY CIRCUIT CHECK TO SEE THAT ALL CONNECTIONS ARE MAKE SURE THE TAB ON THE HANGER TIGHT, INCLUDING GROUND, AND THAT NO BRACKET PROPERLY SITS IN THE GROOVE BARE WIRE IS VISIBLE AT THE WIRE NUTS. IN THE HANGER BALL BEFORE ATTACH- Ground EXCEPT FOR THE GROUND WIRE.
-
Page 11: Attaching The Fan Blades
WARNING Attaching the Fan Blades TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE BLADES WHILE INSTALL- ING, BALANCING THE BLADES, OR CLEANING Insert the blade through the blade slot in the THE FAN. DO NO INSERT FOREIGN OBJECTS decorative housing. -
Page 12: Attaching The Mounting Plate
Attaching the Mounting Blade Balancing Plate The following procedure should correct most fan Touching Ceiling wobble. Check after each step. Remove 1 of 3 screws from the mounting ring and loosen the other 2 screws. (Do not remove) Check that all blade and blade bracket screws are secure. -
Page 13: Installing The Light Kit
Installing the Install the glass shade assembly to the mount- ing plate with screws provided. (Fig. 16) Light Kit Restore power and your light kit is ready for operation. CAUTION NOTE BEFORE STARTING INSTALLATION, DISCON- LIGHT BULBS HAVE NO WARRANTY; CAN BE NECT THE POWER BY TURNING OFF THE PURCHASED AT ANY HOME DEPOT STORE. -
Page 14: Operating Your Transmitter
Operating Your Transmitter Installing the Battery: Restore power to the ceiling fan and test for proper operation. Install 12V MN21/A23 battery (included), to "HI, MED, LOW" buttons: prevent damage to transmitter, remove the battery These three buttons are used to set the fan if not used for long periods (Figure 17). - Page 15 NOTE DO NOT OPERATE REVERSING SWITCH WHILE FAN BLADES ARE IN MOTION. FAN MUST BE TURNED OFF AND BLADES STOPPED BEFORE REVERSING BLADE DIRECTION. Speed settings for warm or cool weather depend on factors such as the room size, ceiling height, number of fans, and so on.
-
Page 16: Care Of Your Fan
Care of Your Fan Troubleshooting PROBLEM SOLUTION Here are some suggestions to help you maintain your fan. Fan will not start Check main and branch circuit fuses or breakers. Because of the fan's natural movement, some Check line wire connections to the fan and switch wire connections in connections may become loose. -
Page 17: Specifications
Specifications FAN SIZE SPEED VOLTS AMPS WATTS N.W. G.W. C.F. 0.34 2319.61 10.2 kgs 11.4 kgs 0.46 3584.98 52” MED. 2.33’ (22.44 lbs) (25.08 lbs) 0.57 5568.88 HIGH These are approximate measures. They do not include Amps and Wattage used by the light kit . -
Page 18: Warranty Information
Hampton Bay Lifetime Limited Warranty (lifetime warranty on motor) The Hampton Bay warrants the fan motor to be free from defects in workmanship and material present at time You must present a copy of the original purchase receipt to obtain warranty of shipment from the factory for a period of lifetime after the date of purchase by the original purchaser.
