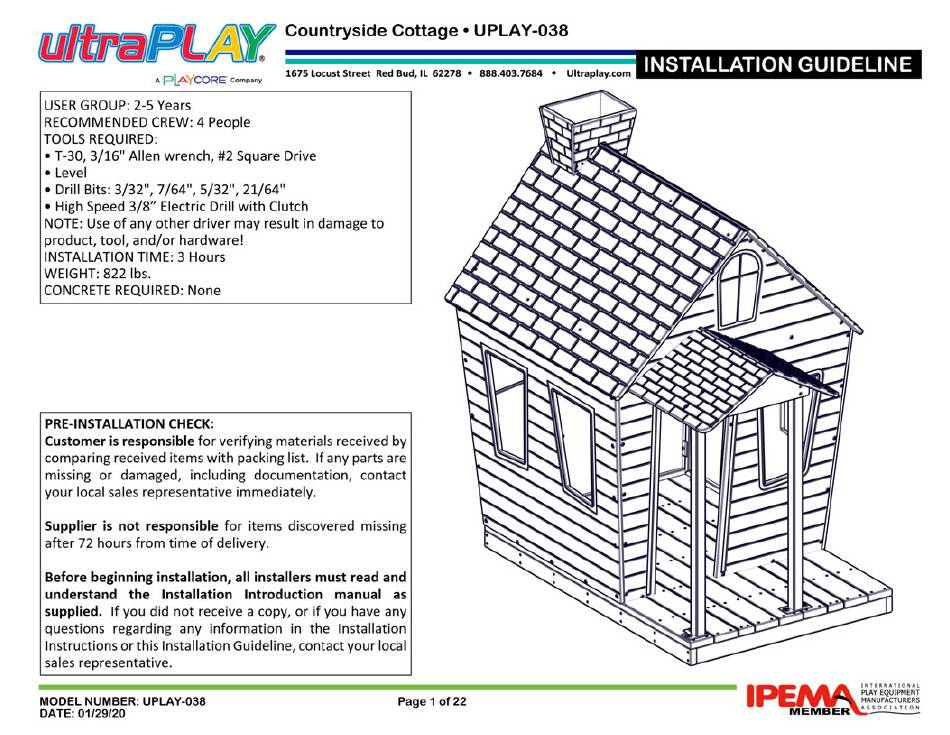

Playcore UltraPlay UPLAY-038 Assembly & Installation Manuallines

Countryside Cottage• UPLAY-038
A
P L A Y CORE.
Company
1675 Locust Street Red Bud, IL 62278 • 888.403.7684 • Ultraplay.com
USER GROUP: 2-5 Years
RECOMMENDED CREW: 4 People
TOOLS REQUIRED:
• T-30, 3/16" Allen wrench, #2 Square Drive
• Level
• Drill Bits: 3/32", 7 /64", 5/32", 21/64"
• High Speed 3/8" Electric Drill with Clutch
NOTE: Use of any other driver may result in damage to
product, tool, and/or hardware!
INSTALLATION TIME: 3 Hours
WEIGHT: 822 lbs.
CONCRETE REQUIRED: None
PRE-INSTALLATION CHECK:
Customer is responsible for verifying materials received by
comparing received items with packing list. If any parts are
missing or damaged, including documentation, contact
your local sales representative immediately.
Supplier is not responsible for items discovered missing
after 72 hours from time of delivery.
Before beginning installation, all installers must read and
understand the Installation Introduction manual as
supplied. If you did not receive a copy, or if you have any
questions regarding any information in the Installation
Instructions or this Installation Guideline, contact your local
sales representative.
MODEL NUMBER: UPLAY-038
DATE: 01/29/20
