At the heart of the kitchen

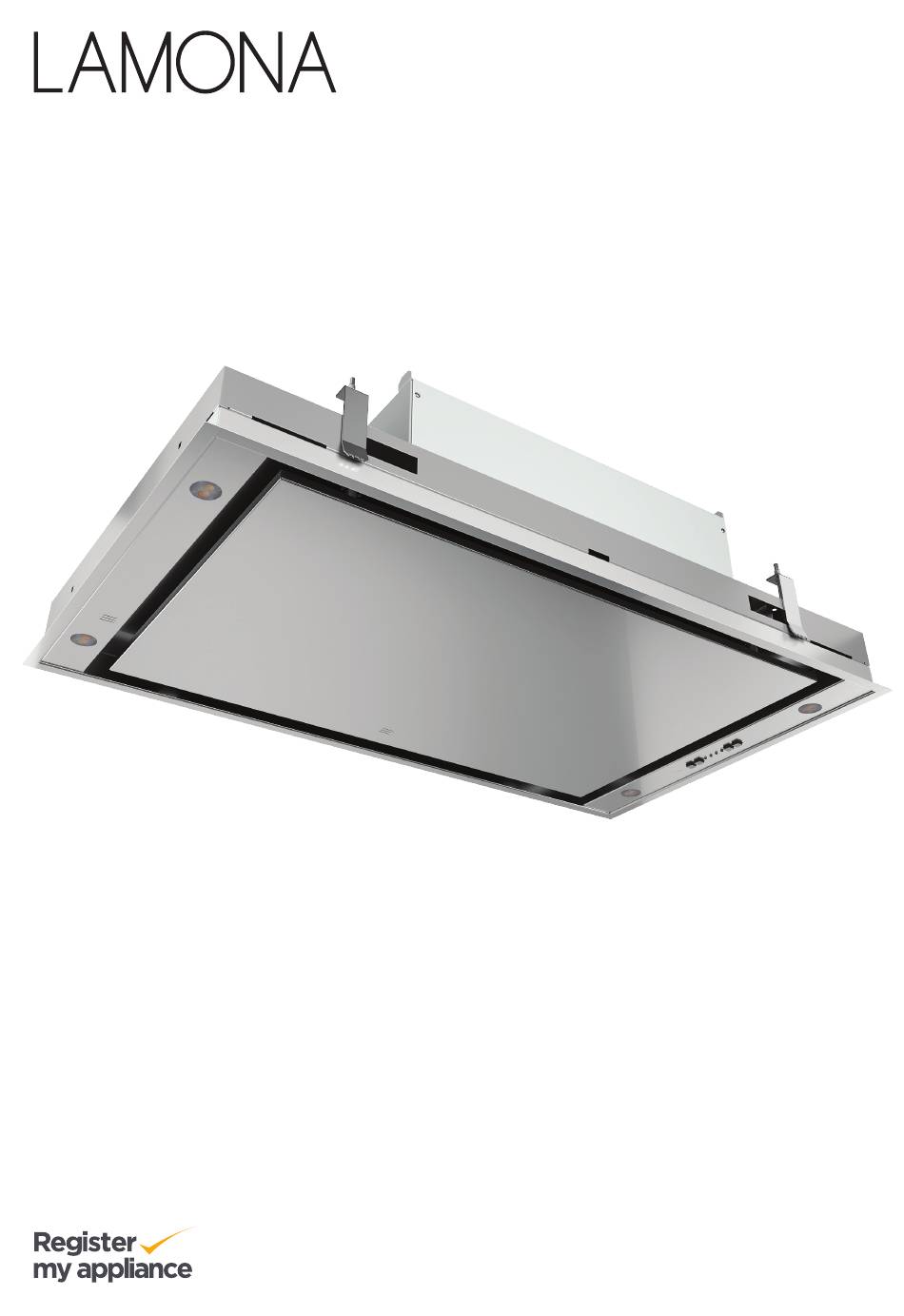

90cm Ceiling Cooker Hood
LAM2951 (Compact Motor)
l Please read the installation instructions to ensure safe fitting and use of the appliance.
l The appliance should be fitted by a suitably competent and qualified person.
l Please keep these instructions in a safe place for future reference.
l Danger of suffocation, keep packaging material away from children.
Installation Instructions
ISSUE v1.0 060525
www.howdens.com/appliance-registration
Advertisement
Table of Contents
Related Manuals for Lamona LAM2951
Summary of Contents for Lamona LAM2951
- Page 1 At the heart of the kitchen 90cm Ceiling Cooker Hood LAM2951 (Compact Motor) l Please read the installation instructions to ensure safe fitting and use of the appliance. l The appliance should be fitted by a suitably competent and qualified person.
- Page 2 Installation Instructions www.howdens.com...
-
Page 3: Table Of Contents
Installation Instructions Contents Warning and Safety Information ....p.4 Dismantling the ceiling unit .....p.14 Caring for the environment . -
Page 4: Warning And Safety Information
Installation Instructions Warning and Safety Information Ensure packaging 2 Person lift Beware of sharp metal Be aware of the instability & transit protectors edges. Use gloves when handling. of the appliance prior to have been removed being fitted into position. before installing. - Page 5 Installation Instructions Warning and Safety Information Please read these instructions carefully. The manufacturer is not responsible if an incorrect installation and use causes injuries and/or damage. Always keep these instructions with the appliance for future reference. Please take appropriate care when installing, maintaining, cleaning and operating this appliance. Correct application Safety for children and vulnerable people •...
-
Page 6: Caring For The Environment
If in any doubt, please have the wiring system `The electrical socket must of the building tested by a qualified electrician. be easily accessible LAMONA cannot be held liable for the after installation so consequences of an inadequate earthing system that the machine can (e.g. -
Page 7: Important Installation Information
Installation Instructions IMPORTANT installation information Install with the control panel on the right side of the user so that the bottom panel opens away from you you. This allows filter(s) to be easily removed. Install with control panel on the right side. The ceiling unit can be built into plates with a thickness of 18-35mm. -
Page 8: Installation Considerations
Installation Instructions Installation considerations Methods of extraction The very best method of clearing the kitchen of unwanted odours is by connecting the appliance to an exhaust duct and venting to the outside atmosphere via the ceiling or an exterior wall. Suitable ducting kits may be purchased from your local Howdens depot or online. -
Page 9: Components
Installation Instructions Components Part identification • On opening the packaging, remove and identify each component part. • Carefully place each part on a clean, scratch-free surface. • Do not scratch the finished surfaces. Optional remote control (LAM2075) Motor Unit Outlet Power cable Clamping screws and clamps (x4) -
Page 10: Product Dimensions & Minimum Distances
Installation Instructions Product dimensions and minimum distances External dimensions (mm) 199.5 199.5 18—35 Minimum and maximum hob distances Please check these minimum distances. These are necessary for correct installation of the appliance. Extractor Minimum / Maximum distance GAS: 650mm / 1600( (min) Elec: 600mm / 1600(... -
Page 11: Installation
Installation Instructions Installation Make a cut-out opening Note: Suitable framework may be required. Do not mount into plasterboard. 845mm 485mm The cut-out should be sealed The structure should be using PVA or suitable varnish. strong enough to support the appliance weight. Attach connection piece (if using flexible ducting) Exclusive to Howdens... -
Page 12: Changing Exhaust Direction Horizontally
Installation Instructions Installation (continued) Changing the exhaust direction HORIZONTALLY Open the bottom panel and remove the filters from the ceiling unit. Loosen/remove the 4 screws (next to the protective grid) using a torx screwdriver. Turn the motor with the exhaust into the desired position and screw the motor back on using the 4 screws. -
Page 13: Installation Into Ceiling
Installation Instructions Installation (continued) Installation into ceiling Keep the exhaust duct long enough Ensure the cooker hood is so that it can be reconnected after disconnected from mains disassembly. electricity supply. Ensure the plug is removed from the mains socket. Connect the exhaust duct onto the connection nozzle of the motor using aluminium tape. -
Page 14: Dismantling The Ceiling Unit
Installation Instructions Dismantling the ceiling unit Prepare the environment Before dismantling, protect the hob with, for example, cardboard or cloth in case a screw or clamp falls down. Perform the following actions only when the power is off at the wall socket. To remove the cooker hood, the 4 clamping screws have to be fully loosened. -
Page 15: Electrical Connections
Installation Instructions Electrical connections IMPORTANT: The wires in the mains lead are Important: Ensure that the electricity supply is coloured in accordance with the following code: switched off before connecting. When fitting in recirculation mode (with carbon filters), ensure the cable is shortened and Blue - Neutral securely held in place;... -
Page 16: Trouble Shooting
Installation Instructions Trouble shooting What might be the cause of...? Check that the grease filters and carbon filters (if vented internally) are fitted correctly. Excessive noise: Airflow noises in the extractor ducting have a stronger impact on noise levels than the cooker hood itself. -
Page 17: Technical Specification
Installation Instructions Technical specification TECHNICAL INFORMATION: The data plate on the side of the appliance states the total load when connected, the required voltage and frequency. General Product LAM2951 Total power consumption 117W Fuse 10 Amp Voltage / Frequency 220-240V 50 Hz Cable type / section 3 core 0.75mm... - Page 18 Installation Instructions Appendix A • Condensation may arise as a result of temperature differences if the extraction duct passes through cool rooms. Ensure the extraction duct is insulated. • In case of an exhaust pipe through the outside wall passing a cavity wall, make sure that the exhaust duct fully bridges the cavity and slightly declines to the outside.
- Page 19 Installation Instructions Notes Exclusive to Howdens...
- Page 20 Product serial number (Place sticker here) REPRISE À DÉPOSER À DÉPOSER À LA LIVRAISON EN MAGASIN EN DÉCHÈTERIE Cet appareil se recycle Points de collecte sur www.quefairedemesdechets.fr Privilégiez la répara�on ou le don de votre appareil! Product information correct at the time of publication in May 2025. The company has a policy of continuous product development and Howden Joinery Ltd.
