Medeli MZ923 Setup Manual

Cymbal Pad
Crash x 2
Hi-hat Crash 1 / Crash 2 Ride
Kick Kick Pedal
Kick Pad Kick Pedal Beater
Drum Stand
[ E ]
[ F ]
[ G ]
[ A ] [ B ] [ C ] [ D ] [ H ]
Pillar Pipe Cymbal Holder x 3
6

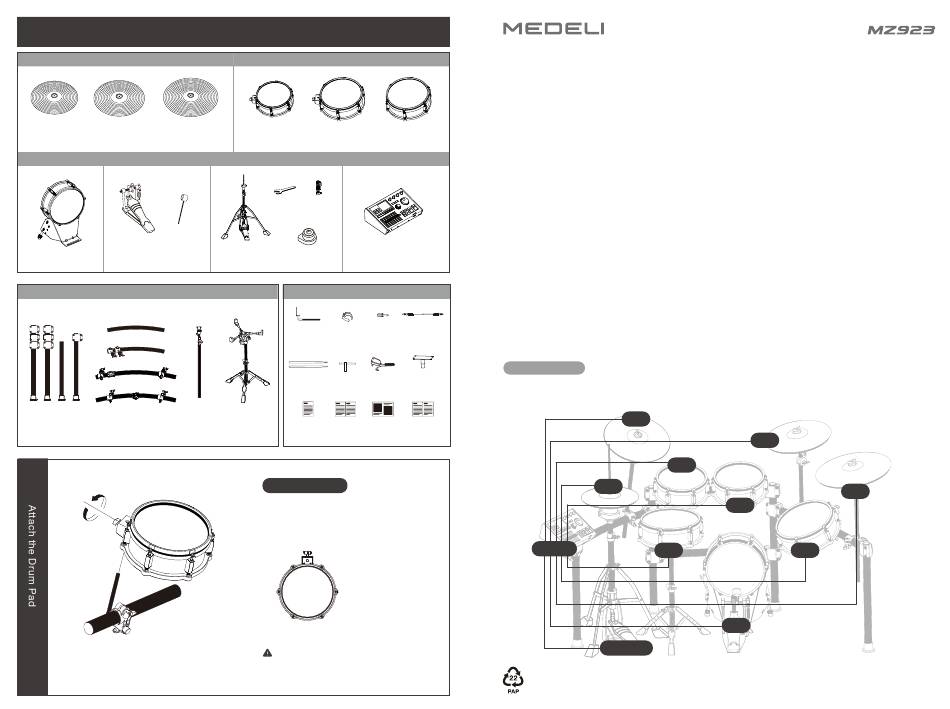

Packing List
Drum Pad
Tom x 2
Tom 1 / Tom 2 Tom 3
Hi-hat Stand Module
Hex Key x 2 Clutch
Hi-hat Stand Real Hi-hat Control Drum Module
Accessory
L-rod Holder Cable Clip Hand Bolt
x 3 x 6 x 4
Drumsticks Drum Key AC Adaptor
Snare Stand Warranty Owner's Setup Guide
Card Manual (this document)
Adjust the Head Tension
Please adjust the head tension before you start to perform. By adjusting the
head tension, you can make the pad respond to your strikes, just like playing an
acoustic drum.
1. Follow the order indicated in the image. Turn each tension bolt around the
head little by little.
2. Adjust the tightness of each bolt so as to make the pad tension even.
2 4
5 6
3 1
Notes:
1. Always adjust each tension bolt little by little. Turning a bolt too much at
one step will result in uneven head tension.
2. The head tension may change after using for some time. Please adjust
the head tension whenever it is necessary
Snare
Connection
Cable
Connect the Pads
Drum Module
Holder
Owner's Manual
(Hi-hat)
Module
Setup Guide
Crash 1
Crash 2
Tom 1
Hi-hat
Tom 2
Snare
Kick
Hi-hat Control
Ride
Tom 3
MZ923_SG02EN
