Operating Manual
1
Safety instructions
1.1
Proper use
Any improper use, intervention in the design and deviation from the design data automatically lead to termination of the
warranty. The fl oat-controlled condensate trap is designed for the discharge of condensate from steam, compressed air and
pressure gas systems. Any other usage is not permitted. The manufacturer is not liable for damage resulting from any other
usage. The user or operator bears the risk in this case. This also applies analogously to incorrect assembly, start-up, use and
maintenance.
1.2
Warnings and symbols
■ Personal risk due to escaping operating medium because of pressure, temperature and weight. Failure to comply with
these warnings results in the risk of accidents.
■ Follow the instructions in this operating manual.
■ The operator must ensure that this operating manual and, if necessary, other relevant documents are available on site.
■ Only trained or instructed personnel may be assigned to handling this equipment.
■ Any mode of operation that may impair safety must be avoided.
2
General description and usage
2.1
Design of the condensate trap

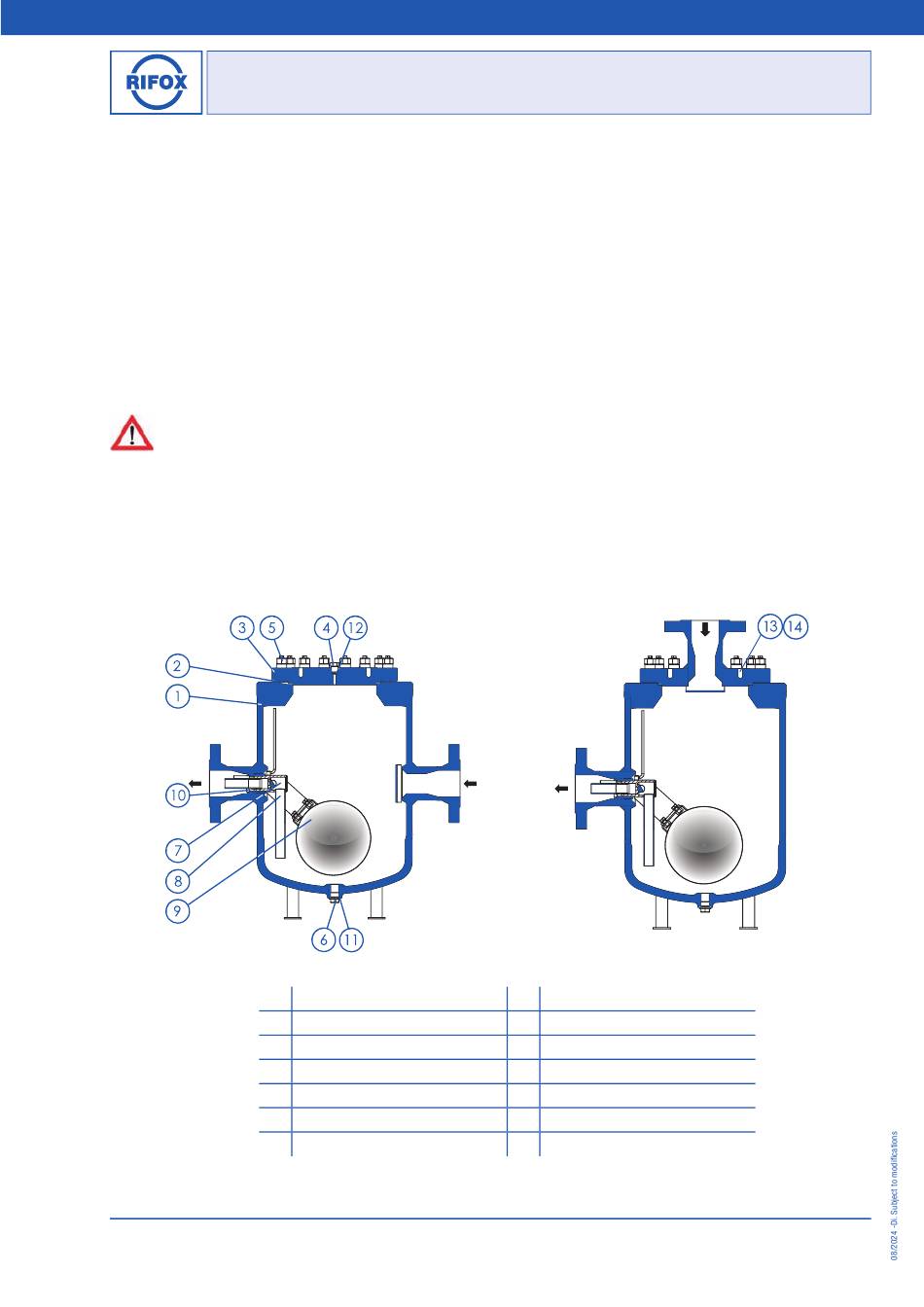

Picture 1: Model WO-1413
1
2
3
4
5
6
7
RIFOX - Hans Richter GmbH Spezialarmaturen
Bertha-von-Suttner-Str. 9
Model: 1413
Model: 1418
Float-Controlled Condensate Trap, PN 100
Housing
Housing gasket
Housing cover
Control screw
Housing screws
Screw plug
Float control assembly
Fon: +49 (0) 421 499 75 - 0
D-28207 Bremen Fax: +49 (0) 421 499 75 - 40
Picture 2: Model EF-1418
Supporting body assembly
8
Float
9
10
Holding screw for fl oat control assembly
11
Gasket
12
Gasket
13
Control screw
14
Gasket
Internet: www.rifox.de
Email: contact@rifox.de
Page 1 of 6
Advertisement
Related Manuals for Rifox 1413
Summary of Contents for Rifox 1413
- Page 1 Screw plug Control screw Float control assembly Gasket Page 1 of 6 RIFOX - Hans Richter GmbH Spezialarmaturen Fon: +49 (0) 421 499 75 - 0 Internet: www.rifox.de Bertha-von-Suttner-Str. 9 D-28207 Bremen Fax: +49 (0) 421 499 75 - 40...
- Page 2 (pressure compen- sation). For this purpose the control screw (4) in models 1413 can be replaced by a cutting ring union and a compensating line leading upward can be installed.
- Page 3 ■ In the case of steam applications, automatic venting must be provided (vent jet). Gastight under-level float control (only for gas applications) ■ For gas applications, a gastight under-level float control is nearly exclusively used. Consult with Rifox, if necessary. Assembly ■...
- Page 4 ■ Check the rotary valve (v) for wear along the sealing edge. If wear is detected, the support body (b) together with the rotary valve (v) must be replaced. The thorough leakage test must be carried out by RIFOX. ■ During assembly ensure that the notch in the rotary valve (v) points to the punch mark on the support body (b) and the cotter pin (p) is inserted and secured again carefully.
- Page 5 Only original spare parts can be used. Picture 7: Model WO-1413 Picture 8: Model EF-1418 Page 5 of 6 RIFOX - Hans Richter GmbH Spezialarmaturen Fon: +49 (0) 421 499 75 - 0 Internet: www.rifox.de Bertha-von-Suttner-Str. 9 D-28207 Bremen Fax: +49 (0) 421 499 75 - 40...
- Page 6 A detailed declaration of conformity assessment according to PED is available as separate document. Please request if necessary, if not attached. Model 1413/1418 made of 16Mo3 is not applicable for media of fluid group 1. Page 6 of 6 RIFOX - Hans Richter GmbH Spezialarmaturen Fon: +49 (0) 421 499 75 - 0 Internet: www.rifox.de...
