Operating Manual
1
Safety instructions
1.1
Proper use
Any improper use, intervention in the design and deviation from the design data automatically lead to termination of the
warranty. The float-controlled condensate trap is designed for the discharge of condensate from steam, compressed air and
pressure gas systems. Any other usage is not permitted. The manufacturer is not liable for damage resulting from any other
usage. The user or operator bears the risk in this case. This also applies analogously to incorrect assembly, start-up, use and
maintenance.
1.2
Warnings and symbols
■ Personal risk due to escaping operating medium because of pressure, temperature and weight. Failure to comply with
these warnings results in the risk of accidents.
■ Follow the instructions in this operating manual.
■ The operator must ensure that this operating manual and, if necessary, other relevant documents are available on site.
■ Only trained or instructed personnel may be assigned to handling this equipment.
■ Any mode of operation that may impair safety must be avoided.
2
General description and usage
2.1
Design of the condensate trap
1
Housing cover
2
Housing gasket
3
Housing
Control screw
4
5
Gasket
Screw plug
6
Page 1 of 6
RIFOX - Hans Richter GmbH Spezialarmaturen
Bertha-von-Suttner-Str. 9
Model: 1013
Model: 1013-N
Model: 1018
Model: 1018-N
Float-Controlled Condensate Trap, PN 16

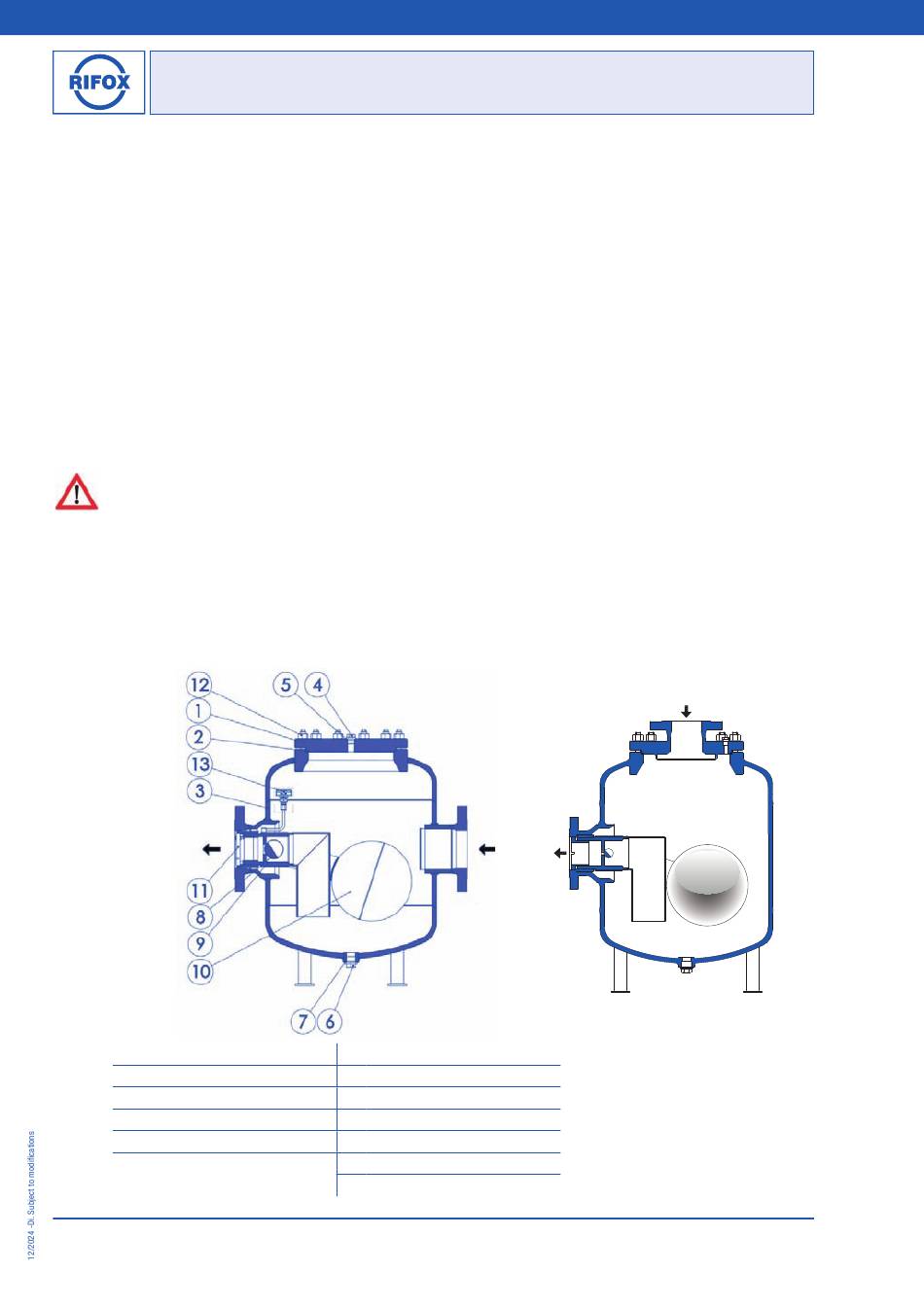

Picture 1: Model WO-1013
Model WO-1013-N
7
Gasket
8
Float control assembly
9
Supporting body assembly
Float
10
11
Holding screw for float control assembly
Housing screws
12
13
Capsule venting for screw in
Fon: +49 (0) 421 499 75 - 0
D-28207 Bremen Fax: +49 (0) 421 499 75 - 40
Picture 2: Model EF-1018
Model EF-1018-N
Internet: www.rifox.de
Email: contact@rifox.de
Advertisement
Table of Contents
Related Manuals for Rifox 1013
Summary of Contents for Rifox 1013
- Page 1 Screw plug Housing screws Capsule venting for screw in Page 1 of 6 RIFOX - Hans Richter GmbH Spezialarmaturen Fon: +49 (0) 421 499 75 - 0 Internet: www.rifox.de Bertha-von-Suttner-Str. 9 D-28207 Bremen Fax: +49 (0) 421 499 75 - 40...
-
Page 2: Automatic Venting
Operating Manual Operation limits of housing material (Design) For Model WO-1013 and EF-1018: max. operating pressure (bar g) 14,8 13,3 max. operating temperature (°C) -10/20 For Model WO-1013-N and EF-1018-N: max. operating pressure (bar g) 14,9 13,3 12,4 max. operating temperature (°C) Function limit of control unit (for all four models) max. -
Page 3: Maintenance / Inspection
■ To avoid downtimes, it is recommended to install stop valves with bypass to pipeline, both in front of and behind the condensate trap. ■ For the model WO-1013-(N), remove the transport sefety device (see Picture 5) before start-up and replace it with the control screw provided. - Page 4 ■ Check the rotary valve (v) for wear along the sealing edge. If wear is detected, the support body (b) together with the rotary valve (v) must be replaced. The thorough leakage test must be carried out by RIFOX. ■ During assembly ensure that the notch in the rotary valve (v) points to the punch mark on the support body (b) and the cotter pin (p) is inserted and secured again carefully.
-
Page 5: Care And Maintenance
EF-1018 / EF-1018-N (G1/4“) screw plug (G3/4“) Housing screw M12 Page 5 of 6 RIFOX - Hans Richter GmbH Spezialarmaturen Fon: +49 (0) 421 499 75 - 0 Internet: www.rifox.de Bertha-von-Suttner-Str. 9 D-28207 Bremen Fax: +49 (0) 421 499 75 - 40... -
Page 6: Spare Parts
A detailed declaration of conformity assessment according to PED is available as separate document. Please request if necessary, if not attached. Page 6 of 6 RIFOX - Hans Richter GmbH Spezialarmaturen Fon: +49 (0) 421 499 75 - 0 Internet: www.rifox.de Bertha-von-Suttner-Str.
