Operating Manual
1
Safety instructions
1.1
Proper use
Any improper use, intervention in the design and deviation from the design data automatically lead to termination of the
warranty. The fl oat-controlled condensate trap is designed for the discharge of condensate from steam, compressed air and
pressure gas systems. Any other usage is not permitted. The manufacturer is not liable for damage resulting from any other
usage. The user or operator bears the risk in this case. This also applies analogously to incorrect assembly, start-up, use and
maintenance.
1.2
Warnings and symbols
■ Personal risk due to escaping operating medium because of pressure, temperature and weight. Failure to comply with
these warnings results in the risk of accidents.
■ Follow the instructions in this operating manual.
■ The operator must ensure that this operating manual and, if necessary, other relevant documents are available on site.
■ Only trained or instructed personnel may be assigned to handling this equipment.
■ Any mode of operation that may impair safety must be avoided.
2
General description and usage
2.1

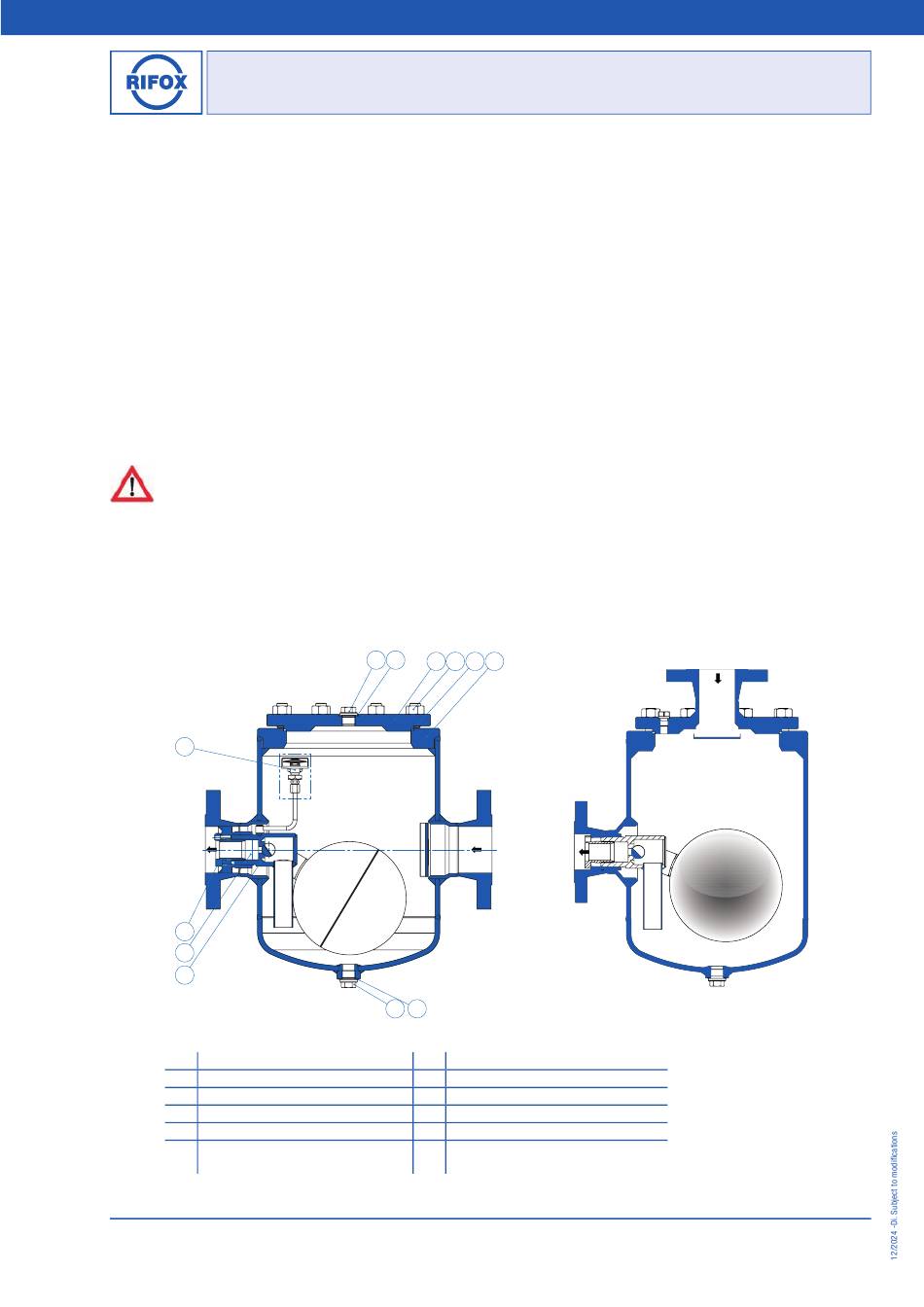

Design of the condensate trap
12
10
8
9
Housing cover
1
Housing gasket
2
Housing
3
4
Control screw
5
Gasket
6
Screw plug
Oben Links
278,5 20
RIFOX - Hans Richter GmbH Spezialarmaturen
Bertha-von-Suttner-Str. 9
Float-Controlled Condensate Trap, PN 25
4 5
6
Picture 1: Model WO-1111
Model WO-1111-N
D-28207 Bremen Fax: +49 (0) 421 499 75 - 40
Model: 1111
Model: 1111-N
Model: 1112
Model: 1112-N
1
11
2 3
7
Gasket
7
Float control assembly
8
Supporting body assembly
9
10
Holding screw for fl oat control assembly
11
Housing screws
Capsule venting for screw in
12
(only for steam application)
Fon: +49 (0) 421 499 75 - 0
Picture 2: Model EF-1112
Model EF-1112-N
Internet: www.rifox.de
Email: contact@rifox.de
Breite: 1
Höhe:8,
Page 1 of 6
Advertisement
Table of Contents
Related Manuals for Rifox 1111-N
Summary of Contents for Rifox 1111-N
- Page 1 Oben Links Breite: 1 278,5 20 Höhe:8, Page 1 of 6 RIFOX - Hans Richter GmbH Spezialarmaturen Fon: +49 (0) 421 499 75 - 0 Internet: www.rifox.de Bertha-von-Suttner-Str. 9 D-28207 Bremen Fax: +49 (0) 421 499 75 - 40 Email: contact@rifox.de...
-
Page 2: Automatic Venting
■ In the case of steam applications, automatic venting must be provided (vent jet). Gastight under-level fl oat control (only for gas applications) ■ For gas applications, a gastight under-level fl oat control is nearly exclusively used. Consult with Rifox, if necessary. Oben Links... -
Page 3: Maintenance / Inspection
■ Remove fl oat control unit (8) through the cover opening. Picture 6 278,5 20 Höhe:8, Page 3 of 6 RIFOX - Hans Richter GmbH Spezialarmaturen Fon: +49 (0) 421 499 75 - 0 Internet: www.rifox.de Bertha-von-Suttner-Str. 9 D-28207 Bremen Fax: +49 (0) 421 499 75 - 40... - Page 4 ■ Check the rotary valve (v) for wear along the sealing edge. If wear is detected, the support body (b) together with the rotary valve (v) must be replaced. The thorough leakage test must be carried out by Rifox. ■ During assembly ensure that the notch in the rotary valve (v) points to the punch mark on the support body (b) and the cotter pin (p) is inserted and secured again carefully.
-
Page 5: Care And Maintenance
Position Part Name Tightening Torque (Nm) acc. to gasket material soft iron PTFE-Special PTFE-Special 1.4571 Control screw for WO-1111 and WO-1111-N, G1/2” Control screw for EF-1112 and EF-1112-N, G1/4” Screw plug without gasket Holding screw Housing screw Spare parts Only original spare parts can be used. -
Page 6: Conformity Assessment
Oben Links Breite: 170 278,5 20 Höhe:8,15 Page 6 of 6 RIFOX - Hans Richter GmbH Spezialarmaturen Fon: +49 (0) 421 499 75 - 0 Internet: www.rifox.de Bertha-von-Suttner-Str. 9 D-28207 Bremen Fax: +49 (0) 421 499 75 - 40 Email: contact@rifox.de...
