Operating Manual
1
Safety instructions
1.1
Proper use
Any improper use, intervention in the design and deviation from the design data automatically lead to termination of the
warranty. The fl oat-controlled condensate trap is designed for the discharge of condensate from steam, compressed air and
pressure gas systems. Any other usage is not permitted. The manufacturer is not liable for damage resulting from any other
usage. The user or operator bears the risk in this case. This also applies analogously to incorrect assembly, start-up, use and
maintenance.
1.2
Warnings and symbols
■ Personal risk due to escaping operating medium because of pressure, temperature and weight. Failure to comply with
these warnings results in the risk of accidents.
■ Follow the instructions in this operating manual.
■ The operator must ensure that this operating manual and, if necessary, other relevant documents are available on site.
■ Only trained or instructed personnel may be assigned to handling this equipment.
■ Any mode of operation that may impair safety must be avoided.
2
General description and usage
2.1
Design of the condensate trap

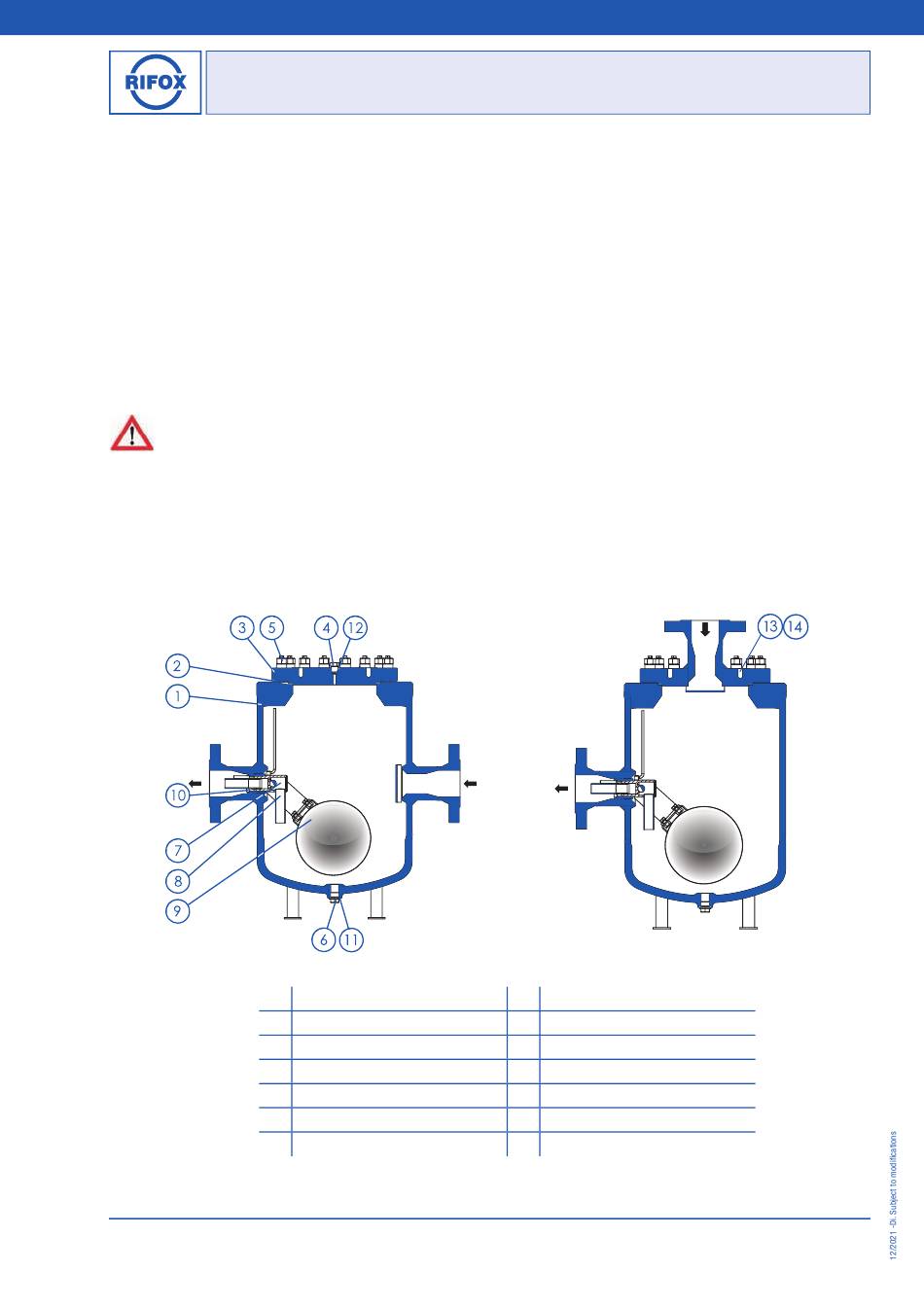

Picture 1: Model WO-1313-N
1
2
3
4
5
6
7
RIFOX - Hans Richter GmbH Spezialarmaturen
Bertha-von-Suttner-Str. 9
Model: 1313-N
Model: 1318-N
Float-Controlled Condensate Trap, PN 63
Housing
Housing gasket
Housing cover
Control screw
Housing screws
Screw plug
Float control assembly
Fon: +49 (0) 421 499 75 - 0
D-28207 Bremen Fax: +49 (0) 421 499 75 - 40
Picture 2: Model EF-1318-N
Supporting body assembly
8
Float
9
10
Holding screw for fl oat control assembly
11
Gasket
12
Gasket
13
Control screw
14
Gasket
Internet: www.rifox.de
Email: contact@rifox.de
Page 1 of 5
Advertisement
Table of Contents
Related Manuals for Rifox 1313-N
Summary of Contents for Rifox 1313-N
- Page 1 Screw plug Control screw Float control assembly Gasket Page 1 of 5 RIFOX - Hans Richter GmbH Spezialarmaturen Fon: +49 (0) 421 499 75 - 0 Internet: www.rifox.de Bertha-von-Suttner-Str. 9 D-28207 Bremen Fax: +49 (0) 421 499 75 - 40...
- Page 2 (pressure compen- sation). For this purpose the control screw (4) in models 1313-N can be replaced by a cutting ring union and a compensating line leading upward can be installed.
- Page 3 (3-4 turns), the bushing is screwed out of the control support body (8). The control is detached from the seat cone by means of gentle blows with a hammer on the front end of centering aid. Page 3 of 5 RIFOX - Hans Richter GmbH Spezialarmaturen Fon: +49 (0) 421 499 75 - 0 Internet: www.rifox.de Bertha-von-Suttner-Str.
- Page 4 ■ Check the rotary valve (v) for wear along the sealing edge. If wear is detected, the support body (b) together with the rotary valve (v) must be replaced. The thorough leakage test must be carried out by RIFOX. ■ During assembly ensure that the notch in the rotary valve (v) points to the punch mark on the support body (b) and the cotter pin (p) is inserted and secured again carefully.
- Page 5 A detailed declaration of conformity assessment according to PED is available as separate document. Please request if necessary, if not attached. Page 5 of 5 RIFOX - Hans Richter GmbH Spezialarmaturen Fon: +49 (0) 421 499 75 - 0 Internet: www.rifox.de Bertha-von-Suttner-Str.
