GE ApexPro Service Manual

GE ApexPro Service Manual

Telemetry transmitter
Hide thumbs Also See for ApexPro:

Advertisement

Quick Links

Download this manual
™
ApexPro
Telemetry Transmitter

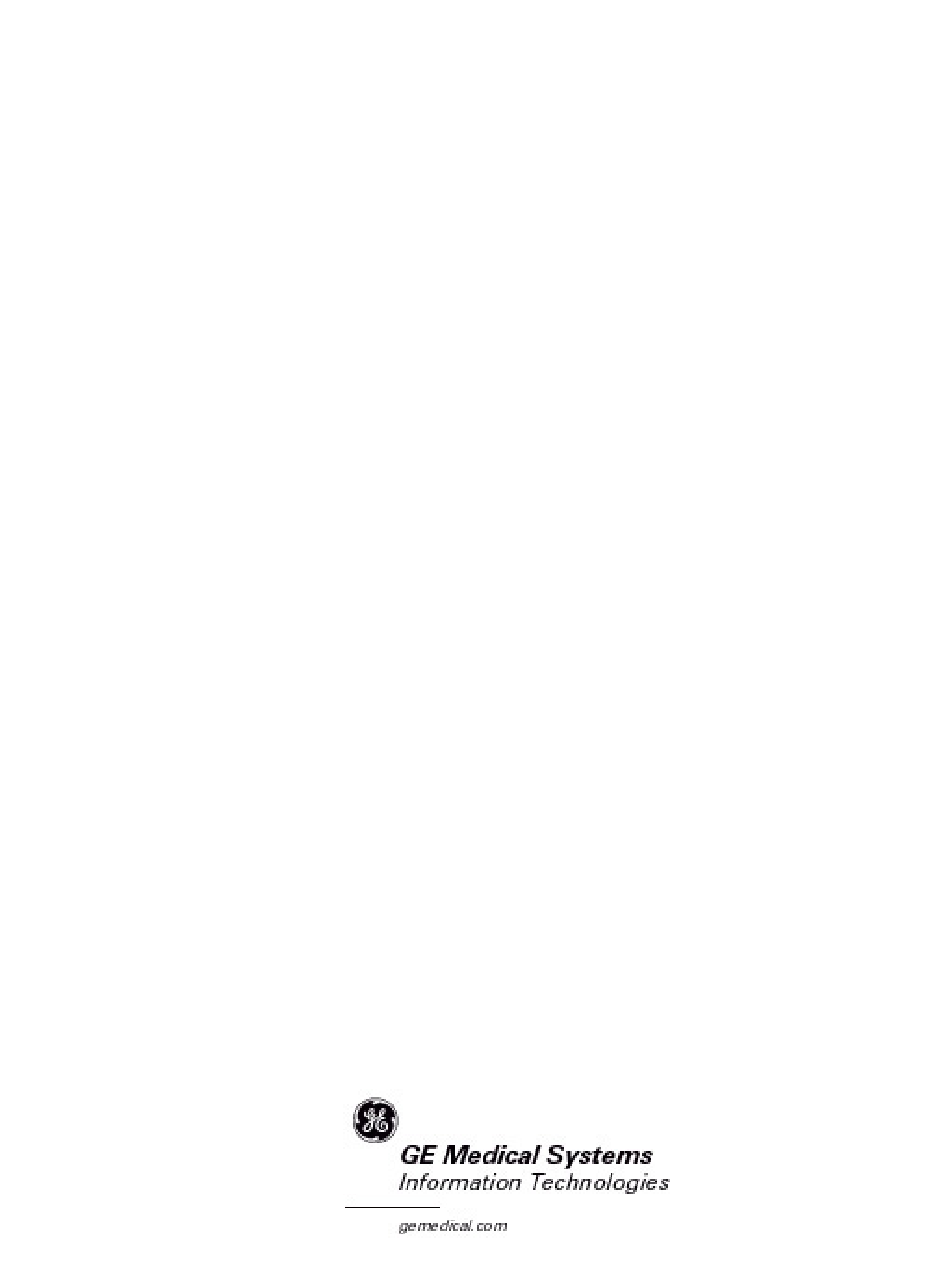

Service Manual
for ApexPro and ApexPro CH Transmitters
(Includes Accutracker DX and Nonin Xpod Oximeters)
2001989-142
Revision A

Advertisement

loading
Need help?

Need help?

Do you have a question about the ApexPro and is the answer not in the manual?

Questions and answers

Related Manuals for GE ApexPro

Summary of Contents for GE ApexPro

  • Page 1 ™ ApexPro Telemetry Transmitter Service Manual for ApexPro and ApexPro CH Transmitters (Includes Accutracker DX and Nonin Xpod Oximeters) 2001989-142 Revision A...
  • Page 2 NOTE: The information in this manual only applies to ApexPro and ApexPro CH Transmitters software version 3A for the ApexPro model and to software version 1A for the ApexPro CH model. It does not apply to earlier software versions. Due to continuing product innovation, specifications in this manual are subject to change without notice.
  • Page 3 ApexPro Transmitters ..........2-3 ApexPro Transmitter Battery Installation ....... . 2-4 Battery Functional Life .
  • Page 4 Technical Specifications ..........2-21 ApexPro and ApexPro CH Transmitter ....... . 2-21 Apex Oximeter .
  • Page 5 Repair Log ............4-27 Revision A ApexPro Telemetry Transmitters 2001989-142...
  • Page 6 Interfaces - ApexPro and ApexPro CH ....... . . 6-6...
  • Page 7 ApexPro CH Transmitter Parts List ........
  • Page 8 600MHz TTX Frequency Chart ........8-21 ApexPro (Type B devices) TTX Frequency Chart ......8-35...
  • Page 9 Introduction Revision A ApexPro Telemetry Transmitters 2001989-142...
  • Page 10 For your notes ApexPro Telemetry Transmitters Revision A 2001989-142...
  • Page 11 This manual provides technical information for service representatives and technical personnel involved in maintaining the ApexPro and ApexPro CH transmitter and GE equipment that connects to the transmitter. Users of this manual are expected to have a background in electronics, including analog and digital circuitry, RF, and microprocessor architectures.
  • Page 12 GE Medical Systems Information Technologies is responsible for the effects of safety, reliability, and performance only if: assembly operations, extensions, readjustments, modifications, or repairs are carried out by persons authorized by GE Medical Systems Information Technologies; the electrical installation of the relevant room complies with the requirements of the appropriate regulations;...
  • Page 13 The rating of protection against electric shock (indicated by symbol for CF) is achieved only when used with patient applied parts recommended by GE Medical Systems Information Technologies. Type B applied part: Non-isolated applied part suitable for intentional external and internal application to the patient excluding direct cardiac application.
  • Page 14 NOTE provides application tips or other useful information to assure that you get the most from your equipment. ApexPro Telemetry Transmitters Revision A 2001989-142...
  • Page 15 See “How to Reach Us” in the front of this manual. Any unauthorized attempt to repair equipment under warranty voids that warranty. It is the user’s responsibility to report the need for service to GE Medical Systems Information Technologies or to one of their authorized agents.
  • Page 16 Introduction: Service Information For your notes ApexPro Telemetry Transmitters Revision A 2001989-142...
  • Page 17 Equipment Overview Revision A ApexPro Telemetry Transmitters 2001989-142...
  • Page 18 For your notes ApexPro Telemetry Transmitters Revision A 2001989-142...
  • Page 19 Equipment Overview: ApexPro Transmitters ApexPro Transmitters The ApexPro transmitter sends the patient’s ECG data to the ApexPro receiver system for processing. Data is then transmitted via a dedicated Ethernet interface to the Clinical Information Center (CIC) for viewing.  The transmitter can also send DINAMAP PRO data to the CIC via the DinaLink...
  • Page 20 220A Figure 2-3 Proper Transmitter Battery Orientation 4. Close the battery cover. NOTE When the Change Battery LED starts flashing, the ApexPro transmitter has approximately one hour of reserve power before the unit shuts down. ApexPro Telemetry Transmitters Revision A...
  • Page 21 Equipment Overview: ApexPro Transmitters Battery Functional Life The ApexPro transmitter runs on 2 AA batteries. For the ApexPro transmitter, the battery life is approximately 40 hours. For the ApexPro CH transmitter, the battery life is approximately 120 hours. For optimum performance, follow these guidelines:...
  • Page 22 Equipment Overview: ApexPro Transmitters 317A 420B Figure 2-4 ApexPro Transmitter Controls and Indicators ApexPro Telemetry Transmitters Revision A 2001989-142...
  • Page 23 Equipment Overview: ApexPro Transmitters 317A 432A Figure 2-5 ApexPro CH Transmitter Controls and Indicators Ref. Term Description RA LED Used in troubleshooting (“Frequent Lead Fail” on page 5-3) and when manually viewing or programming the TTX number (“Manually View/Program TTX”...
  • Page 24 Location for attaching the set of dust covers. Dust Covers ApexPro transmitters have a set of 2 dust covers, used when the interface connectors are not being used. Markings on the covers indicate the number of the interface connector port. (Not shown in Figure 2-5.)
  • Page 25 A small picture indicating the battery orientation is molded into the case as well. Transmitter Appearance ApexPro transmitters have two user buttons: Verify Leads and Graph. They have a white endcap on the end opposite the battery compartment cover. The ApexPro CH transmitters have three user buttons: Verify Leads, Graph, and Event Marker.
  • Page 26 All LEDs flash slowly twice. Indicates that all LEDs are functional. Refer to the ApexPro Telemetry System Operator’s Manual for further details on transmitter operation and leadwire installation. Transmitter Versions The versions of ApexPro and ApexPro CH transmitters are:...
  • Page 27 DINAMAP PRO Series Monitors The DINAMAP PRO 100, 200, 300, and 400 series monitors can be connected to the ApexPro transmitter using the DinaLink serial cable to monitor SpO , NBP, and temperature. Parameter data from the PRO 100–400 series monitors is displayed, trended, and stored at the CIC.
  • Page 28 Equipment Overview: SpO Oximeter Modules Oximeter Modules The oximeter is an optional module that, when connected to the ApexPro transmitter, allows telemetry monitoring of a patient’s pulse oximetry data. The oximeter must be connected to an ApexPro transmitter in order to convey SpO data to the Clinical Information Center (CIC).
  • Page 29 To function correctly, the Apex Oximeter must be connected to a pulse oximetry (SpO ) probe. To transmit data to the Clinical Information Center, the Apex Oximeter must also be connected to the ApexPro transmitter. These connections are illustrated in Figure 7-30.
  • Page 30 Equipment Overview: SpO Oximeter Modules When properly interconnected, the Apex Oximeter and the ApexPro transmitter should appear similar to Figure 2-8. Interconnection cable INTFC connector INTFC connector 400B Figure 2-8 Oximeter Connection to Transmitter Apex Oximeter Controls and Indicators Digital Display...
  • Page 31 ApexPro transmitter. The expected life of fully-charged batteries in the ApexPro transmitter reduces to 30 hours if an oximeter is connected to it. For the ApexPro CH transmitter, the expected life of batteries reduces to 50 hours. Revision A...
  • Page 32 Use only Nonin SpO probes with the oximeter. The reliability of SpO data obtained with any other probe has not been verified. When properly interconnected, the ApexPro transmitter, the Nonin Xpod oximeter, and the Nonin SpO probe appears similar to Figure 2-10.
  • Page 33 Monitor NOTE The Accutracker DX noninvasive blood pressure monitor is available in the United States only. This model, available from GE, is modified by SunTech Medical Instruments to operate with the ApexPro Telemetry System. The Accutracker DX noninvasive blood pressure monitor is an optional module that, when connected to the ApexPro transmitter, allows telemetry monitoring of a patient’s NBP data.
  • Page 34 The life of the internal lithium battery is a cumulative 9-month period, spanning the entire life of the blood pressure monitor. GE recommends that the lithium battery be serviced every three to five years. The 4 AA batteries last for approximately 250 blood pressure readings, taken at an average interval of 15 minutes.
  • Page 35 The patient cable, microphone cable, and interconnection cable attach to one another in one assembly. Refer to Figure 2-12 below. 102A Microphone Cable Interconnection Cable Patient Cable 406A Patient Cable Microphone Cable Connection Connection Figure 2-12 Accutracker DX Connections Revision A ApexPro Telemetry Transmitters 2-19 2001989-142...
  • Page 36 Equipment Overview: Interconnection Cables Interconnection Cables Apex Oximeter and Accutracker DX The interconnection cable used to connect the ApexPro transmitter with the Apex Oximeter and/or the Accutracker DX blood pressure monitor, and/or the DinaLink serial cable is shown in Figure 2-13.
  • Page 37 Equipment Overview: Technical Specifications Technical Specifications Below are the technical specifications for the ApexPro telemetry system. NOTE Due to continual product innovation, GE Medical Systems Information Technologies designs and specifications are subject to change without notice. Contact your sales/service office for the most current information.
  • Page 38 Equipment Overview: Technical Specifications ApexPro CH model: GFSK Bit rate: 10 kb/sec Antenna: Formed by leadwire shield Frequency range: ApexPro model: 420–460 MHz or 584–613.975 MHz (programmable synthesizer) (The frequency range depends on the PCB installed.) ApexPro CH model: 608.025–613.975 MHz...
  • Page 39 ApexPro model: 420-460 MHz 560.025 – 613.975 MHz – FCC Part 15 608.025 – 613.975 MHz – FCC Part 95 CE Marking ApexPro CH model: 608.025 – 613.975 MHz – FCC Part 95 CE Marking Revision A ApexPro Telemetry Transmitters...
  • Page 40 Equipment Overview: Technical Specifications Apex Oximeter The Apex Oximeter is manufactured for GE by Nonin Medical, Inc. It is recommended for use with Nonin sensors only. Performance Specifications Battery Type: ANSI/NEDA 15A, 1.5V AA alkaline (2 required) Battery Life: 30 hrs. typical with display on continuously; 60 hrs. typical with display off...
  • Page 41 Equipment Overview: Technical Specifications Nonin Xpod Oximeter The Nonin Xpod oximeter is manufactured for GE by Nonin Medical, Inc. It is recommended for use with Nonin sensors only. Performance Specifications Static withstand: Meets and exceeds IEC 61000-4-2 Shock withstand: 5 random drops from 4 ft onto tiled concrete floor...
  • Page 42 Over 250 samples per set of 4 new batteries. Sample periods: Manual and interval programmable. Intervals of 5, 6, 7, 8, 9, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 90, 120 or 240 minutes can be selected/programmed. 2-26 ApexPro Telemetry Transmitters Revision A 2001989-142...
  • Page 43 Weight: 357.2 g (12.6 oz) Certification UL2601 (Underwriters Laboratories, Inc.) Medical Equipment With respect to electric shock, fire and mechanical hazards only in accordance with UL 2601-1, and CAN/CSA C22.2 NO. 601.1 4P41 Revision A ApexPro Telemetry Transmitters 2-27 2001989-142...
  • Page 44 Equipment Overview: Technical Specifications For your notes 2-28 ApexPro Telemetry Transmitters Revision A 2001989-142...
  • Page 45 Installation Revision A ApexPro Telemetry Transmitters 2001989-142...
  • Page 46 For your notes ApexPro Telemetry Transmitters Revision A 2001989-142...
  • Page 47 Included with the ApexPro Program Device Kit is a CD containing software that is loaded onto the personal computer and executed. Also included with the kit are the Apex, ApexPro and ApexPro CH Transmitter Programming Instructions (PN 2001989-135), which provide detailed instructions for programming these transmitters.
  • Page 48 4-23 of the Maintenance chapter, when you receive the Accutracker and every 12 months thereafter. If the unit fails, return the unit to GE Medical Systems Information Technologies Service and Supplies. (See “How to Reach Us” in the front of this manual.)
  • Page 49 Maintenance Revision A ApexPro Telemetry Transmitters 2001989-142...
  • Page 50 For your notes ApexPro Telemetry Transmitters Revision A 2001989-142...
  • Page 51 “Checkout Procedure” on page 4-12. Recommended Frequency To help you establish a systematic maintenance routine, GE Medical Systems Information Technologies recommends that you perform all maintenance procedures presented in this chapter: upon receipt of the unit every twelve months thereafter...
  • Page 52 ApexPro User buttons Two: Verify Leads and Graph Port covers Gray interface connector port covers ApexPro CH User buttons Three: Verify Leads, Graph and Event Marker Port covers Blue interface connector port covers, label and endcap ApexPro Telemetry Transmitters Revision A...
  • Page 53 3. Verify that the data recorded on the TTX label on the back of the transmitter is accurate for the transmitter. CAUTION Make sure the TTX numbers match. Failure to do so may result in monitoring the wrong patient. Revision A ApexPro Telemetry Transmitters 2001989-142...
  • Page 54 Never use conductive solutions, solutions that contain chlorides, wax, or wax compounds. Never pour or spray water or any cleaning solution on the equipment. Never permit fluids to run behind switches, into the connectors, or into any ventilation openings in the equipment. ApexPro Telemetry Transmitters Revision A 2001989-142...
  • Page 55 Cleaning products known to cause the types of problems listed above include, but are not limited to, Sani-Cloth® wipes and Ascepti® wipes; these should be avoided. Products that contain active ingredients and solutions similar to these products should also be avoided. Revision A ApexPro Telemetry Transmitters 2001989-142...
  • Page 56 If any of the LEDs light up, re-dry the transmitter. Allow the transmitter to air dry if other methods are not effective. 6. Do not attach the transmitter to a patient until the transmitter is thoroughly dry. ApexPro Telemetry Transmitters Revision A 2001989-142...
  • Page 57 If any unexpected LEDs light up, re-dry the leadwire. Allow the leadwire to air dry if paper towel is not effective. g. Do not attach the leadwire to a patient until the leadwire is thoroughly dry. Revision A ApexPro Telemetry Transmitters 2001989-142...
  • Page 58 Periodic leakage current testing should be done on the combined power supply and end-use system on a yearly basis when used in a hospital environment where such test equipment is commonly available. 4-10 ApexPro Telemetry Transmitters Revision A 2001989-142...
  • Page 59 Transmitter Holder GE recommends storing the transmitter and leadwires in the optional transmitter holder (not pictured). This wall-mounted holder can store up to six ApexPro transmitters. The leadwires hang freely below the holder, minimizing the possibility of damage. Correct Storage If a transmitter holder is not available, wrap the leadwires around the transmitter, allowing the top of the leadwires to remain loose.
  • Page 60 Maintenance: Checkout Procedure Checkout Procedure This section describes a series of performance tests for these units: ApexPro transmitter ApexPro CH transmitter Apex Oximeter Nonin Xpod oximeter Accutracker DX NIBP Required Test Equipment The following equipment is required. ECG simulator New alkaline “AA” batteries and low-voltage batteries...
  • Page 61 RF output under a LEADS FAIL condition. Event Marker This test verifies the Event Marker feature. This feature is available only on the ApexPro CH transmitter. 1. Install batteries in the transmitter. 2. Press the Event Marker button. 3. At a Clinical Information Center, verify that the Event Marker message is displayed.
  • Page 62 For example, if using the HP ESA-L1500A spectrum analyzer, follow these steps: a. Press Amplitude. b. Press 10. Press –dBm. 5. Connect the transmitter with lead wires to a patient simulator as shown in Figure 4-15. 4-14 ApexPro Telemetry Transmitters Revision A 2001989-142...
  • Page 63 Press Trace. b. Press Max Hold A. 8. If the transmitter fails this test, it must be returned for service. (See “How to Reach Us” in the front of this manual.) Revision A ApexPro Telemetry Transmitters 4-15 2001989-142...
  • Page 64 4-14 except change the span to 1KHz. 2. To measure the center frequency of the ApexPro transmitter and ApexPro CH transmitter, use the manufacturing code. a. Short pins 2 and 4 on either one of the interface connector ports.
  • Page 65 “How to Reach Us” in the front of this manual.) 10. Remove the jumper from the interface connector port. When the jumper is removed, the transmitter resets and returns to normal operation mode. Revision A ApexPro Telemetry Transmitters 4-17 2001989-142...
  • Page 66 Any color other than yellow indicates a system problem unrelated to the transmitter. If this is the case, please contact GE Medical Systems Information Technologies Technical Services. 4. On the admitted beds (transmitters), observe the simultaneous ECG waveforms for signal integrity.
  • Page 67 (from the transmitter) are printed at the Clinical Information Center. 2. Press the Graph button. The Lead Status and Change Battery LEDs flash twice to acknowledge that the switch was pressed. 3. Verify that a graph run occurs at the printer. Revision A ApexPro Telemetry Transmitters 4-19 2001989-142...
  • Page 68 Event Marker This test verifies the Event Marker feature. This feature is available only on the ApexPro CH transmitter. 1. Install batteries in the transmitter. 2. Press the Event Marker button. 3. At a Clinical Information Center, verify that the Event Marker message is displayed.
  • Page 69 1 mV input. Completion If the transmitter fails any of the above tests, return it to the factory for service. (See “How to Reach Us” in the front of this manual.) Revision A ApexPro Telemetry Transmitters 4-21 2001989-142...
  • Page 70 Nonin Xpod oximeter 1. Record the oximeter’s serial number. 2. Connect the oximeter to the ApexPro transmitter. 3. Admit the transmitter to an ApexPro telemetry system. Make sure that the SpO parameter box comes up on the Clinical Information Center. If the oximeter fails, discontinue the test. Return the oximeter after double-checking the test setup.
  • Page 71 Maintenance: Checkout Procedure Accutracker DX NIBP Operational Tests NOTE If the Accutracker fails any test, return the unit to GE Medical Systems Information Technologies Service and Supplies. (See “How to Reach Us” in the front of this manual.) Accutracker Display Figure 4-18 shows the display of the Accutracker when you turn it on.
  • Page 72 Make sure no external pressure is applied to the Accutracker when you turn it on. 2. Apply a pressure of 285 mmHg (+/–20 mmHg) to the Accutracker. Valve #1 immediately opens and allows the applied pressure to release. 4-24 ApexPro Telemetry Transmitters Revision A 2001989-142...
  • Page 73 1. Attach the Accutracker to the ApexPro Telemetry system. NOTE You must have ECG leads with a shorting cable or simulator attached to the ApexPro Telemetry system for this test to work. CAUTION Refer to the operator’s manual for proper operation guidelines and cuff/microphone placement.
  • Page 74 (PM) form is no longer printed with this manual. For the latest PM form regarding this product, contact GE Medical Systems Information Technologies Service. If repairs/adjustments are made or you replace any parts, describe this in the area provided on the PM form.
  • Page 75 Maintenance: Repair Log Repair Log Unit Serial Number: Institution Name: Date Maintenance/Repair Technician Revision A ApexPro Telemetry Transmitters 4-27 2001989-142...
  • Page 76 Maintenance: Repair Log For your notes 4-28 ApexPro Telemetry Transmitters Revision A 2001989-142...
  • Page 77 Troubleshooting Revision A ApexPro Telemetry Transmitters 2001989-142...
  • Page 78 For your notes ApexPro Telemetry Transmitters Revision A 2001989-142...
  • Page 79 System Dropout If you suspect any ApexPro system-related dropout or if you are not sure what the problem is, consult the ApexPro System Troubleshooting Instructions, available to GE Medical Systems service personnel.
  • Page 80 Check the voltage levels of the batteries. This can be done using the ApexPro Program Device Kit (PN 421733-003 for ApexPro or PN 421733-004 for ApexPro CH.) If the voltage level is below the acceptable value as listed in “Switches/LEDs”...
  • Page 81 Synthesizer Lock Error If the transmitter can not operate at its programmed frequency, a synthesizer lock error occurs. This can be determined using the ApexPro Program Device Kit (PN 421733-003 for ApexPro or 421733-004 for ApexPro CH.) For the CH transmitter, the Change Battery and VA LEDs will be lit although the transmitter halts operation.
  • Page 82 If, after working through the above steps, your oximeter still has a short battery life, a call for service may be necessary. ApexPro Telemetry Transmitters Revision A 2001989-142...
  • Page 83 The results of these tests are indicated by the LEDs on the transmitter case. Test results may also be viewed on a remote terminal or personal computer if the ApexPro transmitter programming box is connected and in use.
  • Page 84 Support. Nonin Xpod Oximeter The oximeter does not contain a power supply, as it draws power from the ApexPro transmitter. Consequently, there is no power-up sequence. The unit only functions when connected to the telemetry system. Accutracker The Accutracker error codes are translated in the software to display on the system monitor.
  • Page 85 (the RF turns on for 70 seconds for Verify Leads button press, 15 seconds for the other buttons). If the transmitter is reporting a synthesizer lock error the VCO regulator will be turned off. Revision A ApexPro Telemetry Transmitters 2001989-142...
  • Page 86 Troubleshooting: Power Shutdown During Leads Fail For your notes 5-10 ApexPro Telemetry Transmitters Revision A 2001989-142...
  • Page 87 Transmitter Assembly Revision A ApexPro Telemetry Transmitters 2001989-142...
  • Page 88 For your notes ApexPro Telemetry Transmitters Revision A 2001989-142...
  • Page 89 Transmitter Assembly: Versions of the Assembly Versions of the Assembly There are several versions of the ApexPro telemetry transmitter assembly. These are listed in “Transmitter Versions” on page 2-10. Be sure to reference the correct parts list and exploded view in this chapter for your version of transmitter.
  • Page 90 Figure 6-21 Transmitter Assembly Block Diagram Main Components - ApexPro The main components of the ApexPro assembly include the populated transmitter board, flex board, gasket, switch label, and the identification labels. The populated board contains all of the active components and software.
  • Page 91 J2. This hole is covered up by one of the labels. Labels Labels on the transmitter are described in “ApexPro Transmitter Controls, Indicators and Labels” on page 2-5. Revision A ApexPro Telemetry Transmitters 2001989-142...
  • Page 92 The ECG data is acquired from the patient through a set of leadwires. The signals are then amplified, processed, and transmitted. For ApexPro CH transmitter, the top set of pins is the ECG signal lead. The bottom set of pins function as the signal lead shield connections.
  • Page 93 Upon any activation (Verify Leads, Graph, or Alarm Pause) the top row of LEDs flash twice. All these functions are disabled in service mode. When the battery voltage drops below 1.9 volts for ApexPro or 1.6 volts for ApexPro CH, the Change Battery LED flashes once every second at a 1/8 duty cycle.
  • Page 94 PC-based programming box software or a HyperTerminal program and a programming box. The version of the currently stored transmitter code can be displayed using the transmitter programming box software kit, PN 421733-003. See Apex, ApexPro and ApexPro CH Transmitter Programming Instructions (PN 2001989-135). Error Log The transmitter contains an error log in its non-volatile programmable memory.
  • Page 95 LED Test Pattern Write Manually View/Program TTX After initial programming of the TTX number using the ApexPro Program Device Kit described in “Programming the Transmitter for Use” on page 3-3, the transmitter frequency or TTX can be viewed or changed without a programming box.
  • Page 96 9. To exit service mode, remove the short from pins 2 and 4. The service program runs until the short is removed. Then the transmitter reloads the application code and continues to run normally at the new TTX number. 6-10 ApexPro Telemetry Transmitters Revision A 2001989-142...
  • Page 97 Transmitter Assembly: Theory of Operation Interconnect Cables The following table shows the interconnect cables used to connect the ApexPro transmitter with other devices. Device Part Number interconnect cable 2005512-003 Suntech Accutracker interconnect cable 2002370-001 DinaLink interconnect cable assembly 418497-002 Revision A...
  • Page 98 Transmitter Assembly: ApexPro Transmitter Parts ApexPro Transmitter Parts ApexPro parts depicted here are listed on pages 6-12 through 6-14. Figure 6-22 Transmitter Components, Exploded View - ApexPro 6-12 ApexPro Telemetry Transmitters Revision A 2001989-142...
  • Page 99 Transmitter Assembly: ApexPro Transmitter Parts List 418500-001K ApexPro Transmitter Parts List 418500-001K This list is for ApexPro transmitter (UHF for USA) at 584-614 MHz. Find Part Number Item Description 404525-001 LABEL BLANK 2 X 3/4 411508-002 SCREW METRIC PH M2 X 3 W/COAT...
  • Page 100 Transmitter Assembly: ApexPro Transmitter Parts List 418500-003E ApexPro Transmitter Parts List 418500-003E This list is for ApexPro transmitter (UHF for international) at 420-460 MHz. Find Part Number Item Description 404525-001 LABEL BLANK 2 X 3/4 411508-002 SCREW METRIC PH M2 X 3 W/COAT...
  • Page 101 Transmitter Assembly: ApexPro Transmitter Parts List 418500-005A ApexPro Transmitter Parts List 418500-005A This list is for ApexPro transmitter 420-460 MHz for Japan. Find Part Number Item Description 404525-001 LABEL BLANK 2 X 3/4 411508-002 SCREW METRIC PH M2 X 3 W/COAT...
  • Page 102 Transmitter Assembly: ApexPro CH Transmitter Parts List ApexPro CH Transmitter Parts List This list is for ApexPro CH transmitter (UHF for USA and Canada) at 608.025 - 613.975 MHz. NOTE The ApexPro CH transmitter has no internal field-replacable parts. Part Number...
  • Page 103 2002553-0XX Each of these kits is a full set of TTX labels. ApexPro Part Number Item Description 2002553-001 LABEL KIT APEXPRO TLMY TRANSMITTER ENG 2002553-002 LABEL KIT APEXPRO TLMY TRANSMITTER GER 2002553-003 LABEL KIT APEXPRO TLMY TRANSMITTER FRE 2002553-004 LABEL KIT APEXPRO TLMY TRANSMITTER SWE...
  • Page 104 Transmitter Assembly: Label Kits 2002553-0XX For your notes 6-18 ApexPro Telemetry Transmitters Revision A 2001989-142...
  • Page 105 Oximeter Assembly Revision A ApexPro Telemetry Transmitters 2001989-142...
  • Page 106 For your notes ApexPro Telemetry Transmitters Revision A 2001989-142...
  • Page 107 Versions of the Assembly There are two versions of the ApexPro Oximeter assembly and one version of the Nonin Xpod oximeter assembly. Make sure to reference the correct parts list and exploded view(s) for your version of the oximeter.
  • Page 108 = Pulse oximeter determined and displayed oxygen saturation in percent Hb = Fractional oxyhemoglobin saturation in percent COHb = Carboxyhemoglobin saturation in percent MetHb = Methemoglobin saturation in percent = Functional oxygen saturation in percent ApexPro Telemetry Transmitters Revision A 2001989-142...
  • Page 109 The sensors are checked for correct operation before shipping, so no adjustment or calibration is needed or possible. Because the pulse oximeter does all critical computations in software and there are no critical parts to drift; no re-calibration is needed. Revision A ApexPro Telemetry Transmitters 2001989-142...
  • Page 110 Label, Apex Oximeter, Back–Swedish 420283-004 Label, Apex Oximeter, Back–Spanish 420283-005 Label, Apex Oximeter, Back–Italian 420283-006 Label, Apex Oximeter, Back–Dutch 420283-007 Label, Apex Oximeter, Back–Danish 420283-008 Label, Apex Oximeter, Back–English, International 420283-009 Apex Oximeter Serial Interface Cable 2005512-003 ApexPro Telemetry Transmitters Revision A 2001989-142...
  • Page 111 415830-001 Enclosure, Back 411732-001 O-ring Gasket, Enclosure 415164-001 Enclosure Battery Door 411733-002 Screw #2-56 x 3/8 4760-017 Label, Marquette Back 420283-001 Label. Serial Number Cyanoacrylate (Sicomet 63) Label, Product Mark, Apex 418646-002 Loctite 242 Revision A ApexPro Telemetry Transmitters 2001989-142...
  • Page 112 Oximeter Assembly: Exploded View 420364-001D Exploded View 420364-001D Figure 7-23 Oximeter (Domestic) Components, Exploded View ApexPro Telemetry Transmitters Revision A 2001989-142...
  • Page 113 2455-002 O-ring Gasket, Enclosure 415164-001 2489-000 Enclosure, Battery Door 411733-002 2455-003 Screw #2-56 x 3/8 4760-017 1200-004 Loctite 242 1916-xxx Label, Serial Number 1672-002 Cyanoacrylate (Sicomet 63) 0165-000 Label, Product Mark, APEX 418646-002 2632-000 Revision A ApexPro Telemetry Transmitters 2001989-142...
  • Page 114 Oximeter Assembly: Exploded View 421049-002A Exploded View 421049-002A Figure 7-24 Oximeter (International) Assembly, Exploded View 7-10 ApexPro Telemetry Transmitters Revision A 2001989-142...
  • Page 115 Oximeter Assembly: Interconnection Diagram 421049-001A/002A Interconnection Diagram 421049-001A/002A This diagram is for Apex Oximeter Assembly (Domestic and International.) OXIMETER Figure 7-25 Oximeter Interconnection Diagram Revision A ApexPro Telemetry Transmitters 7-11 2001989-142...
  • Page 116 Resistor, 1/8W, 5%, 10M Ω, (1206) 0423-169 Resistor, 1/8W, 5%, 360 Ω, (1206) R4, 6, 8, 10–12, 14 0423-062 Resistor, 1/16W, 5%, 10K Ω, (603) R7, 15, 44 2145-097 Resistor, 1/16W, 5%, 1.5K Ω, (603) 2145-077 7-12 ApexPro Telemetry Transmitters Revision A 2001989-142...
  • Page 117 PCB, Processor 2457-000 Use as alternate parts. Date code must be applied to circuit board per the (ww/yy) format. ww = week of year manufactured, yy = last two digits of year manufactured. Revision A ApexPro Telemetry Transmitters 7-13 2001989-142...
  • Page 118 Oximeter Assembly: Parts Location Diagram 421191-001A Parts Location Diagram 421191-001A Apex Oximeter Assembly (Domestic) PCB - Sheet 1 of 3 Figure 7-26 7-14 ApexPro Telemetry Transmitters Revision A 2001989-142...
  • Page 119 Oximeter Assembly: Parts Location Diagram 421191-001A Apex Oximeter Assembly (Domestic) PCB - Sheet 2 of3 Figure 7-27 Revision A ApexPro Telemetry Transmitters 7-15 2001989-142...
  • Page 120 Oximeter Assembly: Parts Location Diagram 421191-001A Apex Oximeter Assembly (Domestic) PCB - Sheet 3 of3 Figure 7-28 7-16 ApexPro Telemetry Transmitters Revision A 2001989-142...
  • Page 121 Oximeter Assembly: PCB Schematic Diagram 2456-000A PCB Schematic Diagram 2456-000A REF DISPLAY P/N 2154-000 OSC2 PD4 36 OSC1 Schematic Diagram for Apex Oximeter Assembly (Domestic) PCB Figure 7-29 Revision A ApexPro Telemetry Transmitters 7-17 2001989-142...
  • Page 122 Oximeter Assembly: Nonin Xpod Oximeter 2007245-001A Nonin Xpod Oximeter 2007245-001A ApexPro Transmitter Nonin Xpod Oximeter Nonin probe 501a Figure 7-30 Nonin Xpod Oximeter 7-18 ApexPro Telemetry Transmitters Revision A 2001989-142...
  • Page 123 TTX Frequency Charts Revision A ApexPro Telemetry Transmitters 2001989-142...
  • Page 124 For your notes ApexPro Telemetry Transmitters Revision A 2001989-142...
  • Page 125 TTX 1044AP (1044) 1044 1091 422.275 TTX 1091AP (1091) 1091 1045 421.125 TTX 1045AP (1045) 1045 1092 422.300 TTX 1092AP (1092) 1092 1046 421.150 TTX 1046AP (1046) 1046 1093 422.325 TTX 1093AP (1093) 1093 Revision A ApexPro Telemetry Transmitters 2001989-142...
  • Page 126 TTX 1139AP (1139) 1139 1187 424.675 TTX 1187AP (1187) 1187 1140 423.500 TTX 1140AP (1140) 1140 1188 424.700 TTX 1188AP (1188) 1188 1141 423.525 TTX 1141AP (1141) 1141 1189 424.725 TTX 1189AP (1189) 1189 ApexPro Telemetry Transmitters Revision A 2001989-142...
  • Page 127 TTX 1235AP (1235) 1235 1283 427.075 TTX 1283AP (1283) 1283 1236 425.900 TTX 1236AP (1236) 1236 1284 427.100 TTX 1284AP (1284) 1284 1237 425.925 TTX 1237AP (1237) 1237 1285 427.125 TTX 1285AP (1285) 1285 Revision A ApexPro Telemetry Transmitters 2001989-142...
  • Page 128 TTX 1331AP (1331) 1331 1379 429.475 TTX 1379AP (1379) 1379 1332 428.300 TTX 1332AP (1332) 1332 1380 429.500 TTX 1380AP (1380) 1380 1333 428.325 TTX 1333AP (1333) 1333 1381 429.525 TTX 1381AP (1381) 1381 ApexPro Telemetry Transmitters Revision A 2001989-142...
  • Page 129 TTX 1427AP (1427) 1427 1475 431.875 TTX 1475AP (1475) 1475 1428 430.700 TTX 1428AP (1428) 1428 1476 431.900 TTX 1476AP (1476) 1476 1429 430.725 TTX 1429AP (1429) 1429 1477 431.925 TTX 1477AP (1477) 1477 Revision A ApexPro Telemetry Transmitters 2001989-142...
  • Page 130 TTX 1523AP (1523) 1523 1571 434.275 TTX 1571AP (1571) 1571 1524 433.100 TTX 1524AP (1524) 1524 1572 434.300 TTX 1572AP (1572) 1572 1525 433.125 TTX 1525AP (1525) 1525 1573 434.325 TTX 1573AP (1573) 1573 ApexPro Telemetry Transmitters Revision A 2001989-142...
  • Page 131 435.475 TTX 1619AP (1619) 1619 1667 436.675 TTX 1667AP (1667) 1667 1620 435.500 TTX 1620AP (1620) 1620 1668 436.700 TTX 1668AP (1668) 1668 1621 435.525 TTX 1621AP (1621) 1621 1669 436.725 TTX 1669AP (1669) Revision A ApexPro Telemetry Transmitters 2001989-142...
  • Page 132 TTX 1715AP (1715) 1715 1763 439.075 TTX 1763AP (1763) 1763 1716 437.900 TTX 1716AP (1716) 1716 1764 439.100 TTX 1764AP (1764) 1764 1717 437.925 TTX 1717AP (1717) 1717 1765 439.125 TTX 1765AP (1765) 1765 8-10 ApexPro Telemetry Transmitters Revision A 2001989-142...
  • Page 133 TTX 1811AP (1811) 1811 1859 441.475 TTX 1859AP (1859) 1859 1812 440.300 TTX 1812AP (1812) 1812 1860 441.500 TTX 1860AP (1860) 1860 1813 440.325 TTX 1813AP (1813) 1813 1861 441.525 TTX 1861AP (1861) 1861 Revision A ApexPro Telemetry Transmitters 8-11 2001989-142...
  • Page 134 TTX 1907AP (1907) 1907 1955 443.875 TTX 1955AP (1955) 1955 1908 442.700 TTX 1908AP (1908) 1908 1956 443.900 TTX 1956AP (1956) 1956 1909 442.725 TTX 1909AP (1909) 1909 1957 443.925 TTX 1957AP (1957) 1957 8-12 ApexPro Telemetry Transmitters Revision A 2001989-142...
  • Page 135 TTX 2003AP (2003) 2003 2051 446.275 TTX 2051AP (2051) 2051 2004 445.100 TTX 2004AP (2004) 2004 2052 446.300 TTX 2052AP (2052) 2052 2005 445.125 TTX 2005AP (2005) 2005 2053 446.325 TTX 2053AP (2053) 2053 Revision A ApexPro Telemetry Transmitters 8-13 2001989-142...
  • Page 136 TTX 2099AP (2099) 2099 2147 448.675 TTX 2147AP (2147) 2147 2100 447.500 TTX 2100AP (2100) 2100 2148 448.700 TTX 2148AP (2148) 2148 2101 447.525 TTX 2101AP (2101) 2101 2149 448.725 TTX 2149AP (2149) 2149 8-14 ApexPro Telemetry Transmitters Revision A 2001989-142...
  • Page 137 TTX 2195AP (2195) 2195 2243 451.075 TTX 2243AP (2243) 2243 2196 449.900 TTX 2196AP (2196) 2196 2244 451.100 TTX 2244AP (2244) 2244 2197 449.925 TTX 2197AP (2197) 2197 2245 451.125 TTX 2245AP (2245) 2245 Revision A ApexPro Telemetry Transmitters 8-15 2001989-142...
  • Page 138 TTX 2291AP (2291) 2291 2339 453.475 TTX 2339AP (2339) 2339 2292 452.300 TTX 2292AP (2292) 2292 2340 453.500 TTX 2340AP (2340) 2340 2293 452.325 TTX 2293AP (2293) 2293 2341 453.525 TTX 2341AP (2341) 2341 8-16 ApexPro Telemetry Transmitters Revision A 2001989-142...
  • Page 139 TTX 2387AP (2387) 2387 2435 455.875 TTX 2435AP (2435) 2435 2388 454.700 TTX 2388AP (2388) 2388 2436 455.900 TTX 2436AP (2436) 2436 2389 454.725 TTX 2389AP (2389) 2389 2437 455.925 TTX 2437AP (2437) 2437 Revision A ApexPro Telemetry Transmitters 8-17 2001989-142...
  • Page 140 TTX 2483AP (2483) 2483 2531 458.275 TTX 2531AP (2531) 2531 2484 457.100 TTX 2484AP (2484) 2484 2532 458.300 TTX 2532AP (2532) 2532 2485 457.125 TTX 2485AP (2485) 2485 2533 458.325 TTX 2533AP (2533) 2533 8-18 ApexPro Telemetry Transmitters Revision A 2001989-142...
  • Page 141 TTX 2576AP (2576) 2576 2577 459.425 TTX 2577AP (2577) 2577 2578 459.450 TTX 2578AP (2578) 2578 2579 459.475 TTX 2579AP (2579) 2579 2580 459.500 TTX 2580AP (2580) 2580 2581 459.525 TTX 2581AP (2581) 2581 Revision A ApexPro Telemetry Transmitters 8-19 2001989-142...
  • Page 142 TTX Frequency Charts: 400MHz TTX Frequency Chart For your notes 8-20 ApexPro Telemetry Transmitters Revision A 2001989-142...
  • Page 143 TTX 7604AP (7604) 7604 7651 586.275 TTX 7651AP (7651) 7651 7605 585.125 TTX 7605AP (7605) 7605 7652 586.300 TTX 7652AP (7652) 7652 7606 585.150 TTX 7606AP (7606) 7606 7653 586.325 TTX 7653AP (7653) 7653 Revision A ApexPro Telemetry Transmitters 8-21 2001989-142...
  • Page 144 TTX 7699AP (7699) 7699 7747 588.675 TTX 7747AP (7747) 7747 7700 587.500 TTX 7700AP (7700) 7700 7748 588.700 TTX 7748AP (7748) 7748 7701 587.525 TTX 7701AP (7701) 7701 7749 588.725 TTX 7749AP (7749) 7749 8-22 ApexPro Telemetry Transmitters Revision A 2001989-142...
  • Page 145 TTX 7795AP (7795) 7795 7843 591.075 TTX 7843AP (7843) 7843 7796 589.900 TTX 7796AP (7796) 7796 7844 591.100 TTX 7844AP (7844) 7844 7797 589.925 TTX 7797AP (7797) 7797 7845 591.125 TTX 7845AP (7845) 7845 Revision A ApexPro Telemetry Transmitters 8-23 2001989-142...
  • Page 146 TTX 7891AP (7891) 7891 7939 593.475 TTX 7939AP (7939) 7939 7892 592.300 TTX 7892AP (7892) 7892 7940 593.500 TTX 7940AP (7940) 7940 7893 592.325 TTX 7893AP (7893) 7893 7941 593.525 TTX 7941AP (7941) 7941 8-24 ApexPro Telemetry Transmitters Revision A 2001989-142...
  • Page 147 TTX 7987AP (7987) 7987 8035 595.875 TTX 8035AP (8035) 8035 7988 594.700 TTX 7988AP (7988) 7988 8036 595.900 TTX 8036AP (8036) 8036 7989 594.725 TTX 7989AP (7989) 7989 8037 595.925 TTX 8037AP (8037) 8037 Revision A ApexPro Telemetry Transmitters 8-25 2001989-142...
  • Page 148 TTX 8083AP (8083) 8083 8131 598.275 TTX 8131AP (8131) 8131 8084 597.100 TTX 8084AP (8084) 8084 8132 598.300 TTX 8132AP (8132) 8132 8085 597.125 TTX 8085AP (8085) 8085 8133 598.325 TTX 8133AP (8133) 8133 8-26 ApexPro Telemetry Transmitters Revision A 2001989-142...
  • Page 149 TTX 8179AP (8179) 8179 8227 600.675 TTX 8227AP (8227) 8227 8180 599.500 TTX 8180AP (8180) 8180 8228 600.700 TTX 8228AP (8228) 8228 8181 599.525 TTX 8181AP (8181) 8181 8229 600.725 TTX 8229AP (8229) 8229 Revision A ApexPro Telemetry Transmitters 8-27 2001989-142...
  • Page 150 TTX 8275AP (8275) 8275 8323 603.075 TTX 8323AP (8323) 8323 8276 601.900 TTX 8276AP (8276) 8276 8324 603.100 TTX 8324AP (8324) 8324 8277 601.925 TTX 8277AP (8277) 8277 8325 603.125 TTX 8325AP (8325) 8325 8-28 ApexPro Telemetry Transmitters Revision A 2001989-142...
  • Page 151 TTX 8371AP (8371) 8371 8419 605.475 TTX 8419AP (8419) 8419 8372 604.300 TTX 8372AP (8372) 8372 8420 605.500 TTX 8420AP (8420) 8420 8373 604.325 TTX 8373AP (8373) 8373 8421 605.525 TTX 8421AP (8421) 8421 Revision A ApexPro Telemetry Transmitters 8-29 2001989-142...
  • Page 152 TTX 8467AP (8467) 8467 8515 607.875 TTX 8515AP (8515) 8515 8468 606.700 TTX 8468AP (8468) 8468 8516 607.900 TTX 8516AP (8516) 8516 8469 606.725 TTX 8469AP (8469) 8469 8517 607.925 TTX 8517AP (8517) 8517 8-30 ApexPro Telemetry Transmitters Revision A 2001989-142...
  • Page 153 TTX 8563AP (8563) 8563 8611 610.275 TTX 8611AP (8611) 8611 8564 609.100 TTX 8564AP (8564) 8564 8612 610.300 TTX 8612AP (8612) 8612 8565 609.125 TTX 8565AP (8565) 8565 8613 610.325 TTX 8613AP (8613) 8613 Revision A ApexPro Telemetry Transmitters 8-31 2001989-142...
  • Page 154 TTX 8659AP (8659) 8659 8707 612.675 TTX 8707AP (8707) 8707 8660 611.500 TTX 8660AP (8660) 8660 8708 612.700 TTX 8708AP (8708) 8708 8661 611.525 TTX 8661AP (8661) 8661 8709 612.725 TTX 8709AP (8709) 8709 8-32 ApexPro Telemetry Transmitters Revision A 2001989-142...
  • Page 155 TTX 8752AP (8752) 8752 8753 613.825 TTX 8753AP (8753) 8753 8754 613.850 TTX 8754AP (8754) 8754 8755 613.875 TTX 8755AP (8755) 8755 8756 613.900 TTX 8756AP (8756) 8756 8757 613.925 TTX 8757AP (8757) 8757 Revision A ApexPro Telemetry Transmitters 8-33 2001989-142...
  • Page 156 TTX Frequency Charts: 600MHz TTX Frequency Chart For your notes 8-34 ApexPro Telemetry Transmitters Revision A 2001989-142...
  • Page 157 Channel = Japanese channel number; zone = Japanese Zone (1 through 9 for Type B devices) TTX ID = Transmitter identifier entered into CIC; Xmtr Label = text on label applied to ApexPro transmitter TTX # = Transmitter identifier used with the ApexPro Programming Device to configure the ApexPro transmitter...
  • Page 158 TTX Frequency Charts: ApexPro (Type B devices) TTX Frequency Chart TTX # (prog. Freq (MHz) Channel (CH) Zone TTX ID Xmtr Label Note box) 425.525 2084 52284 CH2084AP (52284) 1221 425.550 2086 52286 CH2086AP (52286) 1222 425.575 2088 52288 CH2088AP (52288) 1223 425.600...
  • Page 159 TTX Frequency Charts: ApexPro (Type B devices) TTX Frequency Chart TTX # (prog. Freq (MHz) Channel (CH) Zone TTX ID Xmtr Label Note box) 441.375 4066 54266 CH4066AP (54266) 1855 441.400 4068 54268 CH4068AP (54268) 1856 #REF! #REF! 1*, 3*, 4...
  • Page 160 TTX Frequency Charts: ApexPro (Type B devices) TTX Frequency Chart For your notes 8-38 ApexPro Telemetry Transmitters Revision A 2001989-142...
  • Page 162 Asia Headquarters World Headquarters GE Medical Systems GE Medical Systems GE Medical Systems Information Technologies GmbH Information Technologies Asia; GE (China) Co., Ltd. Information Technologies, Inc. Munzinger Straße 3-5 24th Floor, Shanghai MAXDO Center, 8200 West Tower Avenue D-79111 Freiburg...

This manual is also suitable for:

Apexpro ch
