Kobelt 6509 Owner's Operation, Installation & Maintenance Manual

Electronic control head
Hide thumbs

Advertisement

Quick Links

Download this manual

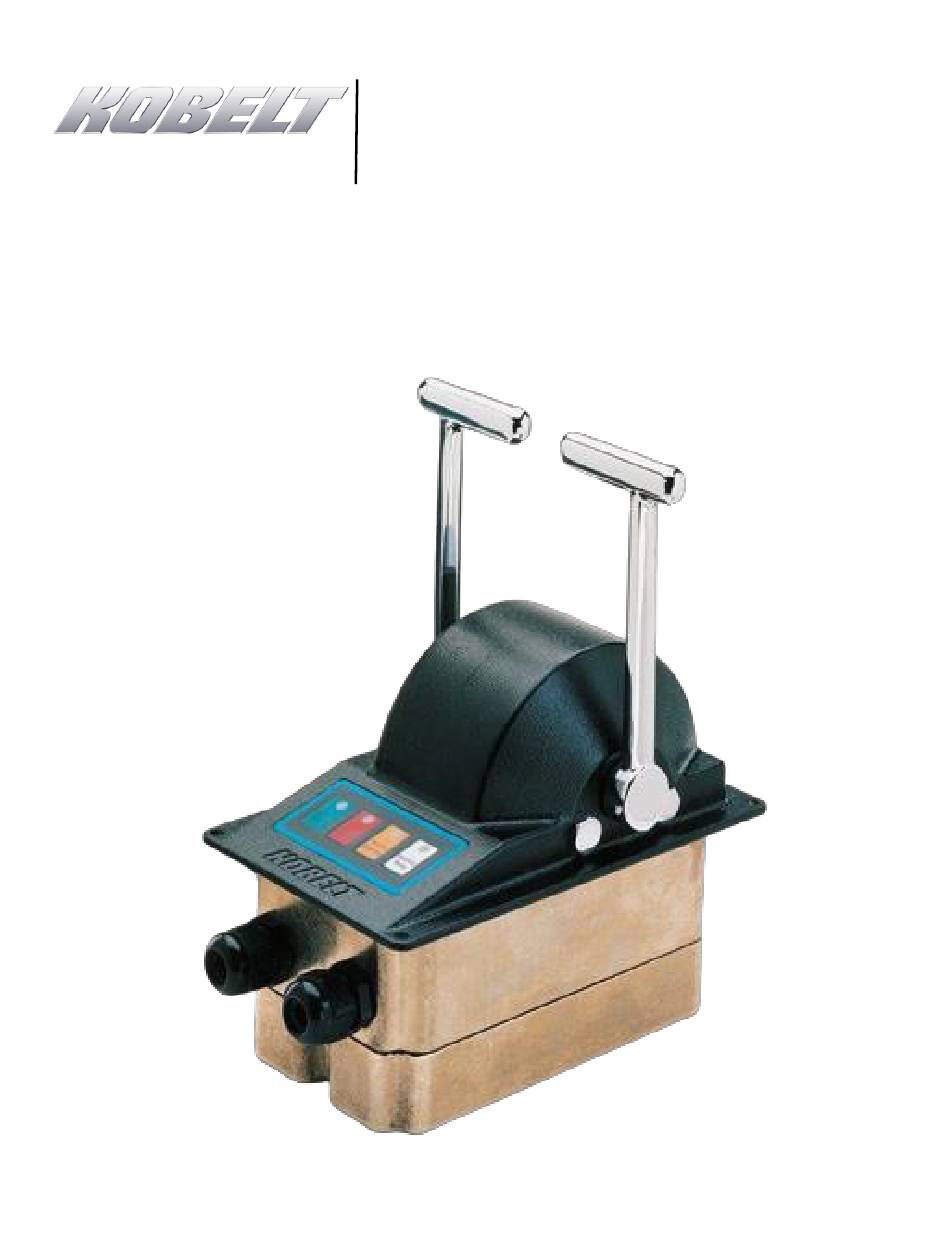

6509 Electronic Control Head
Owner's Operation, Installation &
Maintenance Manual
Kobelt Manufacturing Co. Ltd.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 6509 and is the answer not in the manual?

Questions and answers

Related Manuals for Kobelt 6509

Summary of Contents for Kobelt 6509

  • Page 1 6509 Electronic Control Head Owner’s Operation, Installation & Maintenance Manual Kobelt Manufacturing Co. Ltd.
  • Page 2 6509 Control Head Kobelt Manufacturing Co. Ltd. NOTES RECORD DATA BEFORE INSTALLATION FOR FUTURE REFERENCE Model #: Serial #: Date of Purchase: Date of Installation: Rev B MNL-6509 2 of 25...
  • Page 3 6509 Control Head Kobelt Manufacturing Co. Ltd. Table of Contents Introduction ........................4 Contact ............................4 Safety ............................4 1.2.1 Safety Alerts ..........................4 1.2.2 Notice to Installer ........................4 1.2.3 Product Hazards ........................5 Product Description .......................6 Overview ............................6 Technical Data ..........................
  • Page 4 This document is intended to clearly present comprehensive product data and provide technical information to assist the end user in design applications. Kobelt reserves the right, without notice, to change the design, or construction, of any products and to discontinue or limit distribution of any products.
  • Page 5 Ensure that all power sources are locked out prior to performing work. Pinch Points: The 6509 control head contains pinch points, which can cause bodily harm. Ensure that hands and fingers remain clear of the pinch points when performing work.
  • Page 6 The Kobelt 6509 electronic control head provides a 10-bit digital output, communicated via CANbus or RS485, that is proportional to the handle position. This output is used by Kobelt’s Mighty Mariner or 6525 controller to control engine throttle, clutch engagement or propellor pitch. The handle also has three detent positions;...
  • Page 7 6509 Control Head Kobelt Manufacturing Co. Ltd. ECHNICAL Handle Travel: • Neutral: detented • Clutch in: +/- 20 detented • Full travel: +/- 78 Output: 10 bit Connection CANbus (Mighty Mariner) RS485 (6525 system) Terminals: 22-16 AWG, screw clamp Voltage:...
  • Page 8 6509 Control Head Kobelt Manufacturing Co. Ltd. ODEL ONFIGURATION Notes: 1. Only available with 6525 system 2. SS = station select SL = station lock TO = throttle override SM = engine synchronizer mode CE = clutch engage TM = trolling mode...
  • Page 9 LECTRICAL The 6509 control head is equipped with two cable glands with which to make the electrical connections. Use 0.20 inch [5 mm] to 0.47 inch [12 mm] OD cable with 18 AWG conductors for external connections to the engine controller.
  • Page 10 6509 Control Head Kobelt Manufacturing Co. Ltd. Figure 3: 6509 Wire Connections – 6525 System Figure 4: 6509S Wire Connections - Mighty Mariner System Rev B MNL-6509 10 of 25...
  • Page 11 6509 Control Head Kobelt Manufacturing Co. Ltd. Table 1: CPU Connector termination Pin # Signal Conductor Function + VDC WHT 2 Bus supply BLK 2 Bus common DATA+ WHT 1 Bus data -H DATA- BLK 1 Bus data - L...
  • Page 12 PERATION The 6509 control head can be equipped with either four or five membrane buttons. Both configurations are compatible with fixed-pitch vessels and controllable pitch propeller vessels, with button functions varying according to the propeller type.
  • Page 13 6509 Control Head Kobelt Manufacturing Co. Ltd. To return to the normal operating mode, return the handle positions back to neutral (TDC) and press the button again. SYNCHRONIZER Pressing this button enables the propellor speed synchronization feature, which uses external speed sensors to measure the speed and permit the controller to match the engine speeds.
  • Page 14 6509 Control Head Kobelt Manufacturing Co. Ltd. ALIBRATION When replacing the potentiometer or if the setting has become disturbed, follow these steps to center the output: 1. Position the handle in the center (neutral) position. 2. Remove the control head bottom cover.
  • Page 15 The spare parts kept on hand will depend on the severity of the service. The User should monitor the condition of their control head to predict necessary spare parts and ensure they are on hand when needed. As a minimum Kobelt recommends keeping the following parts for each control head in service:...
  • Page 16 6509 Control Head Kobelt Manufacturing Co. Ltd. 6012-0002 SS/SL/CE/FC/HM 6012-0006 SS/SL/TO/SM/TM Rev B MNL-6509 16 of 25...
  • Page 17 Kobelt for assistance. If the steps below do not resolve your issue, please reach out either Kobelt directly or our Dealers in your area.
  • Page 18 Buyer. Kobelt’s sole obligation to the Applicant will be to repair or replace the defective part with same or similar product, to a maximum value of the list price of the product or part. The Kobelt warranty does not cover labour charges, travel or any other associated expenses.
  • Page 19 6509 Control Head Kobelt Manufacturing Co. Ltd. EVISIONS ISTORY Table 10: Table of revision changes Document Release Date Author Revision Summary Revision • 2025-06-16 01262 updated voltage and power rating • updated model code key • updated electrical wire connections •...
  • Page 20 6509 Control Head Kobelt Manufacturing Co. Ltd. A: I PPENDIX NSTALLATION IMENSIONS Rev B MNL-6509 20 of 25...
  • Page 21 6509 Control Head Kobelt Manufacturing Co. Ltd. 10 A B: P PPENDIX ARTS 6509S-TB Rev B MNL-6509 21 of 25...
  • Page 22 Kobelt Manufacturing Co. Ltd. ITEM QTY. PART NUMBER DESCRIPTION 6509-TB-SUB SUB ASSEMBLY - CONTROL HEAD; TW IN ENGINE / STD CAMS / BLACK 6509-0001BT 6509 DOME, TEXTURE BLACK 6509-0014M-K 6509 HANDLE, CHROME 6509-0007 DETENT PLUG; 1/2 UNF 1201-0062 COMPRESSION SPRING; .25OD X .05 W IRE X .75 FL 1201-0205 COMPRESSION SPRING;...
  • Page 23 6509 Control Head Kobelt Manufacturing Co. Ltd. 11 A C: I PPENDIX NSTALLATION EMPLATE Rev B MNL-6509 23 of 25...
  • Page 24 6509 Control Head Kobelt Manufacturing Co. Ltd. Scale may not be exactly 1:1 due to PDF and printer scaling. Verify primary dimension with a ruler after printing and before using to cut. Reference Appendix A: Installation Dimensions , for the cut-out dimensions.
  • Page 25 Kobelt Manufacturing Co. Ltd. 8238 129th Street Surrey, British Columbia, Canada, V3W 0A6 Sales Tel: +1-604-572-3935 Fax: +1-604-590-8313 Email: sales@kobelt.com Website: www.kobelt.com Made in Canada / Printed in Canada...
