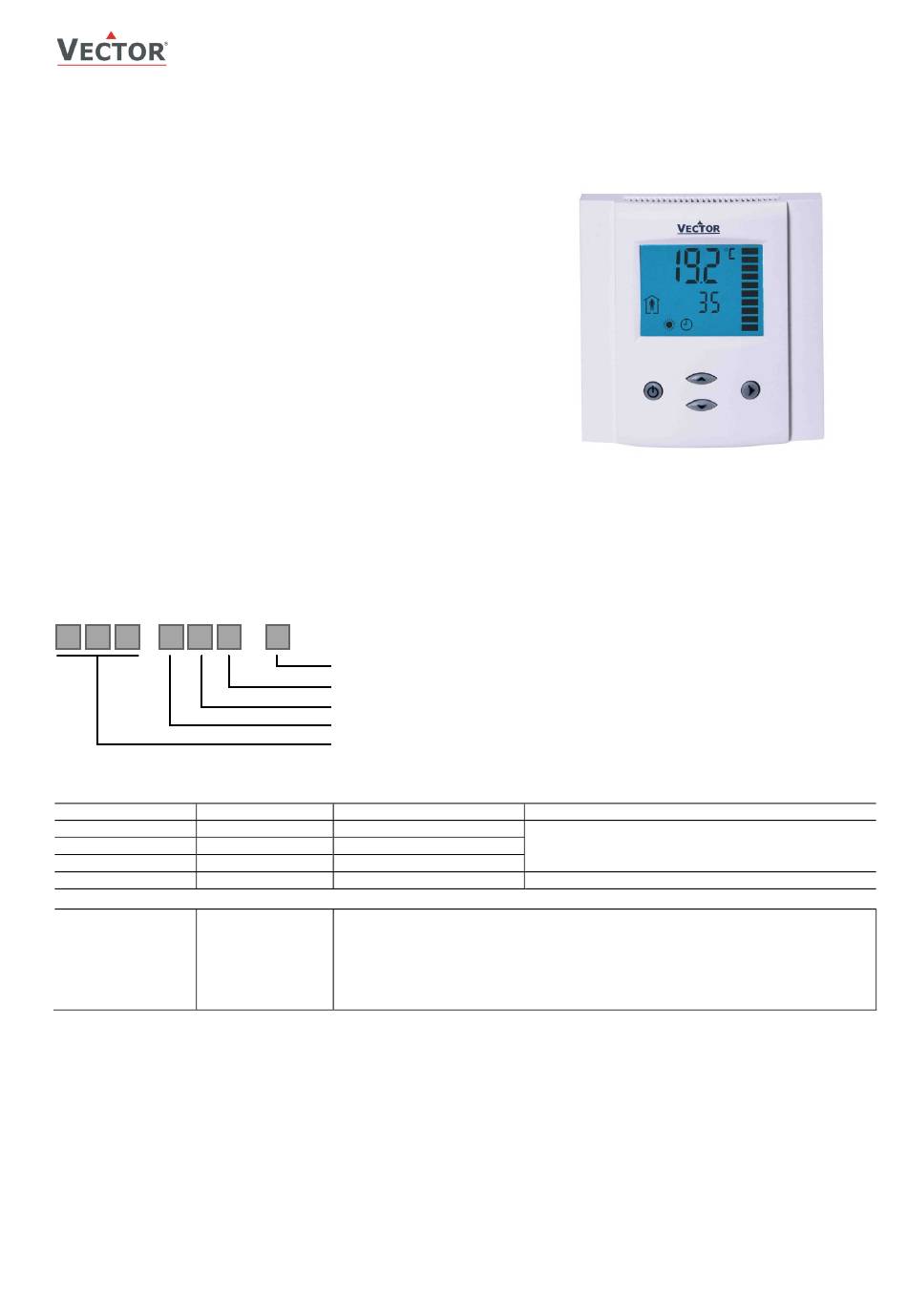

Vector TCY-MT2-W1 Quick Start Manual

TCY-MT Series Intelligent Temperature Controller
Features
• Temperature PID control for HVAC systems.
• Up to 2 modulating outputs for DC 0...10V with 10mV resolution.
• 1 internal temperature sensor and up to 2 external sensor inputs
• Multiple remote control functions on external input
• Password protected programmable user and control parameters
• Blue backlight
Applications
• Various temperature control applications
• Stand alone VAV control for pressure independent actuators
• Water Only Systems: Radiator, floor heating or chilled ceilings
• Individual room control for offices, residential, hotel rooms,
meeting rooms, etc.
General Description
The TCY-MT is a stand-alone electronic universal controller with one temperature control loop. It may use up to 2 PID
sequences. The TCY-MT features one internal NTC temperature sensor, up to two external sensor inputs and up to two
analog outputs. The configuration has been reduced to a minimum to allow for a simple and off the shelve usage. For
more advanced features and current in- and outputs the TCI product range is recommended. The TCY-MT can be
configured using the standard operation terminal. No special tool or software is required.
Name
- M
T C Y T 2
Ordering
Item Name Item code
TCY-MT2-W1 40-10 0043-1
TCY-MT2-W2 40-10 0043-2
TCY-MT2 40-10 0043
TCY-MT4 40-10 0045
Accessories
S-Tn10-2
40-20 0001
SD-Tn10-12-2
40-20 0002
SD-Tn10-20-2
40-20 0003
SDB-Tn10-12
40-20 0051
SDB-Tn10-20
40-20 0004
SOA-Tn10
40-20 0006
Selection of actuators and sensors
Temperature Sensors:
Use only our approved NTC sensors to achieve maximum accuracy. Recommended is SDB-Tn10-20 as Duct sensor, SRA-
Tn10 as Room sensor and SDB-Tn10-20 with AMI-S10 as immersion sensor.
Modulating Actuators:
Choose actuators with an input signal type of 0-10V DC or 2-10V DC.
Doc: 70-00-0058 V1.1, 20100908
Subject to alteration
- ( )
U
Housing:
Function:
Input:
Output:
Series:
Control Type
Cooling only
Heating only
2-Pipe system
4-Pipe system
Flying lead sensor with 2 m cable
Flying lead duct sensor 12cm immersion depth, 2m cable
Flying lead duct sensor 20cm immersion depth, 2m cable
Duct sensor with housing, 12cm immersion depth
Duct sensor with housing, 20cm immersion depth
Outdoor sensor
U = Vertical (2x4") housing, Standard is square housing
2 = 2 = 2-Pipe, 4 = 4-Pipe
T = Temperature, H = Humidity
M = Modulating, B = Binary
TCY
Key-data
Compact PID controller with:
2 TI, 1 AO
1 TI, 2 AO
© Vector Controls GmbH, Switzerland
Temperature PID Controller
TCY-MT
Page 1
