Vector TCY-FT-U Manual

Temperature PI controller TCY- FT-U
TCY-FT-U Intelligent Temperature PI controller
Features

Temperature PI control for HVAC systems.

Up to 2 modulating outputs for DC 0...10V with 10mV resolution.

1 internal temperature sensor and up to 2 external sensor inputs

Multiple remote control functions on external input

Password protected programmable user and control parameters

Blue backlight
Applications

Various temperature control applications

Stand alone VAV control for pressure independent actuators

Water Only Systems: Radiator, floor heating or chilled ceilings

Individual room control for offices, residential, hotel rooms, meeting rooms, etc.
General Description
The TCY-FT-U is a stand-alone electronic universal controller with one temperature control loop. It may use
up to 2 PI sequences. The TCY-FT-U features 1 internal NTC temperature sensor, up to two external
sensors inputs and up to four binary outputs. The configuration has been reduced to a minimum to allow for
a simple and off the shelve usage. For more advanced features and current in- and outputs the TCI product
range is recommended. The TCY-FT-U can be configured using the standard operation terminal. No special
tool or software is required.
TCY-FT2-U
│ │││ └──── Housing: U = Vertical (2" x 4") housing, Standard is square housing
│ ││└────── Function:
2 = 2-pipe, 4 = 4-pipe
│ │└─────── Input T = Temperature
│ └──────── Output:
F = 3-point, M = Modulating, B = Binary
└────────── Series Indication
TCY
Item Name Item code Variant Features
TCY-FT2-U-W1 40-10 0068-1 Cooling only
Compact PI controller with:
TCY-FT2-U-W2 40-10 0068-2 Heating only
2 TI, 1 AO
TCY-FT2-U 40-10 0068 2-Pipe system
TCY-FT4-U 40-10 0072 4-Pipe system 1 TI, 2 AO
Accessories
S-Tn10-2 40-20 0001 Flying lead sensor with 2 m cable
SD-Tn10-12-2 40-20 0002 Flying lead duct sensor 12cm immersion depth, 2m cable
SD-Tn10-20-2 40-20 0003 Flying lead duct sensor 20cm immersion depth, 2m cable
SDB-Tn10-12 40-20 0051 Duct sensor with housing, 12cm immersion depth
SDB-Tn10-20 40-20 0004 Duct sensor with housing, 20cm immersion depth
SOA-Tn10 40-20 0006 Outdoor sensor
Selection of actuators and sensors
Use only our approved NTC sensors to achieve maximum accuracy. Recommended is SDB-Tn10-20 as
Duct sensor, SRA-Tn10 as Room sensor and SDB-Tn10-20 with AMI-S10 as immersion sensor.
3-point Actuators:
Actuators with constant running time are recommended. Observe power limits. Do not use actuators with
power consumption > 6VA. Adjust running time in SW. Default running time is 90s for fully open / close
running time.
Mounting location

On an easy accessible interior wall, approx. 1.5 m (4.5') above the floor in an area of
average temperature.

Avoid exposure to direct sunlight or other heat sources, e.g. the area above radiators and
heat emitting electrical equipment.

Avoid locations behind doors, outside walls and below or above air discharge grills and
diffusers.

Location of mounting is less critical if external temperature sensors are used
Installation
1. Connect the wires to be connected to the terminals of the power case according to wiring
diagram
2. Install the mounting plate to the flush mounting box. Make sure that the nipple with the front
holding screw is facing to the ground. Make sure the mounting screw heads do not stand out
more than 5 mm (0.2") off the surface of the mounting plate.
3. Ensure that the jumpers are set correctly.
4. Slide the two latches located on the top of the front part into the hooks at the upper side of
the mounting plate.
5. Carefully lower the front part until the interconnector reaches the mounting-plate. Continue
pressing in a gentle way until the front part is fully connected. While inserting the connectors,
a slight resistance can be felt. This is normal. Do not use excessive force!
6. With a Philips-type screw driver of size #2, carefully tighten the front holding screw to secure
the front part to the mounting plate. This screw is located on the front lower side of the unit.
There is no need to tighten the screw too much.
Doc: 70-00-0130C, V1.3, 20141030
Temperature PI controller TCY- FT-U

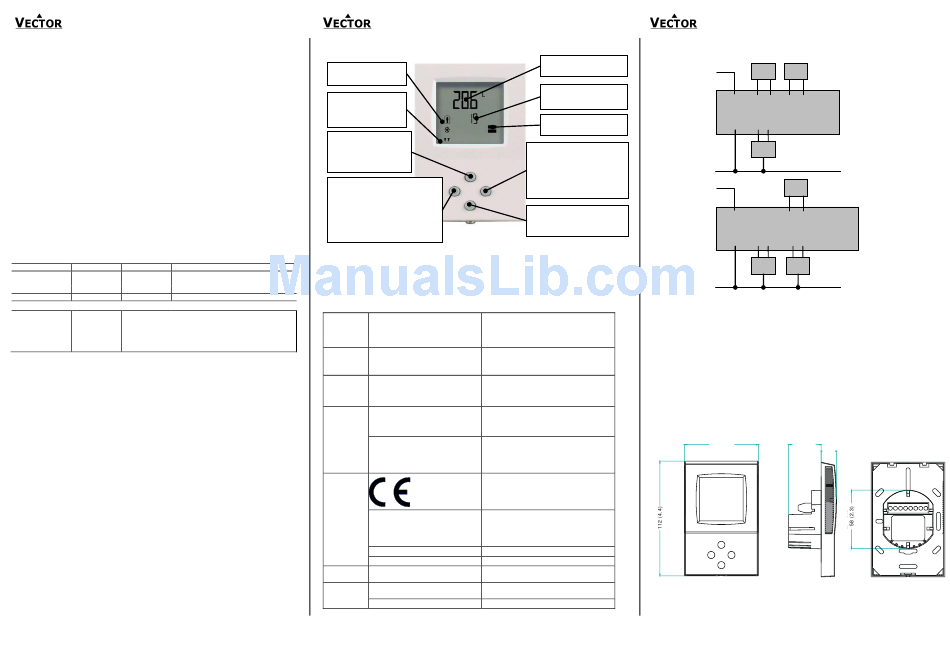

Display and Operation
Mode
Display of operation mode
Indicators
1 Remote temperature
sensor
2 Dew point sensor
Up : Increment SET POINT
(Parameter setting:
SCROLL menu options and
parameters)
Left (POWER): Press < 2 sec.: Toggle
STANDBY-COMFORT mode or switch
from OFF to ON
Press > 2 sec.: Turn unit OFF. Text OFF
displayed with current time (deluxe)
temperature (standard)
(Parameter setting: ENTER to select
menu option, accept parameter change)
Power Failure
Upon power-interruption, all parameters and setpoints are memorized in non-volatile memory and therefore do not
have to be re-entered again.
Error messages
Err1: The connection to the temperature sensor may be interrupted or the temperature sensor is damaged.
The output is switched off. Verify parameter settings and wiring.
Technical Specification
Power Supply 24 V AC ± 10 %, 50...60 Hz, Class 2, 48VA max
Operating Voltage
Power Consumption Max. 1.5 VA
Electrical Connection
Terminal Connectors,
wire 0.34...2.5 mm
Signal inputs
Temperature Input
0...50 °C (32...122 °F)
Range
Accuracy 0.5 K
Signal outputs
TRIAC Outputs
Switching power 24 VAC, 250mA max
Do not use actuators with power consumption >
6VA
Environment
Operation To IEC 721-3-3
Climatic Conditions class 3 K5
0...50 °C (32...122 °F)
Temperature
Humidity <95 % r.H. non-condensing
Transport & Storage To IEC 721-3-2 and IEC 721-3-1
Climatic Conditions class 3 K3 and class 1 K3
-25...70 °C (-13...158 °F)
Temperature
Humidity <95 % r.H. non-condensing
Mechanical Conditions class 2MT2
Standards
conform according to
EMC Directive EN 61 000-6-1/ EN 61 000-6-3
2004/108/EU
Low Voltage Directive
2006/95/EU
Product standards
EN 60 730 –1
Automatic electrical controls for
household and similar use
EN 60 730 – 2 – 9
Special requirement on temperature
dependent controls
Degree of Protection IP30 to EN 60529
Safety Class III (IEC 60536)
Housing
Cover, back part Fire proof ABS plastic (UL94 class V-0)
Mounting Plate Galvanized Steel
General Front part: 112 x 73 x 15 mm (4.4" x 2.9" x 0.6")
Dimensions (H x W x D)
Power case: ø 58 x 32 mm (ø 2.3" x 1.3")
Weight (including package) 270 g (9.5 oz)
© Vector Controls GmbH, Switzerland
Wiring Diagram
Large Digits: Display of input
or parameter value.
24V AC
Small Digits: Display of
setpoint, clock or parameter
number.
Vertical Bar: (scrolls
up/down, 10% resolution)
Right (OPTION) :
Press < 2 sec.: Select Control Loop
Press > 2 sec.: Manual H/C change
0V (COM)
(Parameter setting: ENTER to
select menu option, accept
parameter change)
24V AC
Down : Decrement SET POINT
(Parameter setting: SCROLL menu
options and parameters)
0V (COM)
Description:
G0 0V Power supply:
G 24V Power supply:
M 0V Signal common:
External temperature input: NTC 10kΩ @ 25°C (77°F)
X1 RT
2 (AWG 24...12)
TCY-FT2-U:
X2 CO Change over input:
Y1 DO1 Binary output:
Y2 DO2 Binary output:
TCY-FT4-U:
Y1 DO1 Binary output:
Y2 DO2 Binary output:
Y3 DO3 Binary output:
Y4 DO4 Binary output:
Dimensions [mm] (in)
Temperature PI controller TCY- FT-U
X X
T CO T EXT
2
5 6 7 8
G
M X2 M X1
1
3 4
TCY-FT2-U
G0 Y1 Y2
Y
F1
X
T EXT
2
7 8
G
M X1
1 3 4 5 6
TCY-FT4-U
G0
Y1 Y2 Y3 Y4
Y Y
F1 F2
0VAC internally connected to signal common
24VAC
Common 0 potential for analog inputs and analog outputs.
NTC 10kΩ @ 25°C (77°F)
Valve open
Valve close
Heating valve open
Heating valve close
Cooling valve open
Cooling valve close
32 (1.2)
73 (2.9)
15
(0.6
)
