Vector TLC-BCR-T Manual

Intelligent binary temperature controller

Advertisement

Quick Links

TLC-BCR-T
Intelligent binary temperature controller
Applications
Air Only Systems:
Constant Air Volume systems with for single or dual duct systems
o
Air/Water Systems:
Radiator control, chilled ceiling, floor heating
o
Simple individual room control for hotel rooms, meeting rooms, etc.

General Description

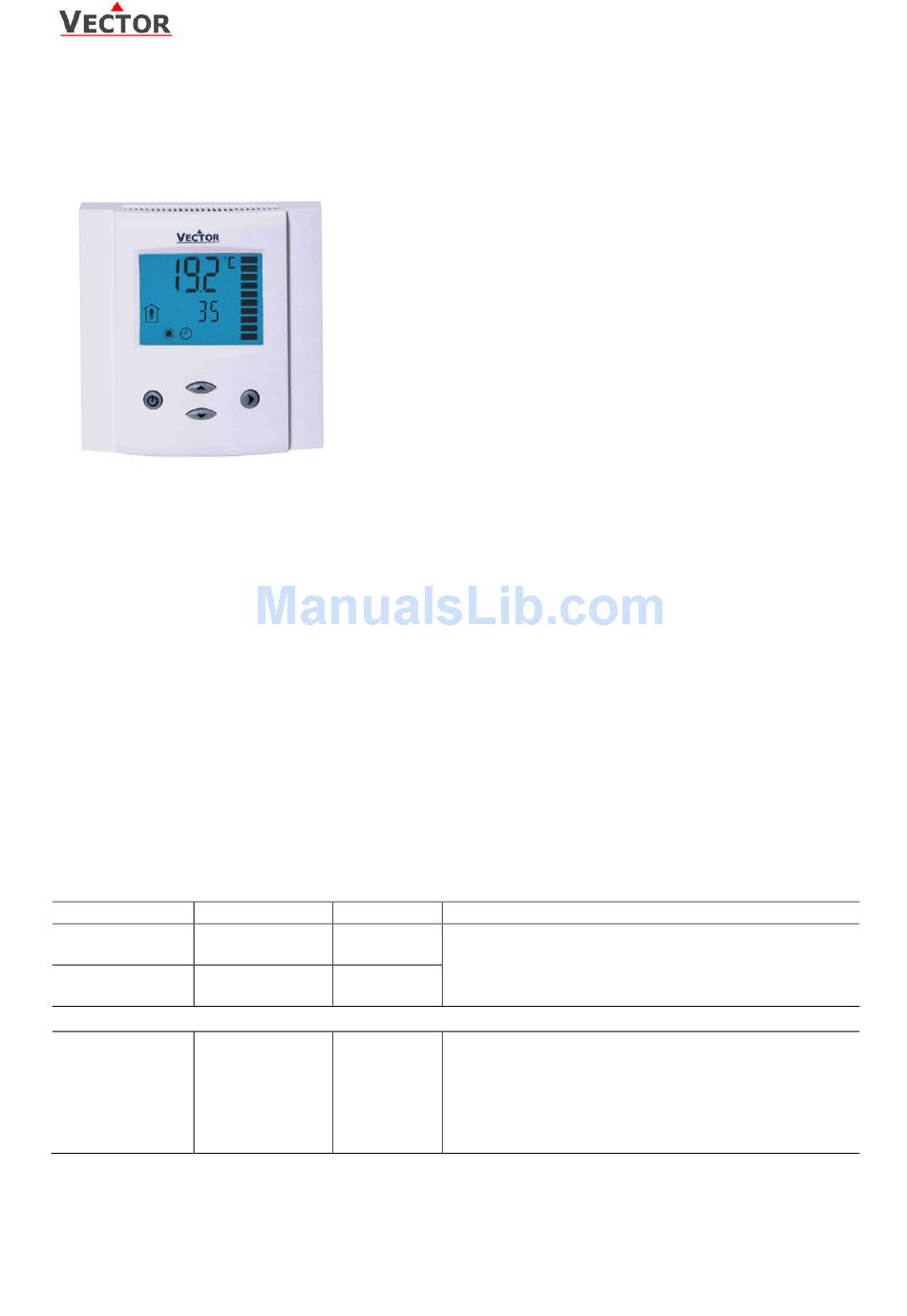

The TLC-BCR-T is a stand-alone electronic binary controller with one control loop. The TLC-BCR-T features one internal
and one external NTC temperature sensor input and two binary outputs (Relays).
A detailed parameterization is possible with the use of a simple configuration routine. The TLC-BCR-T can be
configured using the standard operation terminal. No special tools or software is required.
Ordering
Item Name
Item code
TLC-BCR-T
40-10 0005
TLC-BCR-T-W01
40-10 0005-01
TLC-BCR-T-D
40-10 0006
TLC-BCR-T-D-W01
40-10 0006-01
Accessories
S-Tn10-2
40-20 0001
SD-Tn10-12-2
40-20 0002
SD-Tn10-20-2
40-20 0003
SDB-Tn10-12
40-20 0051
SDB-Tn10-20
40-20 0004
SRA-Tn10
40-20 0005
SOA-Tn10
40-20 0006
Selection of actuators and sensors
Temperature Sensors: Use only our approved NTC sensors to achieve maximum accuracy. Recommended is SDB-
Tn10-15 as Duct sensor, SRA-Tn10 as Room sensor and SDB-Tn10-15+AMI-10 as immersion sensor.
Binary auxiliary devices: E.g. pumps, fans, on/off valves, etc. Do not directly connect devices that exceed 2(1.2)A.
Observe startup current on inductive loads!
Doc: 70-00-0083, Date: 20081219
Features
Low power energy consumption: < 1W per unit
Relays switching for outputs each up to 300W
Temperature control for 2 or 4-pipe heating or cooling systems.
Large temperature range from –40°C to 70°C (-40°F to 158°F).
Choose between one 3-point actuator and two binary
heating/cooling stages
Cost saving option with Economy functionality and set point
limitations
External sensor or open contact for remote control, external heat
– cool change or auto-changeover on supply temperature with
selectable activation limits
Control for single stage heating and cooling for 4-pipe systems or
dual stage heating / cooling for 2-pipe systems
Password protected programmable user and control parameters
Setpoint range limitation
o
Access control for setpoints, fan speeds and mode
o
change
Access control for heat/cool change and time programs
o
Select your display contents
o
Selectable behavior after return from power failure
o
Temperature display in Celsius or Fahrenheit
Deluxe Version:
Clock and time schedule functions
Blue backlight for LCD
Infrared remote controller option:
With special features for Boost and delayed switching on or off
Variant
Features
Standard
Binary controller with:
Cooling only
1 TI int or ext
Deluxe
2 DO (Relay) Binary valve control
Cooling only
Flying lead sensor with 2 m cable
Flying lead duct sensor 12cm immersion depth, 2m cable
Flying lead duct sensor 20cm immersion depth, 2m cable
Duct sensor with housing, 12cm immersion depth
Duct sensor with housing, 20cm immersion depth
Room sensor
Outdoor sensor
© 2008 Vector Controls Ltd.
TLC-BCR-T Engineering Manual
Page 1
