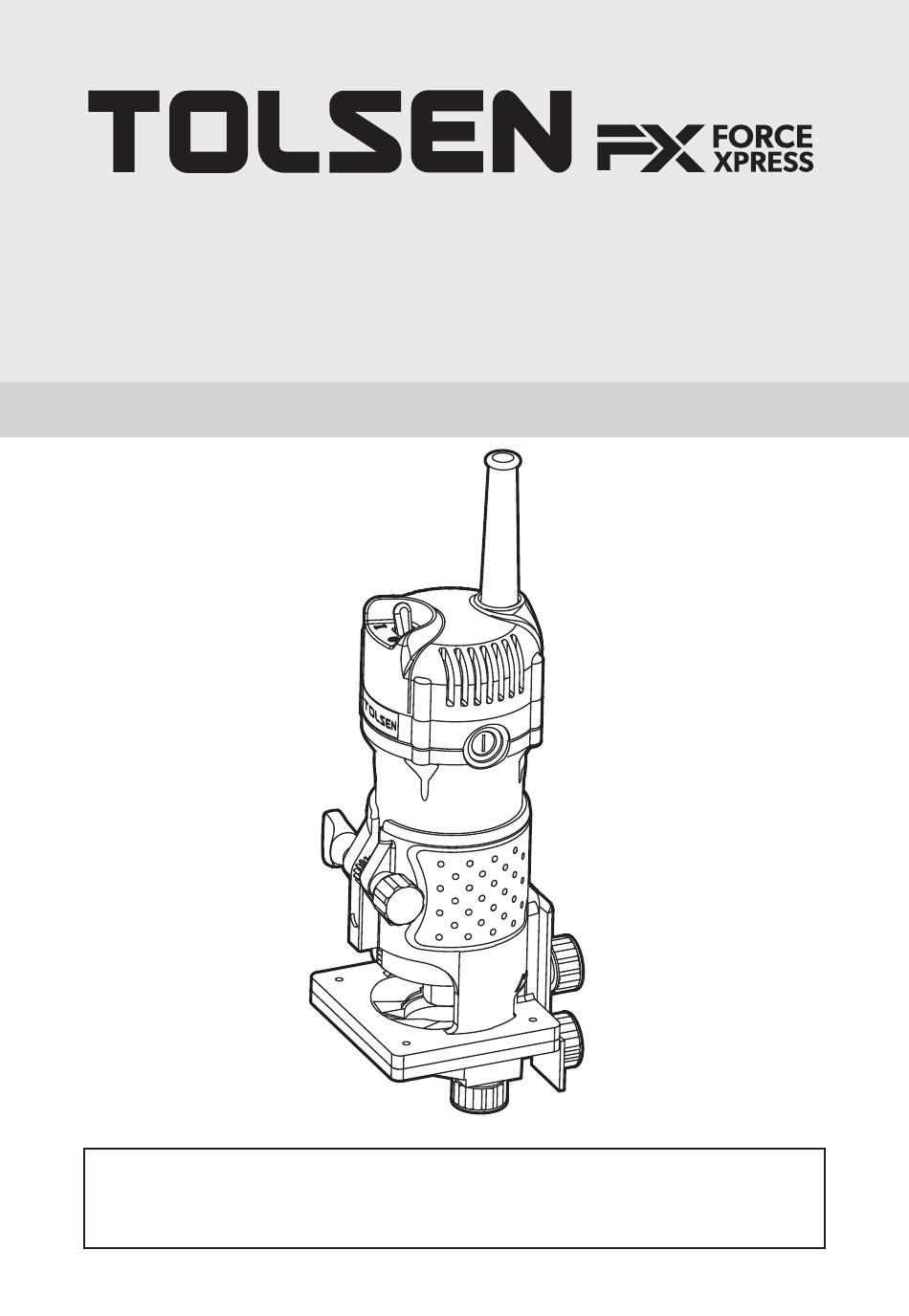

- Page 1 79539 LAMINATE TRIMMER INSTRUCTION MANUAL 220-240V~50/60HZ 650W SAVE THIS MANUAL ! You will need this manual for safety instructions, operating procedures and warranty. Put it and the original sales receipt in a safe dry place for future reference.
- Page 2 SAFETY SAFETY INSTRUCTIONS WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
- Page 3 SAFETY 4) Power tool use and care a Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) DO not use the power tool if the switch does not turn It on and off.
- Page 4 SPECIFICATIONS & SYMBOLS SPECIFICATIONS 220-240V~50/60Hz Electrical Rating 650W Rated Power : 37000/min Motor No Load Speed Chuck Diameter 1/4” 6mm EXPLANATION OF THE SYMBOLS Double insulated for additional protection. Read the instruction manual before using. Wear safety glasses, hearing protection and dust mask. Waste electrical products should not be disposed of with household waste.
- Page 5 SETUP OPERATION WARNING! before adjusting the function of the tool, please make sure the tool is off and the plug does not connect to the electricity. 1) ADJUST THE CUTTING DEPTH Screw out the fixing knob till loose. Adjust the base seat assembly to your satisfied depth. Then screw the fixing knob to be tight.
- Page 6 SETUP WARNING! If moving forward of the tool is too fast will cause the bad quality of work piece, damages the cutting bits or motor of the tool. If moving forward of the tool is too slow it will cause the cutting bits too hot and bad quality of work piece. Before starting cutting, please try cutting firstly to some wasted work pieces.
- Page 7 SETUP When cutting the edge or grooving the work piece, the parallel guide is quite useful. Use the bolt and wing nut to assemble guide bar to the parallel guide.(see Fig. 9) NOTE: 1. Bolt 2. Guide bar 3. Parallel guide 4.
- Page 8 SETUP 8)BEARING GUIDE Put the center hole on the parallel guide onto the center on work piece. Put a nail less than 6 mm to the center hole to fix the parallel guide. Cutting the work piece by direction of clockwise.(see Fig. 14) You can operate the tool conveniently with for home furniture like desk, bed, seat etc.
- Page 9 MAINTENANCE AND SERVICING MAINTENANCE AND SERVICING MAINTENANCE AND SERVICING 1. Always disconnect the tool before carrying out inspection or cleaning. Never use water or other liquids to clean the tool. Clean the tool by brushing it with a brush. 2. The air-vent of the tool should be cleaned regularly to avoid the motor too hot due to air-vent blocked. 3.
- Page 10 SUZHOU TOLSEN TOOLS CO.,LTD. www.tolsentools.com TOLSEN is a trademark or registered trademark of TOLSEN TOOLS. All rights reserved. TolsenWorld SCAN TO VISIT MADE IN CHINA PRODUCT LINK...
