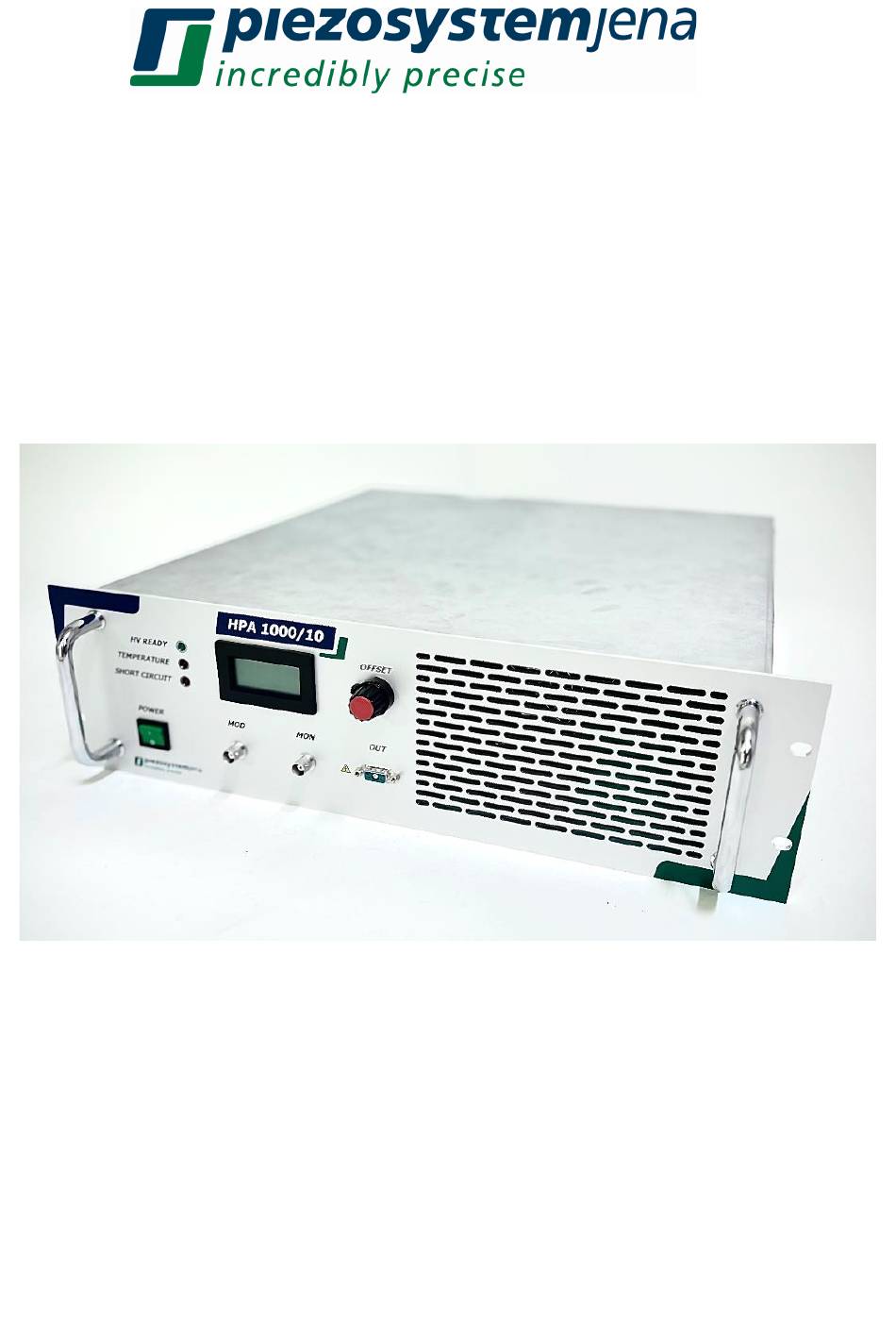

- Page 1 Instruction manual High power amplifier HPA1000/10 Read carefully before powering on! Please see also instructions for safety, using piezoelectric actuators and power amplifiers! Phone: +49 3641 66880 • Fax: +49 3641 668866 • info@piezojena.com • http://www.piezojena.com...
-
Page 2: Table Of Contents
6.3. Installation, power supply ................5 6.4. Maintenance and inspection ................ 6 Instructions for checking the system function / quick start ......6 How to operate the HPA1000/10 ..............7 8.1. Common introduction .................. 7 8.2. Technical data ..................... 8 8.3. -
Page 3: Introduction
GmbH. • The HPA1000/10 is a laboratory device according to DIN EN 61010. It is intended to be used only indoor and in a dry environment which is free of dirt, oil and other pollutions. -
Page 4: Instructions For Using Piezoelectrical Elements And Power Amplifiers
5. Instructions for using piezoelectrical elements and power amplifiers • High power piezoelectric actuators from piezosystem jena are controlled by voltages up to 1000V. These values can be quite hazardous. Therefore, read the installation instructions carefully and only authorized personal should handle the power amplifier. -
Page 5: Safety Instructions
Caution! Shock forces may damage the built-in ceramic element in the actuator. Please avoid such forces, and handle the units with care, otherwise the guarantee will be lost. 6. Safety instructions 6.1. Icons RISK OF ELECTRIC SHOCK! Indicates that a risk of electric shock is present and the associated warning should be observed. -
Page 6: Installation, Power Supply
• Do not place any heavy objects on any cables (e.g. power cords, sensor cables, actuator cables). Damage may cause malfunction or shock or fire! • Do not place the units on a sloping or unstable cart, stand or table as they may fall or not work accurately. -
Page 7: Maintenance And Inspection
• Plug the power cord completely in the grounding equipment conductor power sockets so that it cannot be lost inadvertently. • Leave sufficient space around the power plug so that it can be unplugged easily. If objects are placed around the power plug, you will be unable to unplug it in an emergency. -
Page 8: How To Operate The Hpa1000/10
8. How to operate the HPA1000/10 8.1. Common introduction The amplifier HPA1000/10 is designed to drive piezo actuators in high power applications. The HPA1000/10 works as a switching voltage amplifier with internal energy recovery. The Amplifier includes a current limitation and is short circuit proof. -
Page 9: Technical Data
8.2. Technical data supply voltage range 90-240V AC / 50-60Hz max. input power 1000W F1, F2 – T10L/250V IEC 60127-2 fuses output current * note 1 max.10A output voltage 0...1000V typ. nonlinearity of output voltage <1% number of channels small signal bandwidth * note 2 >4 kHz (@ CL=1µF, amplitude 50Vss) output ripple * note 3 typ. -
Page 10: Setup And Operation
8.3. Setup and operation 8.3.1. Operating elements and interfaces Power switch HV ready indicator LED over temperature indicator LED short circuit indicator LED “MOD” modulation input “MON” monitor output “OFFSET” potentiometer for offset “OUT” actuator connector, high voltage output Display for output voltage Phone: +49 3641 66880 •... -
Page 11: Actuator Connecting
Power plug X1 Remote Interface X2 Grounding bolt M6 8.3.2. Actuator connecting RISK OF ELECTRIC SHOCK! Before you connect or disconnect the actuator, be sure that the amplifier is switched “OFF” and the power cord is disconnected from the wall outlet. When disconnecting: Wait at least 10 seconds from switching “OFF”... -
Page 12: Power Switch
RISK OF ELECTRIC SHOCK! Accomplish a second ground connection between the actuator casing and the amplifier grounding bolt on rear side. Use therefore a green/yellow wire, e.g. with 14 AWG or 2.5 mm² wire cross section. When the actuator is built in a machine, the grounding can also be done by grounding the whole structure and grounding the amplifier by a grounded wall outlet and a faultless power cord. -
Page 13: Modulation Input (Mod)
8.3.5. Modulation input (MOD) The modulation input accepts control voltages from -10V...+10V, where 0V...10V internal control voltage results in an output voltage from 0V...1000V. The offset value from “OFFSET” potentiometer is internally added to modulation input. 8.3.6. Monitor output (MON) The monitor output shows the output voltage divided by 100. -
Page 14: Grounding Bolt
use power cord must have a conductor cross section at least 1,5mm². The length should not exceed 3m. It’s recommended to use the original provided power cord. 8.3.11. Grounding bolt PREVENT RISK OF ELECTRIC SHOCK! The rear side grounding bolt must be used to install a safety grounding connection between amplifier and the high power actuator housing. -
Page 15: Pin Assignments
8.4. Pin assignments 8.4.1. Remote interface X2 9 pole d-sub connector, female function remark on/off - input on/off + input not used temperature overload switch, NC temperature overload switch, NC overload switch, NC overload switch, NC HV ready switch, NO HV ready switch, NO 8.4.2. -
Page 16: Notes
9. notes Phone: +49 3641 66880 • Fax: +49 3641 668866 • info@piezojena.com • http://www.piezojena.com...
