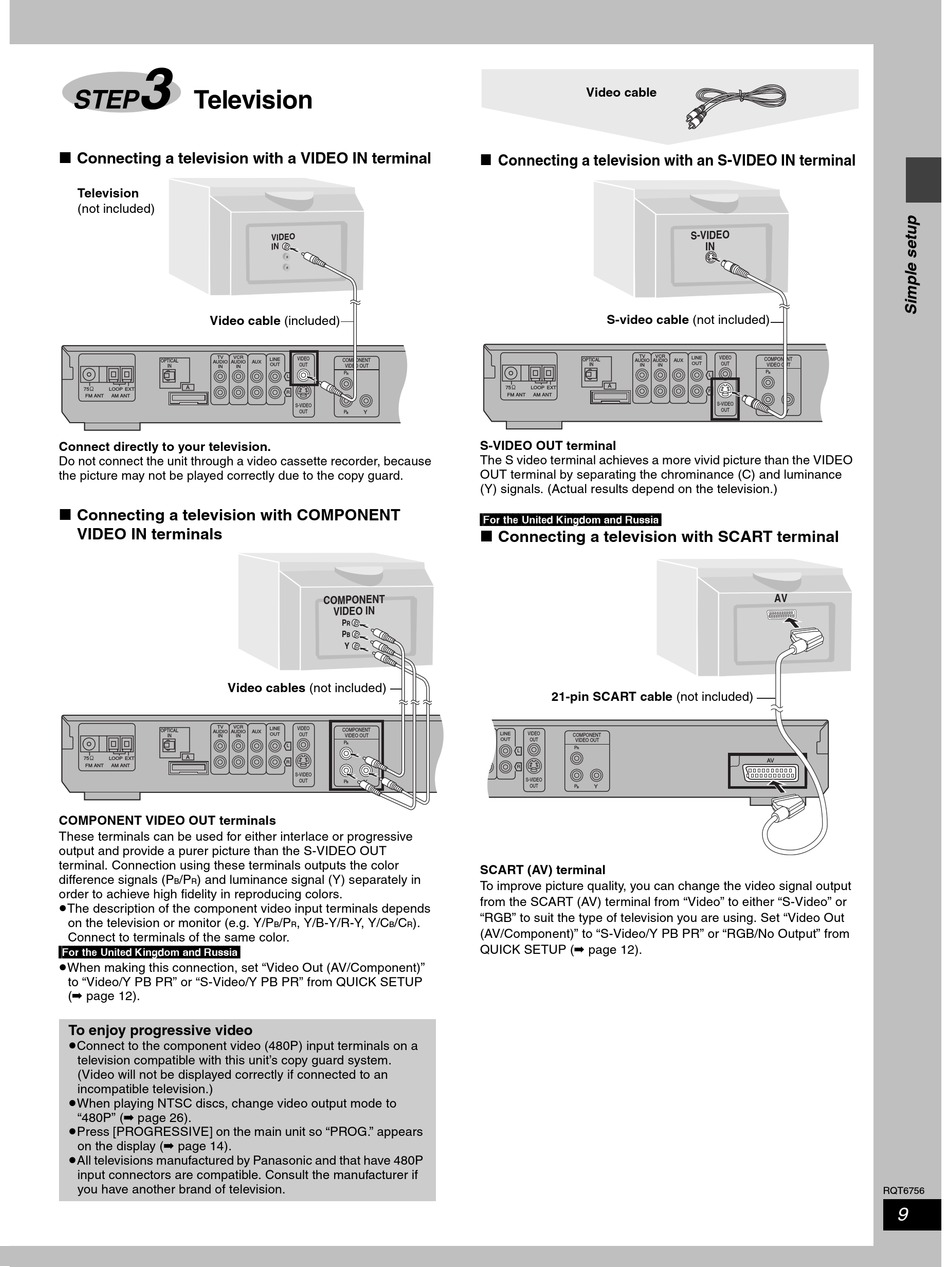

Step3 Television - Panasonic SC-HT700 Operating Instructions Manual

3
STEP
Television
∫ Connecting a television with a VIDEO IN terminal
Television
(not included)
Video cable (included)
TV VCR
OPTICAL AUDIO AUDIO
IN IN IN
A
h
75 LOOP EXT
FM ANT AM ANT
Connect directly to your television.
Do not connect the unit through a video cassette recorder, because
the picture may not be played correctly due to the copy guard.
∫ Connecting a television with COMPONENT
VIDEO IN terminals
Video cables (not included)
TV VCR
OPTICAL
AUDIO AUDIO
IN IN IN
A
h
75 LOOP EXT
FM ANT AM ANT
COMPONENT VIDEO OUT terminals
These terminals can be used for either interlace or progressive
output and provide a purer picture than the S-VIDEO OUT
terminal. Connection using these terminals outputs the color
difference signals (P /P ) and luminance signal (Y) separately in
B R
order to achieve high fidelity in reproducing colors.
≥The description of the component video input terminals depends
on the television or monitor (e.g. Y/P
Connect to terminals of the same color.
[For\the\United\Kingdom\and\Russia]
≥When making this connection, set "Video Out (AV/Component)"
to "Video/Y PB PR" or "S-Video/Y PB PR" from QUICK SETUP
(➡ page 12).
To enjoy progressive video
≥Connect to the component video (480P) input terminals on a
television compatible with this unit's copy guard system.
(Video will not be displayed correctly if connected to an
incompatible television.)
≥When playing NTSC discs, change video output mode to
"480P" (➡ page 26).
≥Press [PROGRESSIVE] on the main unit so "PROG." appears
on the display (➡ page 14).
≥All televisions manufactured by Panasonic and that have 480P
input connectors are compatible. Consult the manufacturer if
you have another brand of television.
VID EO
IN
VIDEO
LINE
COMPONENT
AUX
OUT OUT
VIDEO OUT
P
R
L
R
S-VIDEO
OUT
P Y
B
COM PONE NT
VIDE O IN
P
R
P
B
Y
LINE VIDEO
COMPONENT
AUX
OUT OUT
VIDEO OUT
P
R
L
R
S-VIDEO
OUT
P Y
B
/P , Y/B-Y/R-Y, Y/C /C ).
B R B R
Video cable
∫ Connecting a television with an S-VIDEO IN terminal
S-video cable (not included)
TV VCR
OPTICAL
AUDIO AUDIO
IN
IN IN
A
75 h LOOP EXT
FM ANT AM ANT
S-VIDEO OUT terminal
The S video terminal achieves a more vivid picture than the VIDEO
OUT terminal by separating the chrominance (C) and luminance
(Y) signals. (Actual results depend on the television.)
[For\the\United\Kingdom\and\Russia]
∫ Connecting a television with SCART terminal
21-pin SCART cable (not included)
VIDEO
LINE
COMPONENT
AUX
OUT
OUT
VIDEO OUT
P
R
L
R
S-VIDEO
OUT
P Y
B
SCART (AV) terminal
To improve picture quality, you can change the video signal output
from the SCART (AV) terminal from "Video" to either "S-Video" or
"RGB" to suit the type of television you are using. Set "Video Out
(AV/Component)" to "S-Video/Y PB PR" or "RGB/No Output" from
QUICK SETUP (➡ page 12).
S-VI DEO
IN
LINE VIDEO
COMPONENT
AUX
OUT OUT
VIDEO OUT
P
R
L
R
S-VIDEO
OUT P Y
B
AV
AV
RQT6756
9
