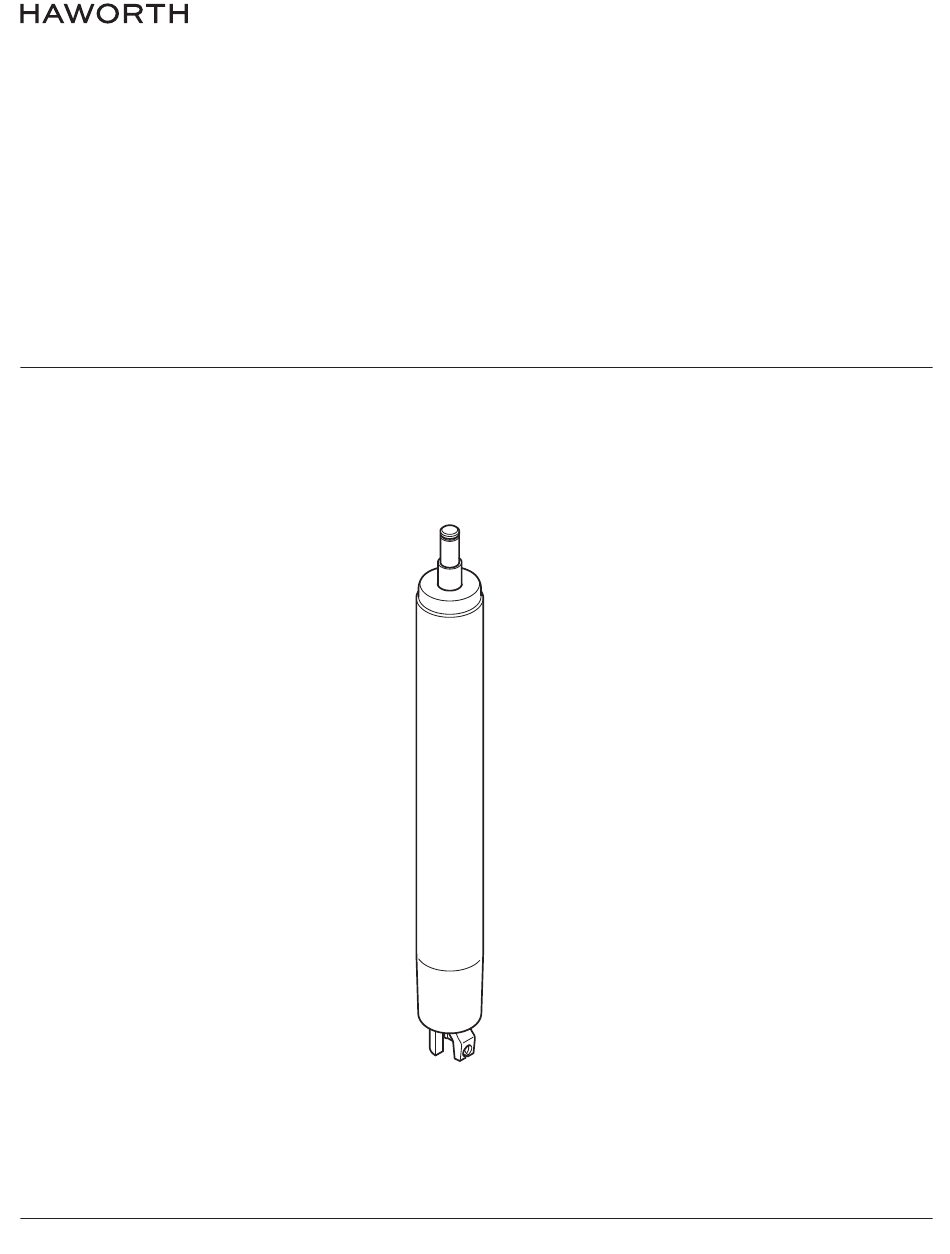

- Page 1 Fern Assembly Instructions Cylinder Service Follow all the steps carefully before using your Chair. For assembly assistance, visit haworth.com, call 800 426 8562, or email support@haworth.com...
- Page 2 Fern Assembly Instructions Tools Required CYLINDER REPLACEMENT Remove seat (E) (Refer to instructions 7029-9976 and follow steps 1-7) LIFT FRONT UP Remove base (Q) Customer Service: 800 426 8562 E.C.O. No 5_11905Q Part No 7029-9994 Rev 1 Page of 4...
- Page 3 Fern Assembly Instructions Remove cylinder (R1) Slide tool (S) on Tighten tool (S) Tighten setscrews evenly cyclinder (R1) until cyclinder (R1) is removed Customer Service: 800 426 8562 E.C.O. No 5_11905Q Part No 7029-9994 Rev 1 Page of 4...
- Page 4 Fern Assembly Instructions Remove tool (S) and discard cylinder (R1) Install new cylinder (R) Install seat (E) (Refer to instructions 7029-9976 and reverse steps 1-7) Install base (Q) (Refer to Step 2) Apply pressure to seat cylinder (E) Customer Service: 800 426 8562 E.C.O.
