DSE9476 OPERATOR MANUAL
Document Number: 057-282
Author: Bedig Boghossian
ISSUE: 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DSE9476 and is the answer not in the manual?

Questions and answers

Summary of Contents for DSE DSE9476

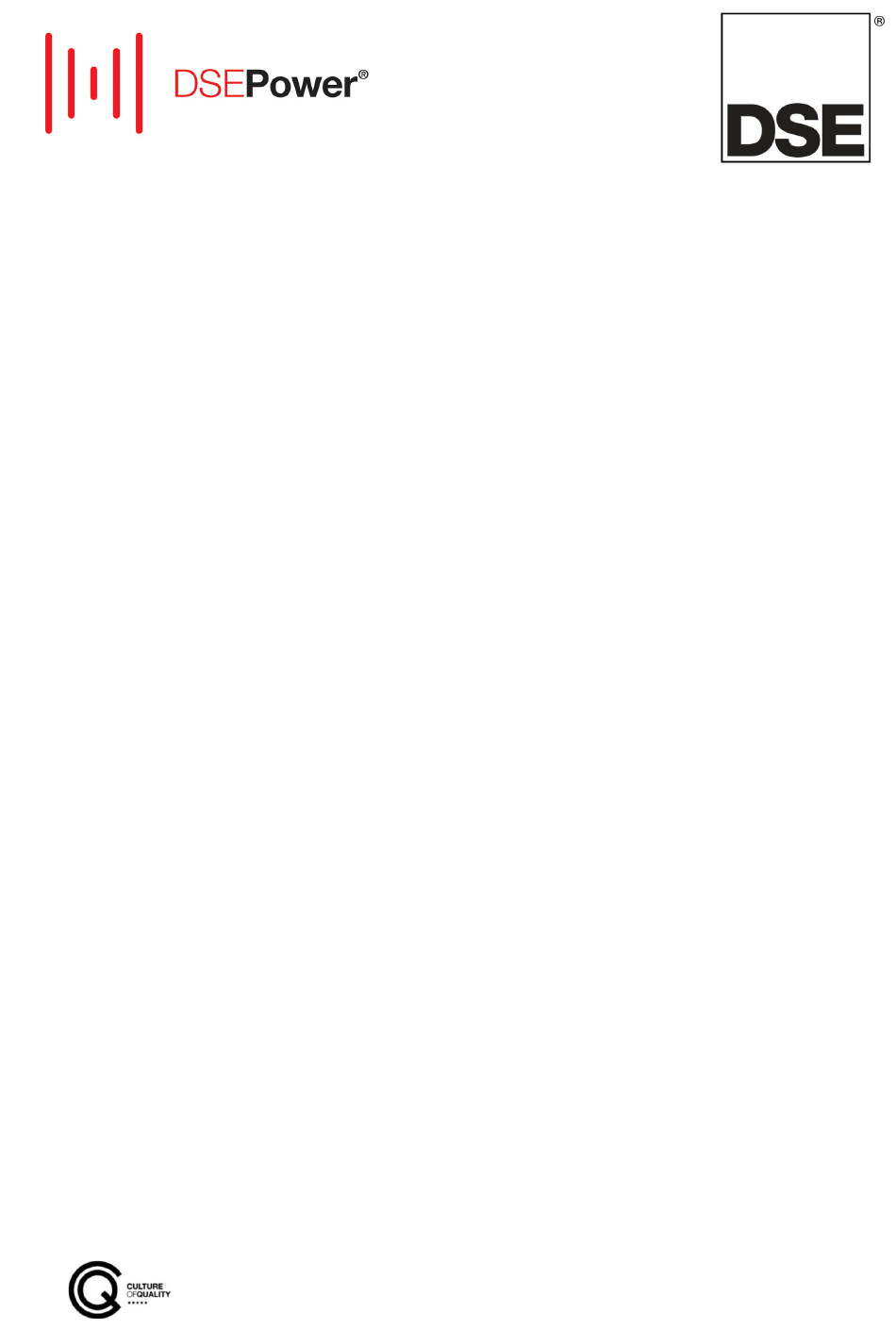

  • Page 1 DEEP SEA ELECTRONICS PLC DSE9476 OPERATOR MANUAL Document Number: 057-282 Author: Bedig Boghossian ISSUE: 1...
  • Page 2 DSE9476 Operator Manual Deep Sea Electronics PLC Highfield House Hunmanby North Yorkshire YO14 0PH ENGLAND Sales Tel: +44 (0) 1723 890099 Sales Fax: +44 (0) 1723 893303 E-mail: sales@deepseaplc.com Website: www.deepseaplc.com DSE9476 Operator Manual © Deep Sea Electronics PLC All rights reserved. No part of this publication may be reproduced in any material form (including...
  • Page 3: Table Of Contents

    DSE9476 Operator Manual TABLE OF CONTENTS Section Page INTRODUCTION ....................4 BIBLIOGRAPHY ......................... 4 1.1.1 INSTALLATION INSTRUCTIONS ................. 4 1.1.2 MANUALS ........................4 SPECIFICATIONS ....................5 ELECTRICAL SPECIFICATIONS ..................5 CHARGE FAIL RELAY ....................... 6 SPECIFICATIONS ......................6 2.3.1 AC INPUT AND DC OUTPUT ..................6 2.3.2...
  • Page 4: Introduction

    The DSE9476 includes protected outputs, intelligent charging and power supply operation with a robust enclosure. 1.1 BIBLIOGRAPHY This document refers to and is referred to by the following DSE publications, be obtained from the DSE website www.deepseaplc.com 1.1.1 INSTALLATION INSTRUCTIONS Installation instructions are supplied with the product in the box and are intended as a ‘quick start’...
  • Page 5: Specifications

    Specifications 2 SPECIFICATIONS 2.1 ELECTRICAL SPECIFICATIONS Parameter Nominal AC Input Voltage (V) 90 V 110 V to 277 V 305 V 310 V (max AC Input Voltage Surge Limit duration 500 The unit withstands this limit but not operational Operating Temperature -30 C 80 C Input Frequency (Hz)
  • Page 6: Charge Fail Relay

    2.3.1 AC INPUT AND DC OUTPUT NOTE: When Deep Sleep Mode is enabled in the DSE9476, the unit’s current consumption from the battery is reduced when mains is not available, therefore extending battery life. The Deep Sleep Mode feature is user configurable via the PC software please refer to DSE Publication: 057-159 DSE94xx Battery Charger Series Configuration Suite PC Software Manual for further details.
  • Page 7: Battery Temperature Compensation

    Specifications 2.3.2 BATTERY TEMPERATURE COMPENSATION NOTE: For further details of PC Configuration, refer to DSE Publication: 057-159 DSE94xx Battery Charger Series Configuration Suite PC Software Manual. When suitably configured, the external PT1000 temperature sensor is used to monitor battery temperature. As battery temperature increases, the output voltage is lowered as configured to suit the battery requirements.
  • Page 8: Ambient Temperature Dependent Current Derating

    Specifications 2.3.3 AMBIENT TEMPERATURE DEPENDENT CURRENT DERATING The battery charger is rated at full current to 50 ºC. As the temperature increases above 50 ºC, the maximum output current derates to keep the charger within operational parameters and to prevent overheating of the device.
  • Page 9 Specifications 2.3.3.2 TEMPERATURE DERATING (AC VOLTAGE BELOW 110 V AND AMBIENT TEMP ABOVE 50 ºC) Output Current Derating Curve (90 < ACV < 110V) and Ambient Temperature >= 50 Ambient Temperature ( Example: For AC voltage of between 90 V and 110 V, if the ambient termperature is 50 ºC, the charger is limited to 70% of it’s configured current rating.
  • Page 10 Specifications 2.3.3.3 TEMPERATURE DERATING (AC VOLTAGE BELOW 110 V AND AMBIENT TEMP BELOW 50 ºC) Derating Output Current Curve 90 V<Vin<110 V and Ambient Temperature < 50 1 1 0 1 0 0 1 0 0 1 0 2 1 0 4 1 0 6 1 0 8 1 1 0...
  • Page 11: Input Power To Output Power Efficiency

    Efficiency of the battery charger is important in terms of minimising power losses in the battery charger and also in terms of the heat generated by the battery charger. The following charts show the high efficiency of the DSE9476. 2.3.4.1...
  • Page 12: Dimensions And Mounting

    Specifications 2.4 DIMENSIONS AND MOUNTING NOTE: DSE9476 are designed to be mounted with the base to a vertical surface with the terminal strips running horizontally. Parameter Comment Weight 1.8 kg Case Dimensions 183 mm x 248 mm x 76 mm (7.19”...
  • Page 13: Applicable Standards

    Specifications 2.5 APPLICABLE STANDARDS Standard Description IP20 BS EN 60529 Protected against penetration by solid objects with a diameter of more (Degrees of protection than 12 mm. Fingers or similar objects prevented from approach. provided by enclosures) No protection against water Enclosure type 1 NEMA rating Provides a degree of protection against contact with the enclosure...
  • Page 14: Communication Port Usage

    Specifications 2.6 COMMUNICATION PORT USAGE NOTE: For further details of PC Configuration, refer to DSE Publication: 057-159 DSE94xx Configuration Suite PC Software Manual. Communication Specification USB 2.0 Device for connection to PC running DSE Configuration Suite USB Port Max distance 6 m (20 feet)
  • Page 15: Usb Connection

    USB CONNECTION The USB port is provided to give a simple means of connection between a PC and the battery charger. Using the DSE Configuration Suite Software, the operator is then configure and monitor the state of the battery charger.
  • Page 16: Rs485

    One advantage of the RS485 interface is the large distance specification (1.2 km) when using Belden 9841 (or equivalent) cable. This allows for a large distance between the battery charger and a PC running the DSE Configuration Suite software. The operator is then able to view the various operating parameters.
  • Page 17: Installation

    (even when a DC charging alternator is fitted). 3.1 BATTERY SUITABILITY The standard DSE9476 charger is factory set by DSE to suit Lead Acid batteries but can be altered for other battery types using the DSE Configuration Suite PC software Care should be taken to ensure the batteries connected are of the correct ‘technology’...
  • Page 18: User Connections

    Installation 3.2 USER CONNECTIONS NOTE: For further details of PC Configuration, refer to DSE Publication: 057-159 DSE94xx Configuration Suite PC Software Manual. 3.2.1 AC SUPPLY CONNECTIONS The battery charger is protected by an internal fuse. However to protect the A.C. supply cables should a fault arise between the supply and the connection to the battery charger, it is recommended to fit a fuse in the supply line as close to the source of supply as possible.
  • Page 19: Rs485 And Temperature Sensor Connections

    Installation 3.2.3 RS485 AND TEMPERATURE SENSOR CONNECTIONS Terminal Function Recommended Comments Size Recommended Belden RS485 screen 0.5 mm² (AWG RS485 SCR 9841 cable. terminal. Ensure correctly fitted RS485 B (+) 0.5 mm² (AWG RS485 B 120 Ω termination terminal. resistors at the first and RS485 A (-) 0.5 mm²...
  • Page 20: Typical Wiring Diagram

    Installation 3.3 TYPICAL WIRING DIAGRAM 057-282 ISSUE: 1 Page 20 of 30...
  • Page 21: Indications

    Indications 4 INDICATIONS DANGER OF DEATH: LIVE PARTS exist within the DSE9476 enclosure. The enclosure cover must not be removed when connected to an AC supply. Three LEDs are provided to show operating status and fault conditions. These are detailed in the following sections.
  • Page 22: Status

    Indications 4.1 STATUS LED Designation Condition Status FAULT 1 FAULT 2 Charger Off Green Battery not Detected (Battery Detection Mode) Constant Flashing Flashing Green Battery Connected (Battery Detection Mode) Constant Constant Constant Yellow Bulk (Boost) Charge in progress Constant Yellow Absorption Charge in progress Flashing See Below for Fault Conditions...
  • Page 23: Operation

    Operation 5 OPERATION The DSE9476 is a battery charger, DC power supply, or both at the same time. For example,one application is to power local control panels and charge panel batteries or generator engine starter batteries at the same time.
  • Page 24: Digital Input

    If no battery is connected to the output terminals, the battery charger will operate as a DC power supply only, current limit is factory set to 20 A and is adjustable using the DSE Configuration Suite PC Software. See the section entitled Specification elsewhere in this manual for further output specifications.
  • Page 25: Charge Mode

    5.4.2 ABSORPTION This mode is active for the duration of the Absorption Timer. This is adjustable using the DSE Configuration Suite PC Software. Absorption mode is used to complete the charging process, bringing the battery to 100% charged status.
  • Page 26: Float Charge

    DC charging alternator fitted, the battery is quickly recharged when the generator is running. Should the generator stop before the battery is fully recharged, the DSE9476 Battery Charger continues to recharge the battery until it is fully charged.
  • Page 27: Fault Diagnosis

    Fault Diagnosis 6 FAULT DIAGNOSIS Nature of Problem Suggestion Check that the incoming AC supply is correctly connected and within limits and check the integrity of any external fuse that may be fitted. Disable the AC supply and check the integrity of the internal AC The charger is not supply fuse.
  • Page 28: Warranty

    Maintenance, Spares, Repair, Servicing, Warranty and Disposal 7 WARRANTY DSE provides limited warranty to the equipment purchaser at the point of sale. For full details of any applicable warranty, you are referred to your original equipment supplier (OEM). 8 DISPOSAL 8.1 WEEE (WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT)
  • Page 29 This Page is Intentionally Blank.
