DSE DSE9130 Operator's Manual

DSE

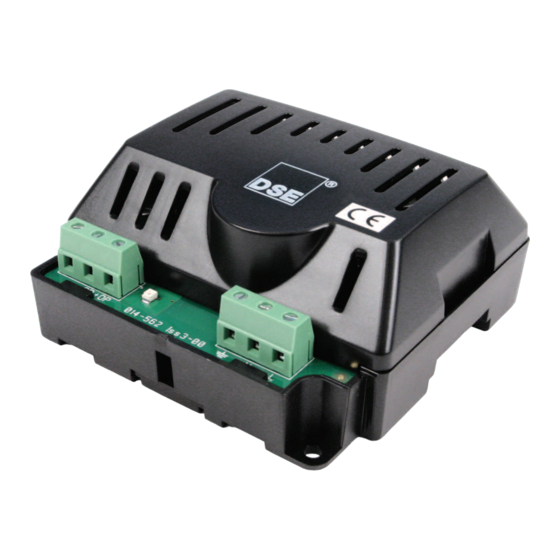

The 2 Amp, 3 Amp and 5 Amp
Battery Chargers have been
designed to be permanently
connected to a battery, keeping it
charged to maximum capacity.
The chargers can be either
mounted via DIN rail or to the
chassis, using the fixing holes that
are built into the case. The chargers
stylish design includes an LED
indicator on the front that shows
when the charger is in a normal or
overload condition.
FEATURE LIST TO SUIT A WIDE VARIETY
OF APPLICATIONS
CHARGE OUTPUT
COMPATIBLE WITH ALL DSE MODULES
DSE9000
CHARGE BOOST INPUT
(Not available for DSE9150 & DSE9155)
The chargers will continue to
operate during cranking and
running. All chargers can accept
multiple AC voltage connections.
The DSE battery chargers are
expertly designed using high-grade
components and capacitors
allowing the units to function more
efficiently, providing a longer and
more reliable life-span than other
chargers in their class. Their in-
built robustness makes them ideal
for the rigours of a wide variety of
markets including heavy and light
industrial environments.
1
AC POWER SUPPLY
N/C VOLT FREE CHARGE FAIL OUTPUT
(Not available for DSE9150)
ENVIRONMENTAL TESTING STANDARDS
ELECTRO-MAGNETIC COMPATIBILITY
BS EN 61000-6-2
EMC Generic Immunity Standard for
the Industrial Environment
BS EN 61000-6-4
EMC Generic Emission Standard for
the Industrial Environment
TEMPERATURE
BS EN 60068-2-1
o
Ab/Ae Cold Test -30 C
BS EN 60068-2-2
o
Bb/Be Dry Heat +55 C
VIBRATION
BS EN 60068-2-6
Ten sweeps in each of three
major axes
5 Hz to 8 Hz @ +/-7.5 mm,
8 Hz to 500 Hz @ 2 gn
HUMIDITY
BS EN 60068-2-30
o
Db Damp Heat Cyclic 20/55 C
@ 95% RH 48 Hours
BS EN 60068-2-78
o
Cab Damp Heat Static 40 C
@ 93% RH 48 Hours
SHOCK
BS EN 60068-2-27
Three shocks in each of three major axes
15 gn in 11 mS
1ph
N
1
ISSUE 5
®
