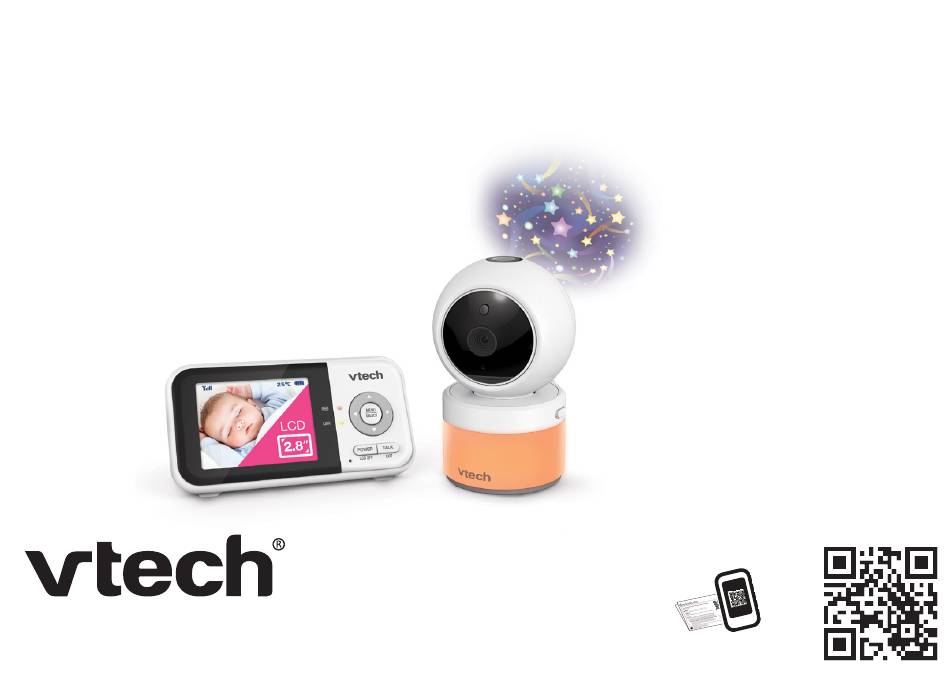

- Page 1 BM3800N Go to auphones.vtech.com to register your product for BM3800N-2 warranty support and the latest VTech product news. Full Colour Pan & Tilt Video Monitor For more support information Quick start guide...
- Page 2 Electromagnetic fields (EMF) 16. This product should not be placed in any area where This VTech product complies with all standards regarding proper ventilation is not provided. Slots and openings electromagnetic fields (EMF). If handled properly and in the back or bottom of this product are provided for according to the instructions in this user’s manual, the...
- Page 3 What’s in the box Quick start guide 1 set for BM3800N 2 sets for BM3800N-2 Connect the baby monitor NOTES NOTE • The rechargeable battery in the parent unit is built-in. • Use only the power adapters supplied with this product.
- Page 4 Connect the baby monitor (cont’d) Charge the parent unit battery When you have connected and turned on the parent unit, the battery will be charged automatically. Notes NOTES NOTE • Before using the baby monitor for the first time, charge the parent unit battery for 12 hours. When the parent unit battery is fully charged, the battery icon becomes solid •...
- Page 5 Positioning the baby monitor Caution • Keep the baby unit out of the reach of your baby. Never place or mount the baby unit inside the baby’s crib or playpen. > 3ft (1m) ≥ 3ft (1m) < 3ft (1m) Note NOTES NOTE •...
- Page 6 Basic operation - Parent unit Use the menu Press MENU to enter the menu, or save a setting. You can use the parent unit for advanced settings or operations, such as to play or stop the baby unit’s lullaby, or to adjust the baby unit’s sound sensitivity.
- Page 7 Press MENU when in idle mode. Press MENU when in idle mode. Zoom Adjust parent unit speaker volume Press to choose Press to choose Press MENU when in idle mode. Press MENU when in idle mode. Press or to select desired volume Press or to choose Press...
- Page 8 For operations and guides to help you use your video monitor, and for the latest information and support, go and check our online help topics and online FAQs. Use your smartphone or mobile device to access our online help. https:/ /auphones.vtech.com/baby-safe-and-sound/ • Go to video-monitors/579 ;...
- Page 9 Patrol mode • Displays when the parent unit is in PATROL mode (For BM3800N-2 only). Current view status • Displays the baby unit number of the baby unit that is being viewed.
- Page 10 Main menu icons Main Sub-menu menu Volume Parent unit speaker volume • Adjust the parent unit’s speaker volume. Settings Brightness • Adjust the parent unit’s LCD screen brightness level. Screen off timer • The parent unit display will dim to conserve energy after your chosen amount of time of inactivity.
- Page 11 Main Sub-menu menu Sound Detection Sound-activated screen • When it is on, and the baby unit detects no sound, the parent unit screen stays off to save power. Once a sound is detected, the parent unit screen and speaker turns on automatically, and you can see and hear your baby.
- Page 12 Main Sub-menu Main Sub-menu menu menu Lullaby Monitoring Mode (For BM3800N-2 only) Single-cam mode • View the video from your • Select one of the four selected baby unit’s camera. melodies to play, or stop a lullaby. Lullaby volume • Adjust the baby unit’s speaker volume when playing the lullaby.
- Page 13 The temperature Warning icons and messages The battery is empty and detected by the baby unit needs to be recharged. is lower than the desired Temperature Battery low at The temperature temperature alert range. too low The battery is empty and detected by the baby unit Parent Unit needs to be recharged.
- Page 14 VTech; or where the product has been adapting to the dark environment.
- Page 15 Night vision Sound activated screen and audio When Sound activation is on, the parent unit screen stays off The baby unit has infrared LEDs that allow you to see your baby clearly at to save power when the baby unit detects no sound. night or in a dark room.
- Page 16 For BM3800N-2 only Status check - Two baby units If you are viewing baby unit , the POWER LED light of baby unit turns on. As baby unit is not being viewed, its POWER LED light flashes. Note NOTES NOTE •...
- Page 17 Mount the baby unit on dry wall (optional) Notes 1. Place the wall mount bracket on a NOTES NOTE 2. If you drill the holes into a stud, go wall and then use a pencil to mark to step 3. •...
- Page 18 24 months from date of purchase. VTech does not warrant that the product will be free from defects if defects are caused by an accident, misuse, abuse, improper installation or operation, vermin infestations, lack of reasonable care, unauthorised modification, loss of parts, tampering or attempted repair by a person not authorised by VTech;...
- Page 19 IMPORTANT NOTE: THIS IS NOT A PRODUCT RETURN OR SERVICE ADDRESS – PLEASE CONTACT TECHELP BY PHONE OR EMAIL FOR PRODUCT AND WARRANTY SUPPORT. NO LIABILITY WILL BE ACCEPTED BY VTECH FOR PRODUCTS RETURNED TO THIS ADDRESS UNDER THIS VOLUNTARY PRODUCT WARRANTY.
- Page 20 Parent unit: 3.6V 2600mAh, 9.36Wh Li-ion battery Baby unit power adapter: Output: 5V DC @ 1A Parent unit power adapter: Output: 5V DC @ 1A Specifications are subject to change without notice. © 2022 VTech Telecommunications (Australia) Pty Limited. All rights reserved. 04/22. BM3800N_AUS_QSG_V2.
