Table of Contents

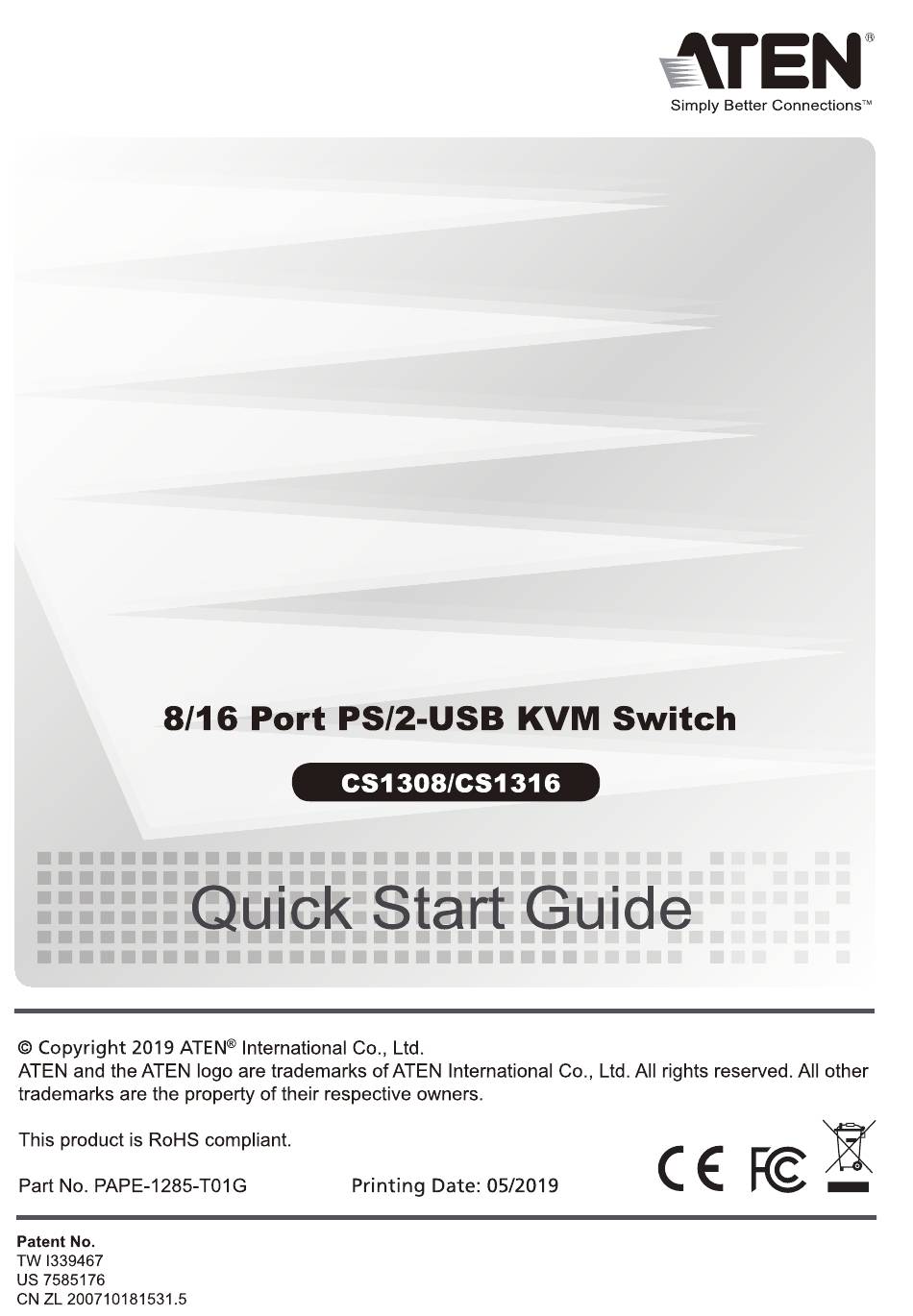

ATEN
Simply
Better Connectionsw
8/16
Port
PS/2-USB
KVM
Switch
CS1308/CS1316
Quick
Start
Guide
O Copyright 2019 ATENO International Co., Ltd
ATEN and the ATEN logo are trademarks of ATEN International Co., Ltd A1
rights reserved. A1
other
trademarks are the property Oftheir respective owners
This product is RoHS compliant.
Part
No. PAPE-1285-T01G
Printing
Date: 05/2019
Patent
No.
TW
1339467
US
7585176
CN ZL
200710181531.5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS1308 and is the answer not in the manual?

Questions and answers

Related Manuals for ATEN CS1308

Summary of Contents for ATEN CS1308

  • Page 1 CS1308/CS1316 Quick Start Guide O Copyright 2019 ATENO International Co., Ltd ATEN and the ATEN logo are trademarks of ATEN International Co., Ltd A1 rights reserved. A1 other trademarks are the property Oftheir respective owners This product is RoHS compliant.

  • Page 2: Package Contents

    Package Contents 1 CS1308 / CS1316 KVM Switch 1 Console cable 1 Firmware Upgrade cable 1 Foot Pad set (4 pads) 1 Power Adapter I Mounting Kit 1 User Instructions Front View Rear View...
  • Page 3 Hardware Installation Rack Mounting —Front...

  • Page 4: Single Level Installation

    Hardware Installation Single Level Installation To prevent damar toyour installation from power surgesor statice ectriclty,it isimportant that all connecteddevices are properlygrounded OSD Port Switching I: 2 LIST LOUT, ADMINISTRATOR L 1ST : ALL NAME 20 4...
  • Page 5 CS1308/CS1316 8/16 Port PS/2-USB KVM Switch Quick Start Guide Requirements Console The following hardware components are required for the KVM console: • A VGA, SVGA, or multisync monitor capable of displaying the highest resolution provided by any computer in the installation •...

  • Page 6: Operation

    Use KVM cable sets, to connect any available KVM port to the keyboard, video and mouse ports of the computer you are installing Plug the power adapter cable into the CS1308 / CSI 316 power jack, then plug the power adapter into an AC power source.

  • Page 7: Number Lock And Minus Keys

    2. OSD Port Switching O To bring up the OSD Main Screen, tap the Scroll Lock key twice The OSD incorporates a two level (administrator / user) password system. Before the OSD main screen displays, a login screen appears requiring a password If this is the first time that the OSD is used, or if the password function has not been set, simply press [Enter].

  • Page 8: Online Registration

    Ia souris pour reprendre la commutation. North America: Active ou désactive Ie bip sonore 1-888-999-ATEN (ATEN TECH) [Echap] ou 1-732-356-1703 (ATEN NJ) Quitte Ie mode de raccourcis clavier. Barre d'es [Fl] Choisit le systéme d'exploitation...
