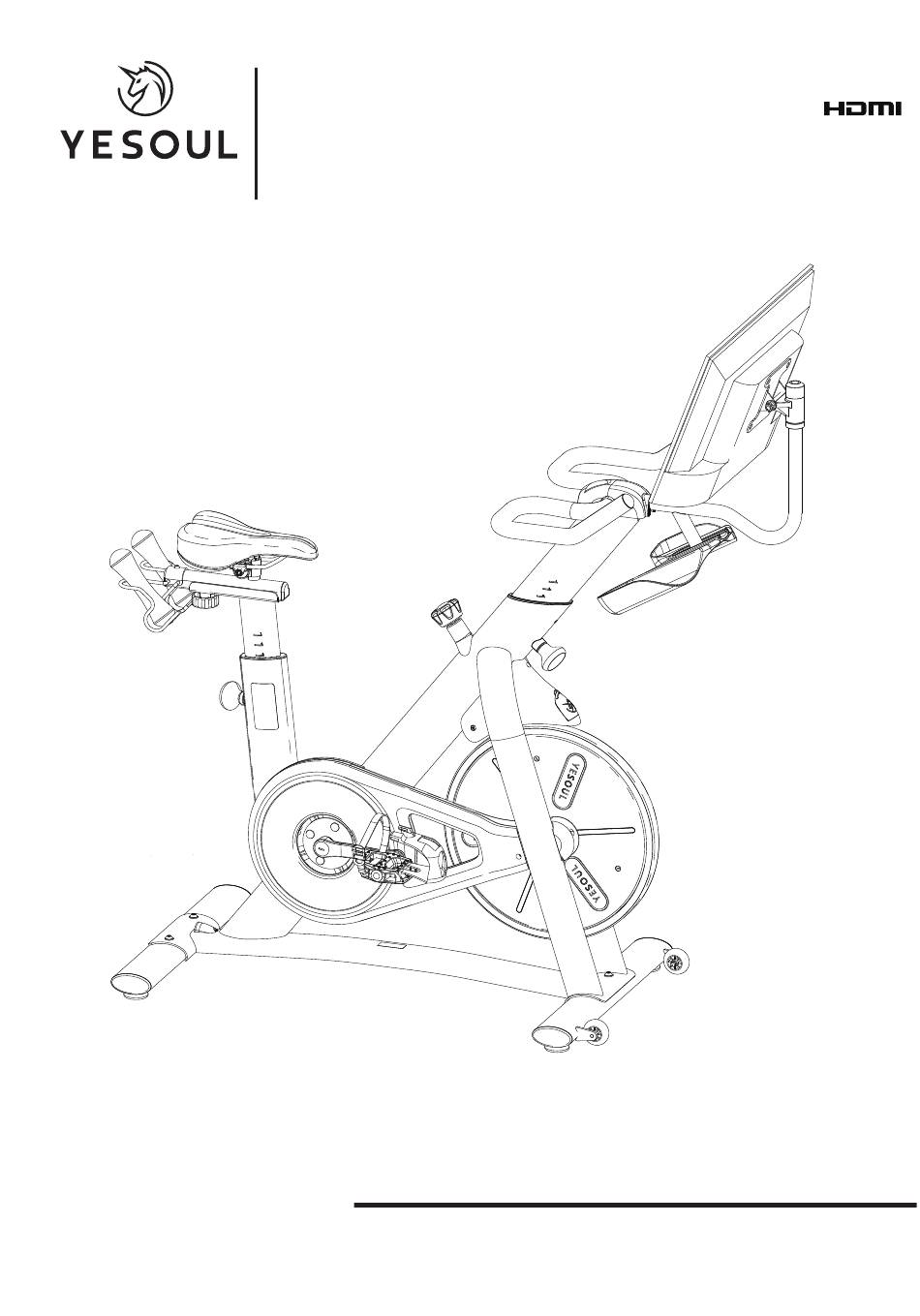

- Page 1 YESOUL Bike ke e p th i s m a n u al . YESOUL Smart Cycling Bike Product model: YS-001 G1S PLUS Product Manual...
-
Page 2: Product Parameters
Product Parameters Screen size 23.6 inch (1366*768 pixels) Supporting software version Android 5.1 Resistance system Magnetron resistance system Drive mode Belt drive Power supply input The device only supports Wi-Fi 2.4G&BT network connection, wireless connection do not use Wi-Fi 5G network connection Height limit 150 ~ 188cm Rated maximum load... -
Page 3: Important Safety Instructions
Important Safety Instructions Please read them carefully. Improper use may result in personal injury or death! 1. Make sure that the saddle height adjustment knob is secured correctly, and will not affect motion during exercise. 2. Keep children and pets away from this product. This product is for those over 16 years old only. 3. - Page 4 Installation Guide - List of Parts Name Quantity Picture Screen connecting cable Frame ① ② 2×hexagon socket Front tube button head screw M8×45/washer ③ 2×hexagon socket Rear tube button head screw M8×45/washer ④ Pedal set left/right (right) (left) ⑤ Handlebar assembly Gasket with M8*16 pre - locking hex socket ⑥...
- Page 5 Installation Guide - List of Parts Name Quantity Picture ⑪ Dumbbell rack ⑫ Dumbbell M6x12 hexagon bolts x4 ⑬ Head tube ⑭ Screen fastener ⑮ Bottle holder ⑯ instructions instructions Name Quantity Picture Open-ended wrench, 14-17# L-shaped head six Corner wrench, 4# L-shaped head six Corner wrench, 5# L-type cross head...
- Page 6 Installation Guide STEP 2: Installation of bottom tube 1. Take L-type cross head hex wrench 6# (D) out of the ziplock bag. 2. Remove four hexagon socket button head screws (M8×45) and washers of the front tube 2 and rear tube 3 via the L-type cross head hex wrench 6# (D). Washer 3.
- Page 7 Installation Guide STEP 3: Installation of head tube 1. Screw out the adjustment knob as indicated by the arrow, and connect the screen connection cable in the head tube 13 to the cable in the bike 1 (as shown in the figure).
- Page 8 Installation Guide STEP 4: Installation of handlebar assembly 1. Remove the four M6×12 hexagon socket bolts pre-locked on the head tube1. 3. Align the holes at the connection of the handlebar assembly 5, and place the M6×12 bolts 1-2 (as shown in the figure) into the holes, and manually rotate the screws (at this point, do not screw them tightly);...
- Page 9 Installation Guide 4. Align the holes correctly, and put the M6×12 bolts 3-4 (as shown in the figure) into the holes, and screw them tightly respectively. Then, take one hexagon socket cap screw M6×35 10 from the part bag, and manually screw it into the corresponding hole.
- Page 10 Installation Guide STEP 5: Fix the Display 1. Use the L-type cross head hex wrench 6# (D) to remove the 4 screws pre-installed on the screen ⑧, as shown below. * Please put the screen on the desk flatly. Do not collide with the screen with hard objects to avoid screen damage! 2.
- Page 11 Installation Guideline 3. Use the L-type cross head hex wrench 6# (D) to remove the screws fixed on the support ⑥, and remove the knob’s upper cover; insert the pre-assembled TV from top to bottom into the sleeve, and use the tool D to put the removed parts back in order and tighten them;...
- Page 12 Installation Guide 1. Use the L-shaped head six corner wrench 4# (B) to remove the screws (M6×12) from the slide tube; 2. Put the dumbbell rack 11 on the slide tube and align the holes; 3. Manually install screws through the holes, and use the L-shaped head six corner wrench 4# (B) to lock.
- Page 13 Installation Guide (for reference only, subject to the actual product） STEP 8: Installation of pedal 1. Take the pedals from the package. 2. Distinguish left and right pedals. The right pedal is marked blue “R”, and the left pedal is marked red “L” (Pay attention to distinguish left and right pedals. If they are not installed correctly, crank threads will be damaged!) 3.
- Page 14 Installation Guide (for reference only, subject to the actual product） STEP 9: Installation of connection cable 1. Plug the cable of the power port (a) and signal port (b) of the display into the jack at the bottom of the back of the display. Make sure that the cable is inserted tightly.
- Page 15 Installation Guide (for reference only, subject to the actual product） Safety tips: Never insert the cable into the interface of the tablet or pull it out without cutting off the power supply. 360 degrees of rotation angles of the screen(Here, the L-type cross head hex wrench 6# (D) can be used to tighten/loose).
- Page 16 Step 4 - Start your Yesoul riding journey -When the calendar shows up on the screen of your bike, it means the connection is successful. -You can select any workout or riding mode in the APP and start your Yesoul riding journey.
-
Page 17: Monitor Specifications
Monitor Specifications 23.6" diagonal Size DLED direct Type Backlight 1366x768 Maximum resolution 1000:1 Contrast ratio(Typ) 14ms Response time(Typ) 16:09 Display scale ≥NTSC 62% Color Gamut(NTSC) ARM Cortex-A55/1.45GHz/Quad core CPU Frame Mali G31 MP2/Dual core RAM(DDR) ROM(Flash) 6W+6W Audio power(Output) 2T2R (MT7663BUN BL-M7663BU4 (IEEE 802.11a/b/g/n/ac) Bluetooth v5.1 2T2R 2.4GHZ/5GHz ) WIFI(Type) USB 2.0 RJ-45... - Page 18 Cast Cast to "YESOUL-xxxx" Please enable wireless projection feature, cast to "YESOUL-xxxx" Happy YESOUL — xxxx Happy YESOUL — xxxx...
- Page 19 Wired projection screen 1.Wired network connection Ethernet port Jack 2.Connect one end of the screen mirroring device to your phone and the other end to the HDMI port of the screen to mirror your phone's content on the screen. Jack Same screen device Reminder: Screen mirroring devices that support Android or IOS need to be purchased separately.
- Page 20 Five-Button Control Brightness+ 1. On/Off button: After power on, press once to turn on the device, and press again to turn off the device; 2. Volume button: Press the right button to increase the volume- volume+ volume, and press the left button to decrease the volume; on/off...
-
Page 21: Handlebar Height Adjustment
How to Adjust Bike 1 .Handlebar height adjustment: Turn the handle to the right with one hand, and hold the middle part of the handlebar with the other hand, and lift (or press) the handlebar to the desired position. Then turn the handle to the left until it is tightened. The head tube must not exceed the MAX mark during handlebar adjustment. - Page 22 How to Adjust Bike 3.Horizontal adjustment of saddle: Loosen the handle under the saddle, slide the saddle back and forth to the desired position, and tighten the knob as much as possible. Horizontal adjustment of saddle Loose Tight 4.Body level adjustment: There are four adjustment pads at the bottom of the front and rear pedal tubes.
- Page 23 How to Determine Correct Riding Posture 1. Setup of correct saddle position Saddle height Put the feet together, stand on one side of the saddle and adjust the saddle to the hip height (Fig. 1). Then site on the saddle, and step on the pedals forcibly until they are stopped at 6 o’ clock and the leg can be fully stretched (Fig.
- Page 24 How to Determine Correct Riding Posture 2. Setup of appropriate handlebar height Each user can set up the appropriate handlebar height based on his or her body height and riding experience. Recommendation: The handlebar should be slightly higher than the saddle for new users (Fig. 1) and flush with or slightly lower than the saddle for experienced users (Fig.
- Page 25 Company Name FUJIAN YESOUL HEALTH TECHNOLOGY CO., LTD. Product Name YESOUL BIKE G1S PLUS RM B616, NO.1 Building, Strait Economic and Trade Plaza， Fuzhou Free Trade Zone, Fujian Province (Free Trade Zone) Grade For Consumer Use Only ISO 20957-1:2007 ISO 20957-10:2007 Executive standard GB 17498.1-2008 GB 17498.10-2008...
