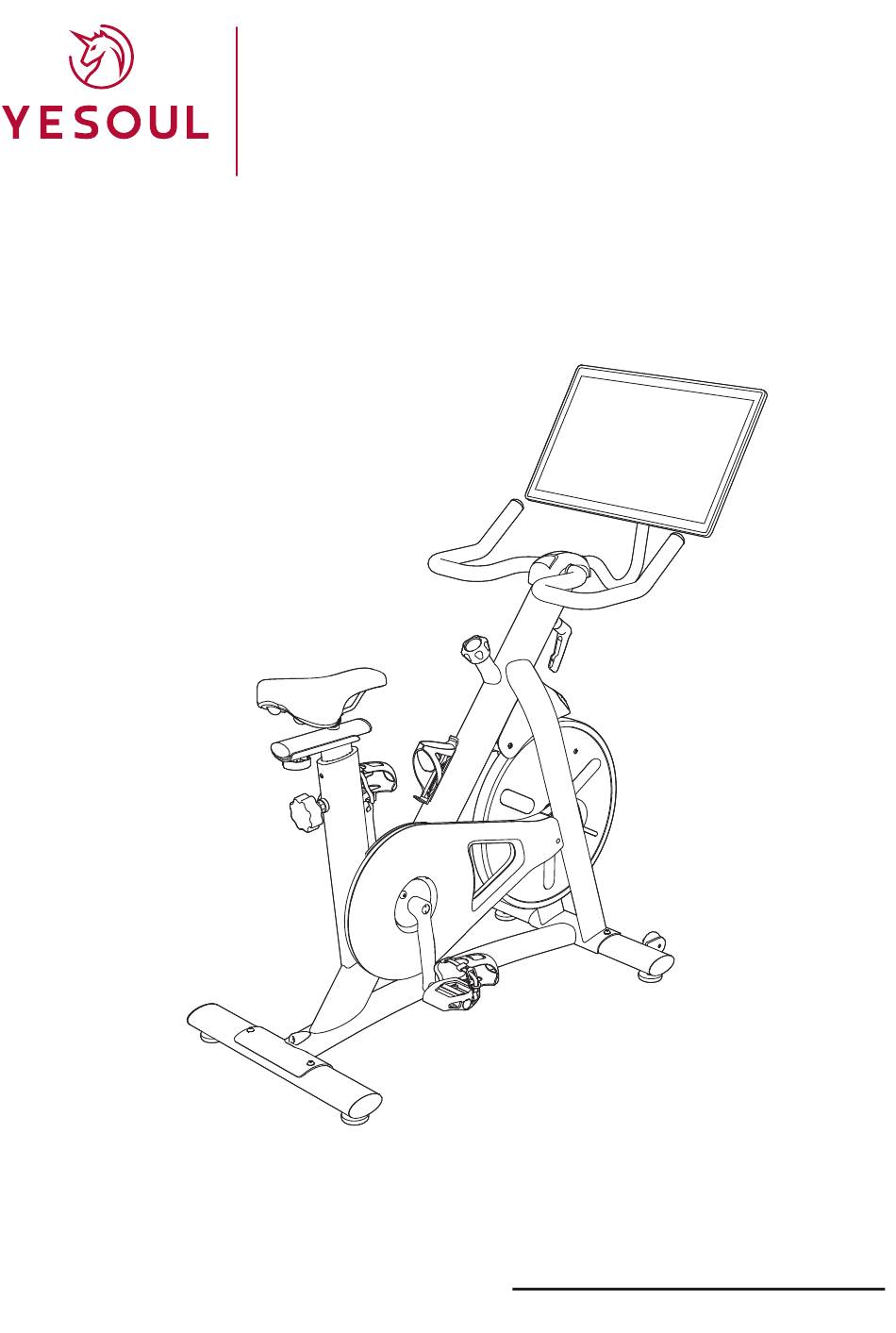

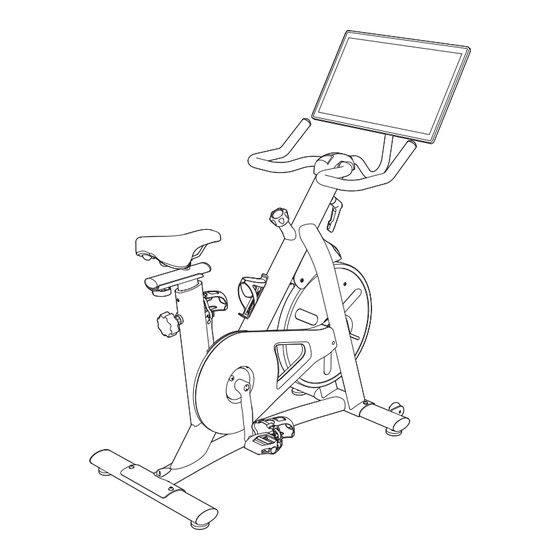

- Page 1 S3PLUS Before u sing t h is product, caref ully read and proper ly keep th is manua l. YESOUL BIKE YESOUL BIKE S3PLUS Product Manual Product model: YS-001...
- Page 2 YESOUL BIKE S3PLUS Product Parameters Screen size 21.5 inches (1920×1080 pixels) Supporting software version Android Resistance system Magnetron resistance system Drive mode Belt drive Power supply 12V power adapter Height limit 150～195cm Rated maximum load 120kg Net weight 38.5kg Gross weight 42.8kg...
-
Page 3: Important Safety Instructions
Important Safety Instructions Please read them carefully. Improper use may result in personal injury or death! 1. Make sure that the saddle height adjustment knob is secured correctly, and will not affect motion during exercise. 2. Keep children and pets away from this product. This product is for those over 16 years old only. - Page 4 Installation Guide - List of Parts List of Parts Name Quantity Picture ① Frame 2 × hexagon socket ② Front tube button head screw M8 × 45/washer 2 × hexagon socket ③ Rear tube button head screw M8 × 45/washer ④...
- Page 5 Installation Guide - List of Parts Name Quantity Picture ⑨ 6.2 12V power adapter Hexagon socket ⑩ cap screw M8×45 Name Quantity Picture Open-ended wrench (8#) Hex wrench, 4# Hex wrench, 5# L-type cross head hex wrench, 6# Open-ended wrench *In order to facilitate assembly, some accessories have been installed on the body before delivery.
- Page 6 Installation Guide STEP 2: Installation of bottom tube 1. Take L-type cross head hex wrench 6# (D) out of the ziplock bag. 2. Remove four hexagon socket button head screws (M8 × 45) and washers of the front tube ② and rear tube ③...
- Page 7 Installation Guide STEP 3: Installation of handlebar assembly 1. Remove four hex bolts from the head tube. 2. Align the connection holes of handlebar assembly, and manually turn screws into four holes (without tightening). Insert the display holder into the round hole of the handlebar as indicated by the arrow, and correctly align the holes.
- Page 8 Installation Guide STEP 4: Display fixing 1. Remove the original bolts, nuts, four disk-type spring washers and one gasket from the handlebar via the hex wrench 4# （ B） . 2. Align the rear holes of the display with the holes of the handlebar, and reinstall the bolt, nut, four disk-type spring washers and one gasket in the original order.
- Page 9 Installation Guide STEP 5: Pedal installation 1. Take out the pedal assembly ④. 2. Pay attention to distinguish left pedal and right pedals. 3. Lock the pedal assembly L ④ into the left crank, and tighten with the box-ended wrench ( E) along the direction indicated by the arrow.
- Page 10 Installation Guide (the following instructions are for reference only; the actual product will prevail) Safety tips: Reverse riding is not recommended, as it is likely to loosen pedals. After reverse riding, check whether the pedals are locked, in order to avoid safety issues arising from loose pedals.
-
Page 11: First Use
First Use 1. Power-on 1. Connect the power adapter to the power jack on the rear part of the frame. (Please use the standard power adapter. Replacement of the power adapter without authorization may cause serious consequences.) 2. Plug the cable of the power port (a) and signal port (b) of the display into the jack at the bottom of the back of the tablet. - Page 12 About registration and free course 1. Registration 1. Connection to the wireless network: Turn on the tablet, open YESOUL APP, click the wireless network icon, and set up the wireless network connection. 2. New user registration: Click “I don’ t have an account yet. Go to register” on the interface.
-
Page 13: Saddle Height Adjustment
How to Adjust Bike 1.Handlebar height adjustment: Loosen and pull out the front column knob with one hand, hold the middle part of the handlebar with the other hand, and lift the handlebar to the desired position. Then release the knob, and gently pull the column up and down until the spring is automatically reset (when a “click”... - Page 14 How to Adjust Bike 3.Horizontal adjustment of saddle: Loosen the knob under the saddle, slide the saddle back and forth to the desired position, and tighten the knob as much as possible. Horizontal adjustment of saddle Loose Tight 阻力减 阻力加 4.Body level adjustment: There are four adjustment pads at the bottom of the front and rear pedal tubes.
- Page 15 How to Determine Correct Riding Posture 1.Setup of correct saddle position Saddle height Put the feet together, stand on one side of the saddle and adjust the saddle to the hip height (Fig. 1). Then site on the saddle, and step on the pedals forcibly until they are stopped at 6 o’...
- Page 16 How to Determine Correct Riding Posture 2.Setup of appropriate handlebar height Each user can set up the appropriate handlebar height based on his or her body height and riding experience. Recommendation: The handlebar should be slightly higher than the saddle for new users (Fig. 1) and flush with or slightly lower than the saddle for experienced users (Fig.
- Page 17 Display use Speaker Power port Signal port Headphone jack Volume+ Volume- ON/OFF button...
-
Page 18: Routine Maintenance
Routine Maintenance Daily use: Keep the spinning bike on a dry, ventilated and flat floor. If not used in a long time, the bike should be covered to keep its body clean and tidy. Frame maintenance: Wipe off sweat on the frame with cloth after exercise. Do not wipe the bike with wet cloth, in order to avoid rusting. - Page 21 此页为备注页，不用印刷 骑马钉 148*210mm 双面印刷 双胶纸 80g 20 页...
