YESOUL S3 Product Manual

Spinning bike
Hide thumbs

Advertisement

Table of Contents

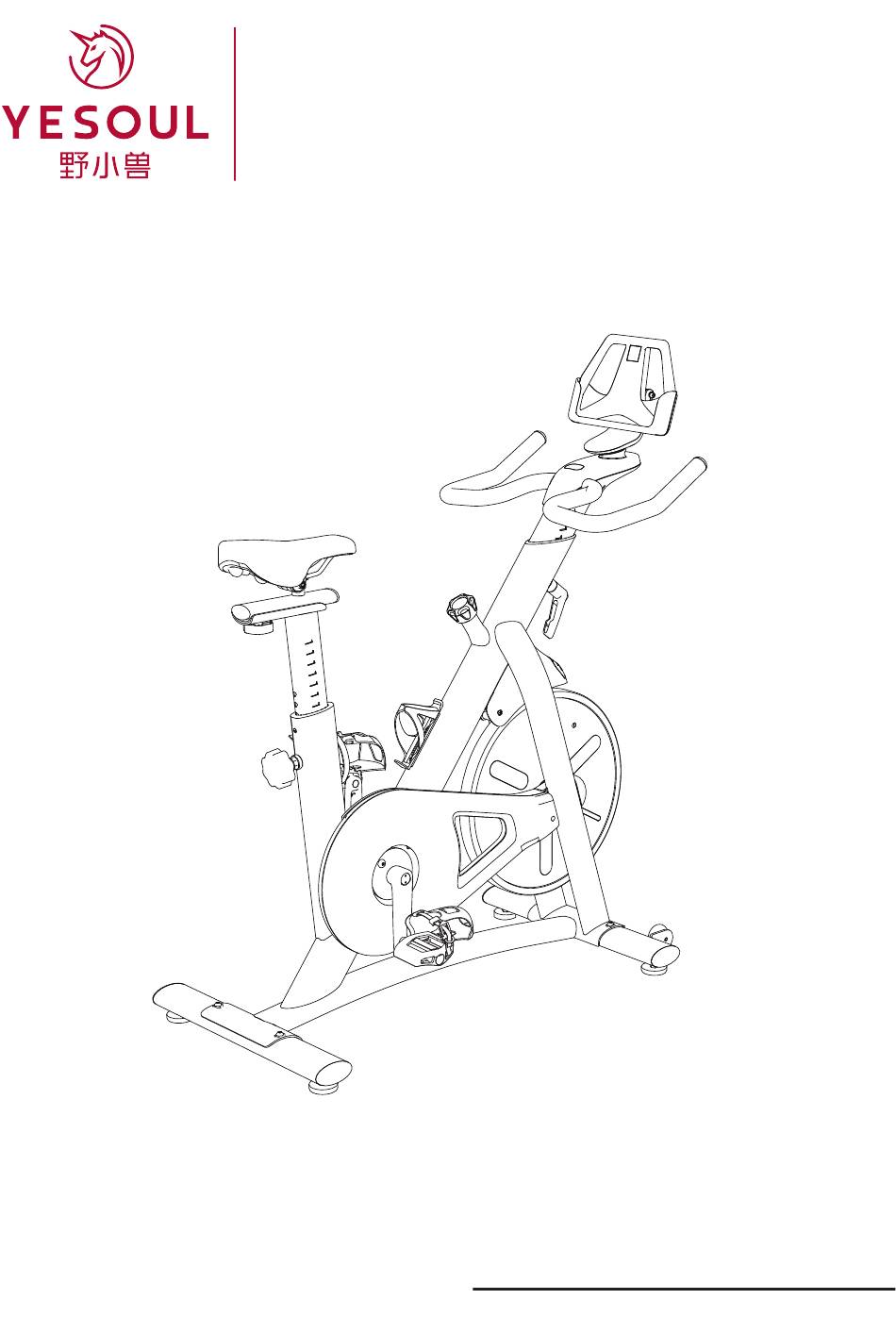

S 3
Before using t his produ ct,
caref ully read
Spinning bike
and properly keep t h is ma nu al.
YESOUL SMART CYCLING
S3 Product Manual
Product model: YS-001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S3 and is the answer not in the manual?

Questions and answers

Related Manuals for YESOUL S3

Summary of Contents for YESOUL S3

  • Page 1 Before using t his produ ct, caref ully read Spinning bike and properly keep t h is ma nu al. YESOUL SMART CYCLING S3 Product Manual Product model: YS-001...
  • Page 2 YESOUL Smart Spinning Bike S3 Product parameter Maximum tablet width: 260mm Tablet (mobile phone) holder size iOS 10.0 or higher, Android 5.0 or higher Supporting software version Magnetron resistance system Resistance system Belt drive Drive mode Button battery (model: CR2477)

  • Page 3: Important Safety Instructions

    Important Safety Instructions Please read them carefully. Improper use may result in personal injury or death! 1. Make sure that the saddle height adjustment knob is secured correctly, and will not affect motion during exercise. 2. Keep children and pets away from this product. This product is for those over 16 years old only. 3.
  • Page 4 Installation Guide - List of Parts List of Parts Frame 2×hexagon socket button head screw M8×45/washer Front tube 2×hexagon socket button head screw M8×45/washer Rear tube Pedal (left: L; right: R) 2× hexagon socket cap screw M6×16/washer Handlebar assembly Tablet holder (mobile phone) Head tube...
  • Page 5 Installation Guide STEP 2: Installation of bottom tube 1. Take the hex wrench (6#) out of the ziplock bag. 2. Remove four screws (M8×45) and washers of the bottom tube via the wrench. Washer 3. Align the hole of the bottom tube with the bottom hole of the frame, manually screw the bottom tube into frame, and tighten it via the wrench.
  • Page 6 Installation Guide STEP 3: Installation of head tube 1. While holding the head tube with one hand, pull out the adjusting handle with the other hand. 2. Insert the head tube into the body, and keep the scale parallel to the top surface of the tube. Loosen the adjusting handle and clamp the head tube into the slot.
  • Page 7 Installation Guide STEP 4: Installation of handlebar assembly 1. Take two hexagon socket cap screws (M8×45) and washers out of the ziplock bag. 2. Align the handlebar assembly with the hole from top to bottom, and manually fasten screws into the holes. 3.
  • Page 8 Installation Guide STEP 5: Installation of tablet (mobile phone) holder 1. Take the hex wrench (5#) out of the ziplock bag. 2. Remove the screws (M6×16) and washers of the handlebar assembly via the wrench. Washer 3. Insert the tablet (mobile phone) holder into the slot of the handlebar assembly, manually fasten the screws into holes, and lock them via the wrench.

  • Page 9: Step 6: Pedal Installation

    Installation Guide STEP 6: Pedal installation Manually screw the pedals onto cranks toward the head direction, and tighten them with the open-ended wrench. There are two pedals: left (L) and right (R). Open-ended wrench (in the ziplock bag) Safety tips: Reverse riding is not recommended, as it is likely to loosen pedals.
  • Page 10 Installation Guide STEP 7: Battery Dismantling and Installation 1. If the bike is provided with a battery, pull the insulation strip out of the gap of the battery cover before using this product. 2. Battery replacement: Open the battery cover, and take out the circuit board (never forcibly pull it as its back wire is connected to the body) of the battery holder.
  • Page 11 Installation Guide (for reference only, subject to the actual product) Safety tips: Adjust the bike and tighten the body tightening knob as needed before using it. Resistance knob (Adjust the resistance as needed; press it to brake in an emergency.) Saddle tightening knob (Adjust the saddle horizontally) Front column tightening knob...

  • Page 12: First Use

    Before using this product, make sure that other users are not connected to the bike. ·The bike will be disconnected 10 min after riding. ·In addition to connection with YESOUL APP, the Bluetooth can also be connected with kinomap and zwift software.
  • Page 13 Connection with Heart Rate Armband 3.Connection with Heart Rate Armband First, make sure that the Bluetooth function of the mobile phone/tablet is enabled. Wear the heart rate armband as required. 1. Open the APP, click the heart rate armband icon, and search and select the heart rate armband name (e.g.

  • Page 14: Handlebar Height Adjustment

    How to Adjust Bike 1 - Handlebar height adjustment: Loosen and pull out the front column knob with one hand, hold the middle part of the handlebar with the other hand, and lift the handlebar to the desired position. Then release the knob, and gently pull the column up and down until the spring is automatically reset (when a “click”...
  • Page 15 How to Adjust Bike 3 - Horizontal adjustment of saddle: Loosen the knob under the saddle, slide the saddle back and forth to the desired position, and tighten the knob as much as possible. Horizontal adjustment of saddle Loose Tight 4 - Body level adjustment: There are four adjustment pads at the bottom of the front and rear pedal tubes.
  • Page 16 How to Determine Correct Riding Posture 1 - Setup of appropriate handlebar height Each user can set up the appropriate handlebar height based on his or her body height and riding experience. Recommendation: The handlebar should be slightly higher than the saddle for new users (Fig. 1) and flush with or slightly lower than the saddle for experienced users (Fig.
  • Page 17 How to Determine Correct Riding Posture 3 - Setup of correct saddle position 2.2 - Horizontal position of saddle Put the right foot into the clamp, and step on the pedals, until the right pedal is at 3 o’clock and the front side of the knee joint is on the same vertical line as the pedal, that is, the saddle is in the correct position (Fig.

  • Page 18: Routine Maintenance

    Routine Maintenance Daily use: Keep the spinning bike on a dry, ventilated and flat floor. If not used in a long time, the bike should be covered to keep its body clean and tidy. Frame maintenance: Wipe off sweat on the frame with cloth after exercise. Do not wipe the bike with wet cloth, in order to avoid rusting.
  • Page 19 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
