Installation Guide

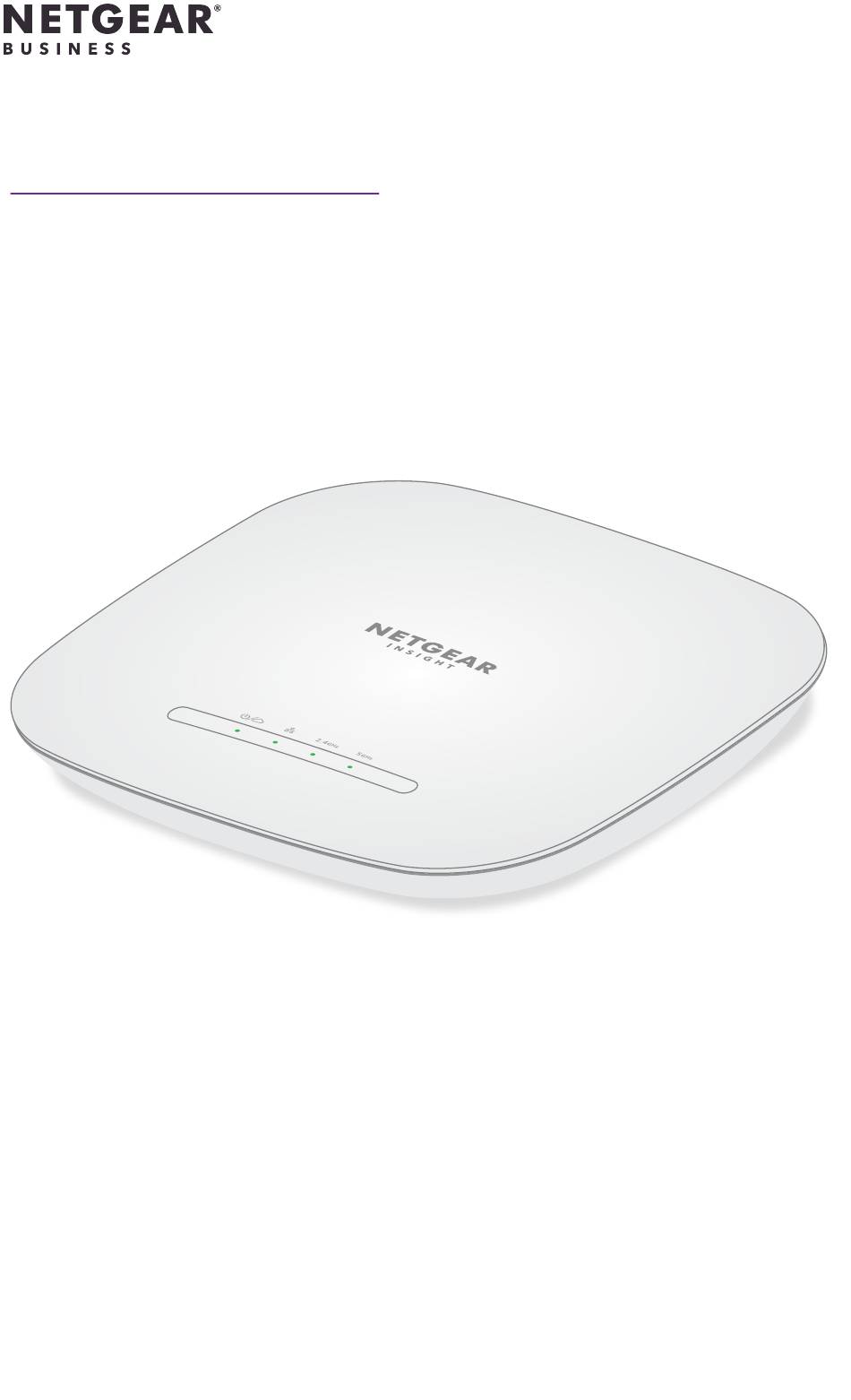

Insight Managed WiFi 6 AX3000 Access Point
Model WAX615
Model WAX615PA
BETA INSTALLATION GUIDE
NETGEAR, Inc.
December 2021
350 East Plumeria Drive
San Jose, CA 95134, USA
NETGEAR INTERNATIONAL LTD
Floor 1, Building 3,
University Technology Centre
Curraheen Road, Cork,
T12EF21, Ireland
© NETGEAR, Inc., NETGEAR and the NETGEAR
Logo are trademarks of NETGEAR, Inc. Any
non‑NETGEAR trademarks are used for reference
purposes only.
Advertisement
Related Manuals for NETGEAR WAX615
Summary of Contents for NETGEAR WAX615
- Page 1 San Jose, CA 95134, USA NETGEAR INTERNATIONAL LTD Floor 1, Building 3, University Technology Centre Curraheen Road, Cork, T12EF21, Ireland © NETGEAR, Inc., NETGEAR and the NETGEAR Logo are trademarks of NETGEAR, Inc. Any non‑NETGEAR trademarks are used for reference purposes only.
-
Page 2: Package Contents
(varies by region) mounting NOTE: You can power up the WAX615 by connecting it to a PoE+ switch or power adapter. Model WAX615PA includes a power adapter, or you can purchase one separately. Overview Power/Cloud LED LAN LED 2.4 GHz WLAN LED... - Page 3 1. Connect to power and Internet Power up the WAX615 access point (AP) by attaching a power adapter, or by connecting the LAN PoE+ port to a PoE+ switch that supplies 802.at power (PoE+). Make sure that the AP has Internet connectivity: •...
-
Page 4: Configure The Ap
PoE+. However, if your Internet connection, modem, or switch only support a speed of 1 Gbps (which is a common speed), the AP’s LAN 1 connection functions at 1 Gbps. 2. Configure the AP You can manage the AP remotely in cloud/remote mode using NETGEAR Insight, or locally in standalone mode using a web browser. Insight remote management offers additional features and add‑on services that are not available in standalone mode. - Page 5 From a computer or mobile device that is connected to the Internet, visit my.netgear.com. Log in to your NETGEAR account. If you do not already have a NETGEAR account, you can create an account now. The My Products page displays. 10. From the menu on the left, select Register a Product.
-
Page 6: Mounting Options
Mounting options You can mount the AP to a solid surface (a wall or a ceiling) or to a ceiling with a 15/16 in. (23.8 mm) T-bar. We recommend that you use a flat Ethernet cable so that the cable fits in the narrow space between the AP and the surface on which it is mounted. Before you mount the AP, we recommend that you first set up and test the AP to verify WiFi network connectivity and coverage. NOTE: If you are mounting the AP on a ceiling, follow the instructions on how to mount the AP on a wall. - Page 7 Mounting the AP to a T-bar Slide the T‑bar partially into the metal bracket. Attach the metal bracket to the ceiling bar. Push the T‑bar over the ceiling bar. Use the lock screw to lock the metal bracket into place. 5 5 5 Use the four short screws to attach the mounting plate to the T‑bar.
- Page 8 Twist the access point clockwise to lock it onto the mounting plate. Unmount the AP IMPORTANT: Make sure you hold the AP so that it does not drop when you release it from the mounting plate. To find the locking latch, place your thumb on the center of the LEDs, and your finger on the other side of the device, directly opposite the thumb. Press and hold the latch down to release the lock and keep the lock open.
- Page 9 Support and Community Visit netgear.com/support to get your questions answered and access the latest downloads. You can also check out our NETGEAR Community for helpful advice at community.netgear.com. Regulatory and Legal Si ce produit est vendu au Canada, vous pouvez accéder à ce document en français canadien à...
