Summary of Contents for NETGEAR WAX620

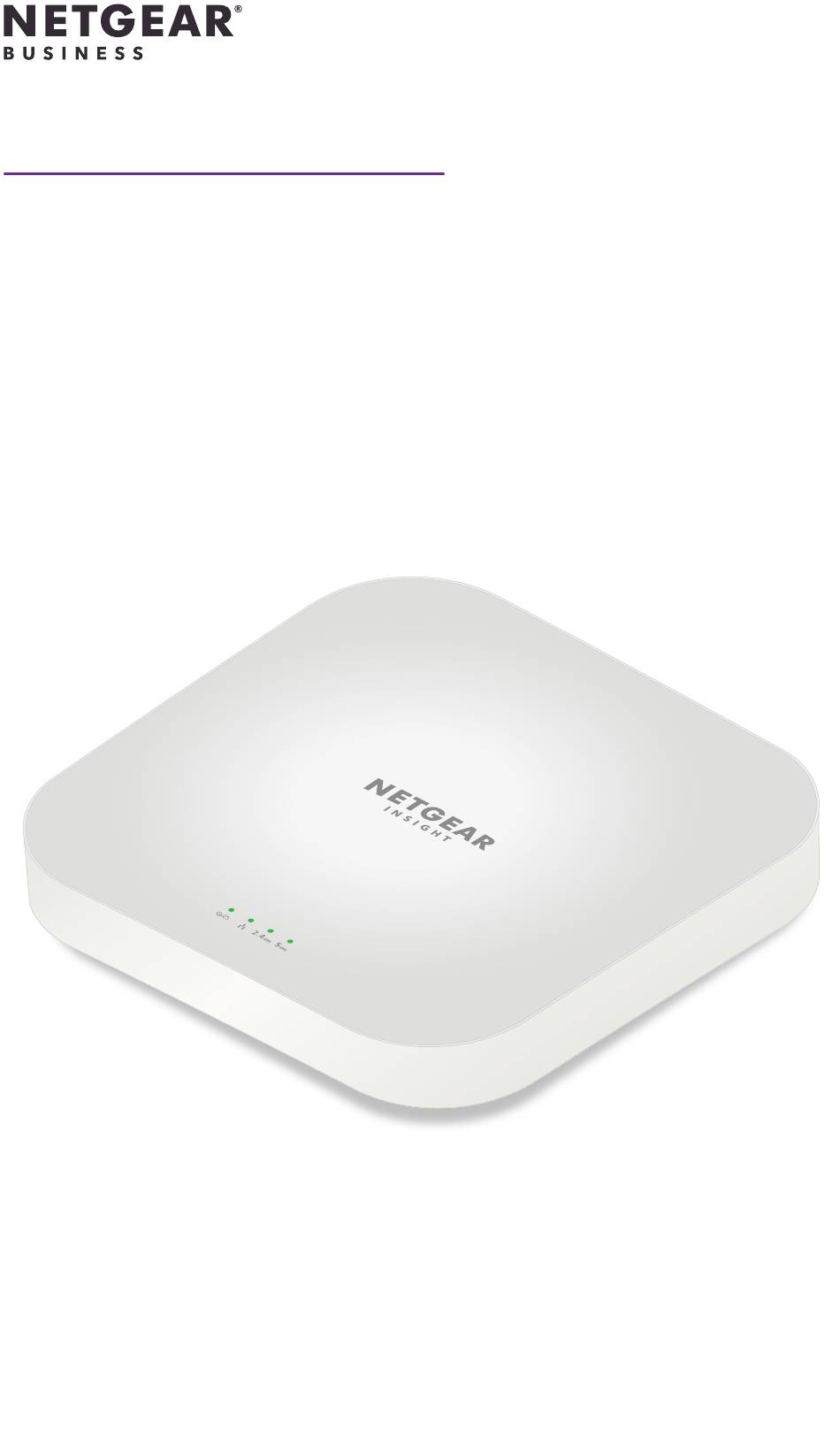

  • Page 1 Installation Guide Insight Cloud Managed WiFi 6 AX3600 Access Point Model WAX620...
  • Page 2 (23.8 mm) T-bar. Two screws and anchors for ceiling or wall mounting NOTE: You can power up your WAX620 by connecting it to a PoE+ switch. As an option, you can purchase a power adapter. CAUTION: Terms of Use This device must be professionally installed. It is the installer’s responsibility to follow local country regulations including operations within legal frequency channels, output power and DFS requirements.
  • Page 3 Overview Power/Cloud LED LAN LED 2.4 GHz WLAN LED 5 GHz WLAN LED Reset button LAN/PoE+ port DC power connector...
  • Page 4 1. Connect the access point to a PoE+ switch Power up the WAX620 access point (AP) by connecting the LAN/PoE+ port to a PoE+ switch that supplies 802.3at (PoE+) power. Make sure that the AP has Internet connectivity: • If you connect the AP to a switch, make sure that the switch has Internet connectivity.
  • Page 5 If connected to 2.5 Gbps equipment, the WAX620 LAN/PoE+ port supports Ethernet speeds up to 2.5 Gbps within your LAN. The preceding figures show a NETGEAR MS510TXUP switch, which supports speeds of 2.5 Gbps and higher, as well as PoE+. If your Internet connection, modem, router, and switch support a speed of 2.5 Gbps, the...
  • Page 6 Enter the email address and password for your NETGEAR account and click the NETGEAR Sign In button. If you do not already have a NETGEAR account, you can create an account now. Only if you are an Insight Pro user, select the organization to which you want to add the AP.
  • Page 7 The default WiFi passphrase is sharedsecret. Open the NETGEAR Insight app. If you do not already have a NETGEAR account, you can create an account now. Enter the email address and password for your account and tap LOG IN.
  • Page 8 From a computer or mobile device that is connected to the Internet, visit my.netgear.com. Log in to your NETGEAR account. If you do not already have a NETGEAR account, you can create an account now. The My Products page displays.
  • Page 9 Mount to a solid wall CAUTION: Make sure that the wall is not damaged. For example, water damage can destroy a drywall. The bottom of the AP includes two holes that let you mount the AP on two screws inserted in a wall. Mark the wall where you want to insert the provided anchors and screws, which...
  • Page 10 Mount to a T-bar Slide the 15/16 in. (23.8 mm) bracket between the guides on the bottom of the AP until it locks in place. The locking tab must be at the front of the AP. Hold the AP upside down. NOTE: If you can reach behind the T-bar, hold the T-bar with one hand and the AP with your other hand.
  • Page 11 Mount to a solid ceiling CAUTION: Make sure that the ceiling is not damaged. For example, water leaks can damage a ceiling. Using the anchors and screws provided, attach the 15/16 in. (23.8 mm) bracket with the screw holes to the ceiling. The rectangular protruding part of the bracket must be facing the ceiling.
  • Page 12 Support and Community Visit netgear.com/support to get your questions answered and access the latest downloads. You can also check out our NETGEAR Community for helpful advice at community. netgear.com. Regulatory and Legal Si ce produit est vendu au Canada, vous pouvez accéder à ce document en français canadien à...
