Summary of Contents for VTech VM819

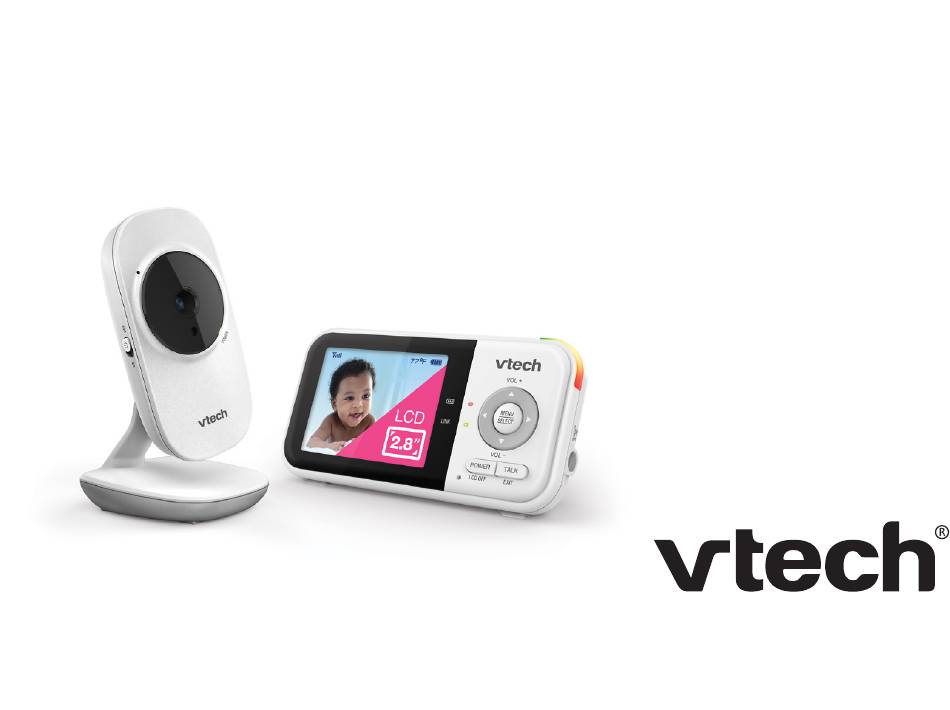

- Page 1 VM819 Video Baby Monitor Quick start guide...
-
Page 2: Important Safety Instructions
Slots and openings in the back or bottom of this product are provided for This VTech product complies with all standards regarding ventilation. To protect them from overheating, these electromagnetic fields (EMF). If handled properly and openings must not be blocked by placing the product according to the instructions in this user’s manual, the... -
Page 3: What's In The Box
What’s in the box Quick start guide Connect the baby monitor NOTES NOTE • The rechargeable battery in the parent unit is built-in. • Use only the power adaptors supplied with this product. • Make sure the baby monitor is not connected to a switch-controlled electric outlet. -
Page 4: Power Off
Connect the baby monitor (cont’d) Charge the parent unit battery When you have connected and turned the parent unit on, the battery charges automatically. Notes NOTES NOTE • Before using the baby monitor for the first time, charge the parent unit battery for 12 hours. When the parent unit battery is fully charged, the battery icon becomes solid •... -
Page 5: Positioning The Baby Monitor
Positioning the baby monitor Caution • Keep the baby unit out of the reach of your baby. Never place or mount the baby unit inside the baby’s crib or playpen. > 1 metre > 3ft (1m) > 1 metre < 1 metre Caution •... - Page 6 Basic operation - Parent unit Use the menu Press MENU to enter the menu, or save a setting. You can use the parent unit for advanced settings or operations, such as to play or stop the baby unit’s lullaby, or to adjust the baby unit’s sound sensitivity.
- Page 7 Press VOL+ / VOL- to adjust your Press MENU when in idle mode. Adjust parent unit speaker volume Zoom parent unit speaker volume. Choose • Press VOL+ / VOL- to adjust your Press MENU when in idle mode. parent unit speaker volume. Press or to choose (Zoom in) or...
-
Page 8: Overview - Baby Unit
Overview - Baby unit PAIR hole Infrared LEDs • The parent unit and Light sensor baby unit(s) provided are already paired. ON/OFF switch POWER LED light Speaker Microphone Power jack Camera Slots for wall mounting... -
Page 9: Status Icons
Parent unit icons Status icons Status icons Connection status • displays when strong signal strength is detected between the baby unit and the parent unit. • displays when moderate or low signal strength is detected between the baby unit and the parent unit. Current view status •... -
Page 10: Main Menu Icons
Sub-menu icons Main menu icons Main menu icons Main Sub-menu menu Zoom • Zoom in and out of the video displayed from the baby unit. Settings Screen off timer • The parent unit display will turn off to conserve energy after your chosen amount of time inactive. - Page 11 Parent unit icons (cont’d) Sub-menu icons Main menu icons Main menu icons Main Sub-menu menu Sound Detection VOX (Voice Activated Alert) Sensitivity • You can choose to hear sounds from the baby unit all the time, or to only hear sounds that exceed a certain level. Adjust the microphone sensitivity of your baby unit, where the higher the sensitivity level, the more sensitive the baby unit is in detecting sounds that will transmit to the parent unit.
- Page 12 Warning icons and messages The battery is empty and needs to be recharged. Battery low at Parent Unit Operation is in progress. The temperature detected by the baby unit is higher than the desired temperature alert range. Temperature too high The temperature detected by the baby unit is lower than the desired temperature alert range.
-
Page 13: Adjust The Sound Sensitivity Of The Baby Unit
Sound sensitivity and sound activation Adjust the sound sensitivity of the baby unit You can choose to hear sounds from the baby unit all the time, or to only hear sounds that exceed a certain level. Use the parent unit to adjust the baby unit microphone sensitivity. The higher the sensitivity level, the more sensitive the baby unit will be in detecting sounds that transmit to the parent unit. -
Page 14: Dim Mode
Dim mode The dim mode helps save parent unit power. Your parent unit display will turn off automatically after 10 minutes of inactivity, when no keys are pressed or alerts are received from the baby unit. 10 mins inactive Press any button Note NOTES NOTE... - Page 15 Mount the baby unit on dry wall (optional) Items to purchase You will need to purchase the following items separately to mount your baby unit: 2 screws 2 anchors Note NOTES NOTE • The types of screws and anchors you need depend on the composition of the wall.
-
Page 16: Frequently Asked Questions
Frequently asked questions Below are the questions most frequently asked about the baby monitor. Why does the Try the following (in the order listed) for a common cure: baby monitor 1. Disconnect the power to the baby units and the parent unit. not respond 2. -
Page 17: Customer Service And Product Warranty
VTech Electronics Europe Plc (see address below), with proof of purchase, without proof of purchase no replacement will be provided. 3. VTech Electronics Europe Plc will examine the product and if it is found to be defective due to faulty materials or workmanship, will replace the product at their discretion. -
Page 18: Disposal Of Batteries And Product
(2014/53/EU) and the UK’s Radio Regulations 2017 on radio systems and telecommunication equipment. VTech Telecommunications Ltd. hereby declares that this Video Baby Monitor VM819 is in compliance with the essential requirements and other relevant provisions of EU’s Radio Equipment Directive (2014/53/EU) and UK’s Radio Equipment Regulations 2017. -
Page 19: General Product Care
General product care To keep this product working well and looking good, follow these guidelines: • Avoid placing it near heating appliances and devices that generate electrical noise (for example, motors or fluorescent lamps). • DO NOT expose it to direct sunlight or moisture. •... -
Page 20: Technical Specifications
Power requirements Parent unit: 3.6V, 2600mAh, 9.36Wh Li-ion battery Parent unit power adaptor: Output: 5V DC @ 1A Baby unit power adaptor: Output: 6V DC @ 400mA Specifications are subject to change without notice. © 2021 VTech Telecomunications Ltd. All rights reserved. 07/21. VM819_UK_QSG_V2...
