DXGP210
1
Read the operator's manual
Handle
thoroughly before operating
the unit. Follow all warnings and
safety instructions. This fast
guide is intended as a reference
for users that have already read
the operator's manual and are
familiar with the necessary safety
precautions.
6
ASSEMBLY TOOLS REQUIRED
• 5/32-inch (4 mm) Allen wrench (included)
Need Help?
Call 1-855-971-1123

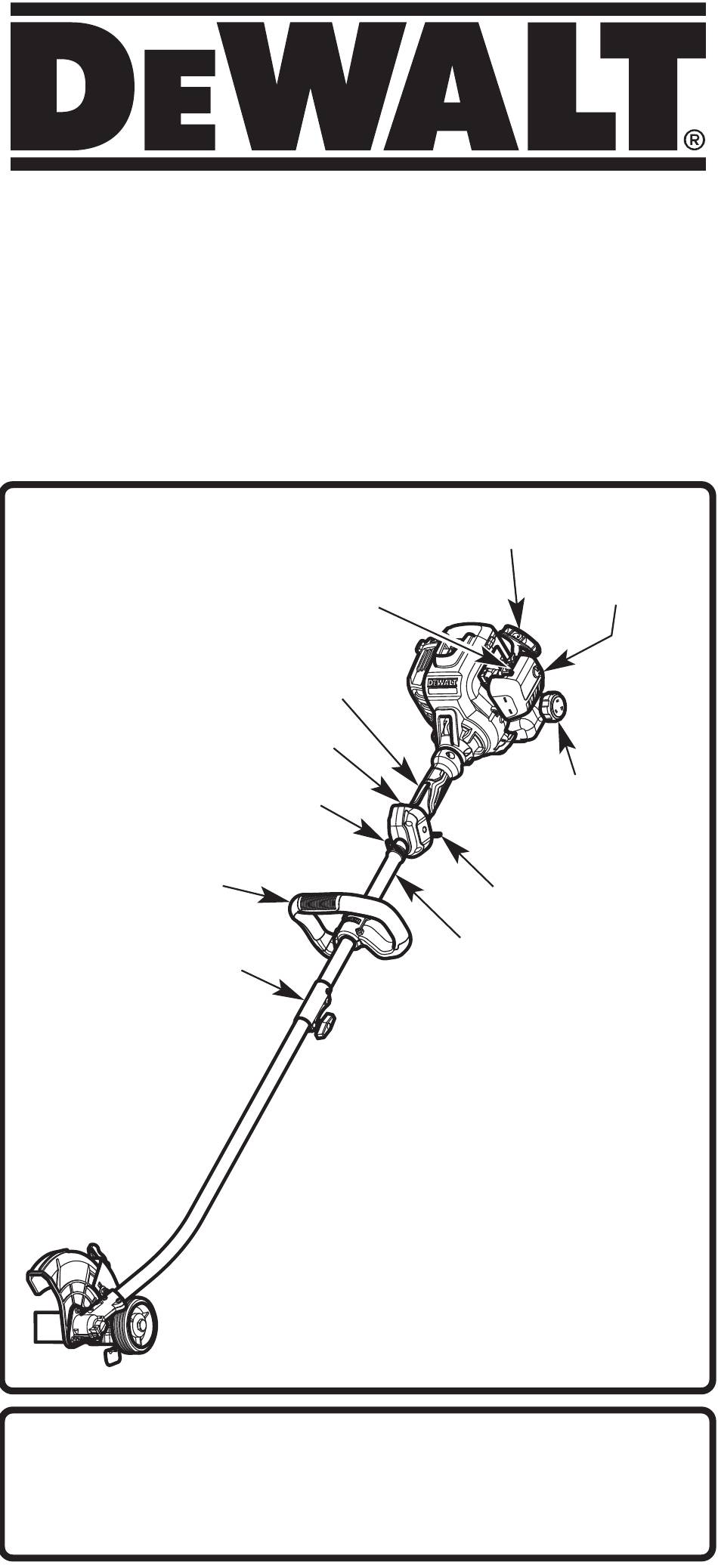

Choke Lever
Throttle Lockout
On / Off Switch
Shoulder Strap /
Harness Loop
Coupler
Starter Rope Grip
Upper Shaft
Primer Bulb
Fuel Cap
Throttle Control
Housing
2
R
a
th
T
to
7
