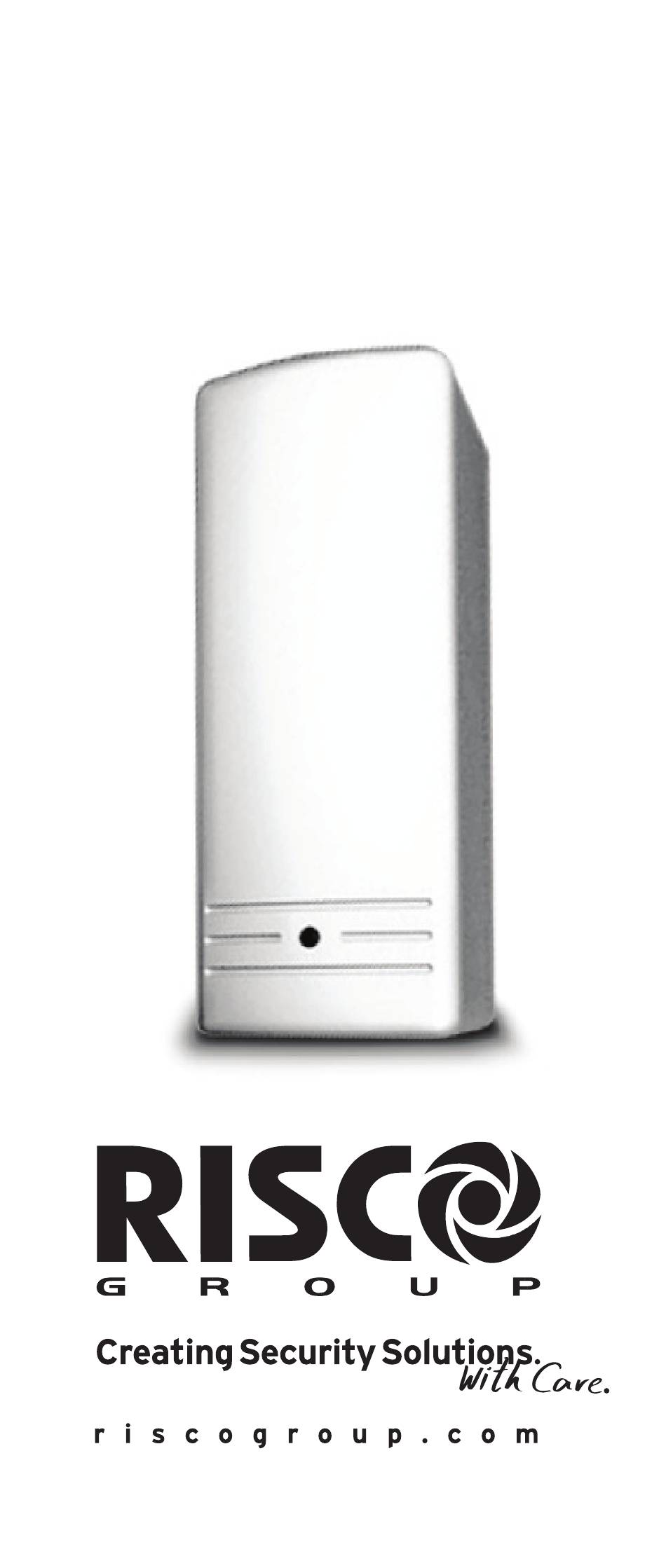

UNIVERSAL
TRANSMITTER
DOOR / WINDOW CONTACT
WL T72C
RWT72M

Advertisement

loading
Need help?

Need help?

Do you have a question about the WL T72C and is the answer not in the manual?

Questions and answers

Related Manuals for Risco WL T72C

Summary of Contents for Risco WL T72C

  • Page 1 UNIVERSAL TRANSMITTER DOOR / WINDOW CONTACT WL T72C RWT72M...
  • Page 2 Dead Time (HOLD ON): 2.5 minutes sempre ogni variazione di stato. Microinterruttore 7 2. Per usare una risposta veloce WL T72C WL Universal Transmitter (BLOCCO 2,5 MIN) (BLOCCO 2,5 MIN) (BLOCCO 2,5 MIN) (BLOCCO 2,5 MIN)

  • Page 3: General Description

    The transmitter is a supervised general purpose transmitter that can be connected to magnetic contacts (door/window protection) or to other sensors. It operates together with RISCO Group programmable receivers and is powered by a standard 3-volt lithium battery. MAIN FEATURES •...

  • Page 4: Led Indication

    WRITE: A Write message will be transmitted by pressing both tamper buttons (back and cover) for at least 3 seconds. Note: The unit sends a supervisory message indicating the input state and battery condition. Note: At installation or replacement, perform a Communication Check with the receiver to verify proper operation.
  • Page 5 5: Used to determine the contact mode. ON: Normally Closed (NC) OFF*: Normally Open (NO) 6: Used to determine the response time ON: Slow-500 ms (For operation with magnetic contacts, etc.) OFF*: Fast-10 ms (For operation with a shock sensor) 7: Used to determine the HOLD status of the transmitter.

  • Page 6: Selection Of Installation Location

    6. TRANSMITTER/RECEIVER COMMUNICATION SETUP The transmitter must identify itself to the system's receiver by writing its coded message into the receiver's address memory. This is accomplished by performing the following steps: a. Set the receiver to Write Mode. b. Remove the battery from the insulation material (Fig.
  • Page 7 RISCO Group Contacting Info RISCO Group is committed to customer service and product support. You can contact us through our website (www.riscogroup.com) or at the following telephone and fax numbers: UK Tel: +44-(0)-161-655-5500 E-mail: support-uk@riscogroup.com ITALY Tel: +39-02-66590054 E-mail: support-it@riscogroup.com SPAIN Tel: +34-91-490-2133 E-mail: support-es@riscogroup.com...
  • Page 8 RTTE Compliance Statement (European version): Hereby, RISCO Group declares that this equipment is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. For the CE Declaration of Conformity please refer to our website: www.riscogroup.com.
  • Page 9 RISCO Group Limited Warranty RISCO Group and its subsidiaries and affiliates ("Seller") warrants its products to be free from defects in materials and workmanship under normal use for 24 months from the date of production. Because Seller does not install or...
