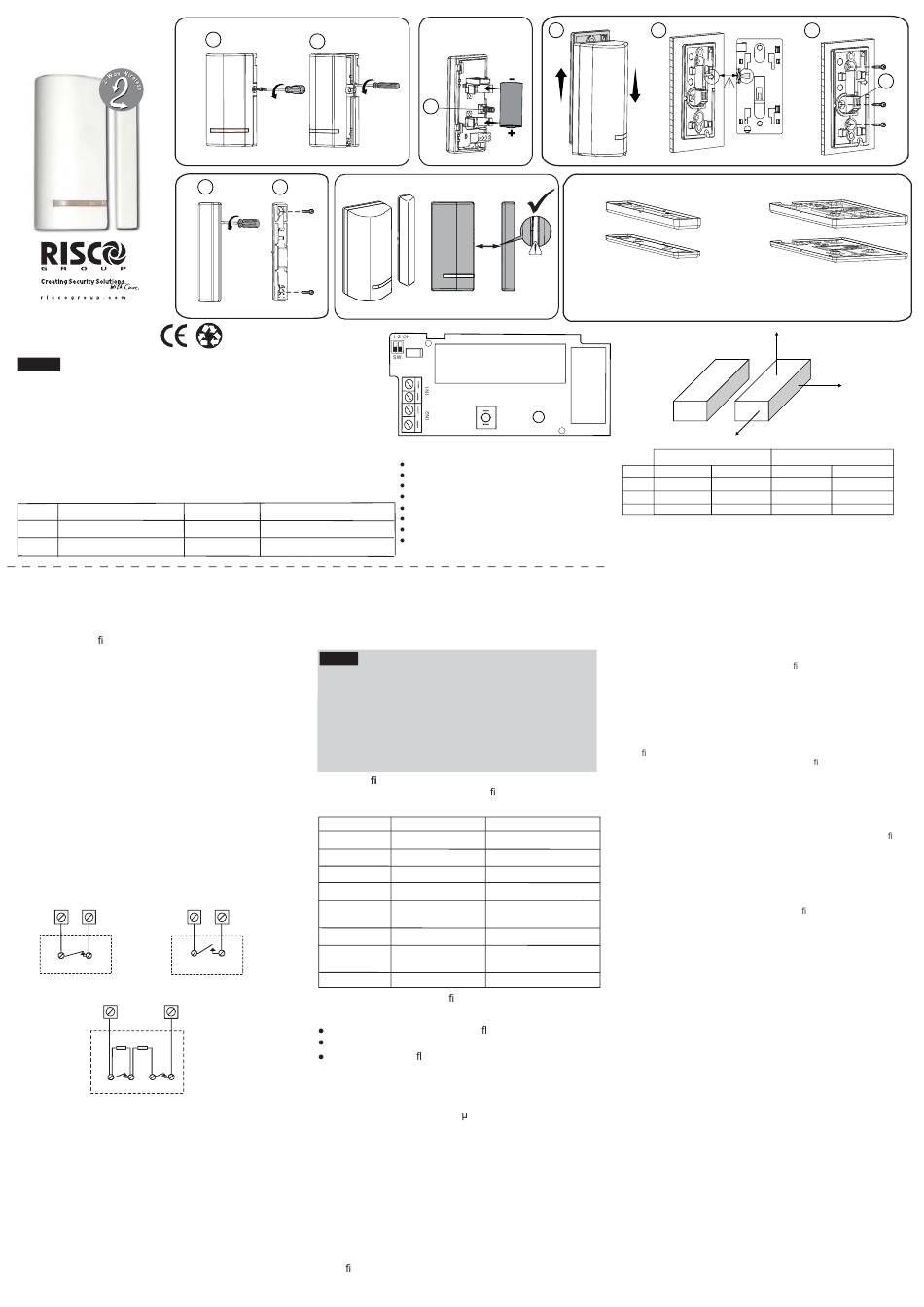

Risco RWX73F Manual

2-Way Wireless
Multi-Function Contact
(Model RWX73F)
© RISCO Group 06/2014
English

GENERAL DESCRIPTION

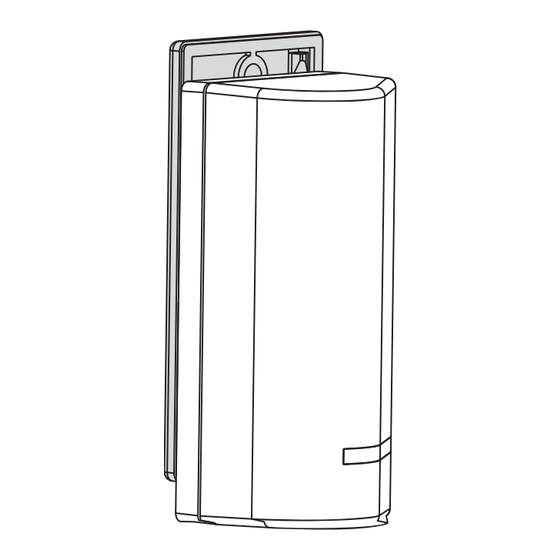

The RWX73F is a 2-way multi-function supervised transmitter
with two separate channels that combines Magnetic/Door
contact with two additional inputs (one universal and the other
universal or shutter). The RWX73F has two reed switches for
protection against opening doors and windows, and against any
attempt to tamper with the detector using large magnets. The
RWX73F operates with RISCO Group 2-Way wireless systems.
OPERATING CHANNELS
The RWX73F supports 2 separate channels with a unique serial number for each channel.
Channel Report Events From
1 Magnetic Contact + Input 1 (IN1) Universal
2 Input 2 (IN2)

INSTALLATION

Step 1: Transmitter Receiver Communication Setup

The X73F must identify itself to the system's receiver by
writing its coded message into the receiver's address
memory. The receiver must identify each channel
separately, as de ned by DIP switch 1.
This registration for each channel is performed either
by entering the RWX73F's 11-digit serial code number
or by performing the following RF allocation steps:
1. Remove the front cover (Fig 1)
2. Set the main unit to Learn mode.
3. Remove the battery from the insulation material and
reinsert it into the transmitter, paying attention to the
polarity (Fig. 2).
4. For channel 1 set Dip switch 1 to OFF.
5. Send a write message by pressing the front tamper
switch (without detaching the back bracket) for at least 3
seconds until panel recognition is displayed (Fig. 2).
6. For channel 2, repeat steps 4 and 5 with DIP switch 1
in the ON position.
NOTE: Wait at least 1 minute before closing the front cover.

Step 2: Input Wiring

Use the following diagrams for appropriate input
termination wiring. For DEOL termination connect two
10K Ohm resistors (supplied) as per the following illustrations:
NORMALLY CLOSED NORMALLY OPEN INPUT
INPUT CONFIGURATION
CONFIGURATION
ALARM
DETECTOR
DETECTOR
DOUBLE END OF LINE INPUT CONFIGURATION
10k 10k
TAMPER
ALARM
DETECTOR

Step 3: Selecting the Mounting Location

1. Select a location best suited for communication quality
and near the intended wired detector. RISCO recommends
placing the unit at the highest possible position.
2. Temporarily attach the unit to this point using two-sided
adhesive tape.
3. Generate an alarm signal (by momentarily opening or
closing the input terminals) and verify that the receiver
has received the signal. If the alarm signal is not detected,
reposition the transmitter and try again.
Step 4: Mounting (Fig. 3 -- Fig. 6)
1. Detach the back of the transmitter from the back bracket
(Fig. 3A). At mounting location note the alignment marks
for both components (Fig. 3B), and then install accordingly
using 2 mounting screws and back tamper screw (Fig 3C).
Figure 1
A
B
Figure 4
A B
5IN1841 D
Functionality Restore Message
Follow Event Restore
Universal / Shutter Follow Event Restore / Immediate
2. Detach magnet casing (Fig. 4A) and install with mounting
screws (Fig 4B).
3. Optionally, mount spacer(s) for transmitter and/or magnet
as required (Fig. 6), positioned between the back bracket
and the mounting surface.
Notes:
1. It's best to mount the transmitter on the non-moving part
(door/window frame), and the magnet on the moving part.
2. Spacers are purchased separately (see table above).
3. The mark on the magnet's case must be aligned with
the mark on the transmitter's case (Fig. 5).
4. For installations on wood or alloy, the maximum distance
for normal operation is 10 mm (1 cm), while for metal
ferromagnetic materials (such as iron) it is 5 mm (Fig. 5).
Step 5: De ning Parameters
The following parameters can be de ned for each
channel from the control panel:
Parameter
Supervision
LED Enable
Magnet
Alarm Hold
Termination
Response
Anti sabotage
ALARM magnet
Shutter Pulse
* Channel 2 termination de ned as Shutter

LED INDICATION

Upon successful learning: short ash sequence
Normal operation: brief light upon transmission
Low battery: short ash sequence during transmission

TECHNICAL SPECIFICATIONS

ELECTRICAL
Battery Type:
Current Consumption:
Frequency:
Dead Time (HOLD ON):
Supervision Transmission: 0-255 minutes
Modulation Type:
Battery Life:
Contact Size: 32 x 35 x 72 mm (1.3 x 1.4 x 2.8 in.)
Magnet Size: 16 x 11 x 72 mm (0.6 x 0.44 x 2.8 in.)
ENVIRONMENTAL
RF immunity:
Operating temperature:
Storage temperature:
Speci cations are subject to change without prior notice.
Should any questions arise please contact your supplier.
Figure 2
A
T
Figure 5
5 X 4mm
Max.
1cm
5 X 2mm
[Optional]
Magnet spacers (10-piece sets):
p/n: RAX73MS0000A (white)
p/n: RAX73MSB000A (brown)
+ -
BATTERY
LED
T.B
SW1
C RISCO

MAIN FEATURES

Communication: Bi-directional
Range: Up to 300 m (1,000 ft.) range line of sight
Supervision: Up to 255 minutes
Selective Zone termination : NO, NC, DEOL
Selective Zone response: 10 / 500ms
Tamper protection: Back + cover
Anti-sabotage tamper protection
Two channels recognized as separate zones in
the system
Channel 1 Channel 2
Yes/No Yes/No
Yes/No Yes/No
Enable/Disable -
On/Off On/Off
IN 1: IN 2:
NO/NC/DEOL NO/NC/DEOL/Shutter
10ms / 500ms 10ms / 500ms
Enable/Disable -
- 01-16*
CR123 3V Lithium Battery
22 A standby
RWX73F86800A 868.65 MHz
RWX73F43300A 433.92 MHz
2.5 minutes
ASK
3 years typical
According to EN50130-4
0°C to 40°C (32°F to 104°F)
-20°C to 60°C (-4°F to 140°F)
Figure 3
B
Back side of
transmitter
Back bracket
Figure 6
5 X 4mm
5 X 2mm
[Optional]
Transmitter spacers (10-piece sets):
p/n: RAX73XS0000A (white)
p/n: RAX73XSB000A (brown)
Contact
ANTENNA
Y
Wood
Opening Closing
X 50mm 44mm
Y 85mm 75mm
Z 27mm 25mm
The tolerance of the measurements is +/- 20%

RTTE Compliance Statement

Hereby, RISCO Group declares that this equipment is in
compliance with the essential requirements and other
relevant provisions of Directive 1999/5/EC. For the CE
Declaration of Conformity please refer to our website:
www.riscogroup.com
EN 50131-2-6 Grade 2 Environmental Class II

RISCO Group Limited Warranty

RISCO Group and its subsidiaries and af liates ("Seller") warrants its
products to be free from defects in materials and workmanship under
normal use for 24 months from the date of production. Because Seller
does not install or connect the product and because the product may be
used in conjunction with products not manufactured by the Seller, Seller
cannot guarantee the performance of the security system which uses
this product. Seller's obligation and liability under this warranty is
expressly limited to repairing and replacing, at Seller's option, within a
reasonable time after the date of delivery, any product not meeting the
speci cations. Seller makes no other warranty, expressed or implied,
and makes no warranty of merchantability or of tness for any particular
purpose. In no case shall seller be liable for any consequential or
incidental damages for breach of this or any other warranty, expressed
or implied, or upon any other basis of liability whatsoever.
Seller's obligation under this warranty shall not include any transporta-
tion charges or costs of installation or any liability for direct, indirect, or
consequential damages or delay. Seller does not represent that its
product may not be compromised or circumvented; that the product will
prevent any personal injury or property loss by burglary, robbery, re or
otherwise; or that the product will in all cases provide adequate warning
or protection.
Seller, in no event shall be liable for any direct or indirect damages or
any other losses occurred due to any type of tampering, whether
intentional or unintentional such as masking, painting or spraying on the
lenses, mirrors or any other part of the detector.
Buyer understands that a properly installed and maintained alarm may
only reduce the risk of burglary, robbery or re without warning, but is
not insurance or a guaranty that such event will not occur or that there
will be no personal injury or property loss as a result thereof.
Consequently seller shall have no liability for any personal injury,
property damage or loss based on a claim that the product fails to give
warning. However, if seller is held liable, whether directly or indirectly,
for any loss or damage arising under this limited warranty or otherwise,
regardless of cause or origin, seller's maximum liability shall not exceed
the purchase price of the product, which shall be complete and
exclusive remedy against seller.
No employee or representative of Seller is authorized to change this
warranty in any way or grant any other warranty.
WARNING: This product should be tested at least once a week.
CAUTION: risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteriess according to local regulations.
