1. Introduction
The IR Beam 72 outdoor detectors employ twin beams with advanced optics and four selectable channels, providing reliable detection.

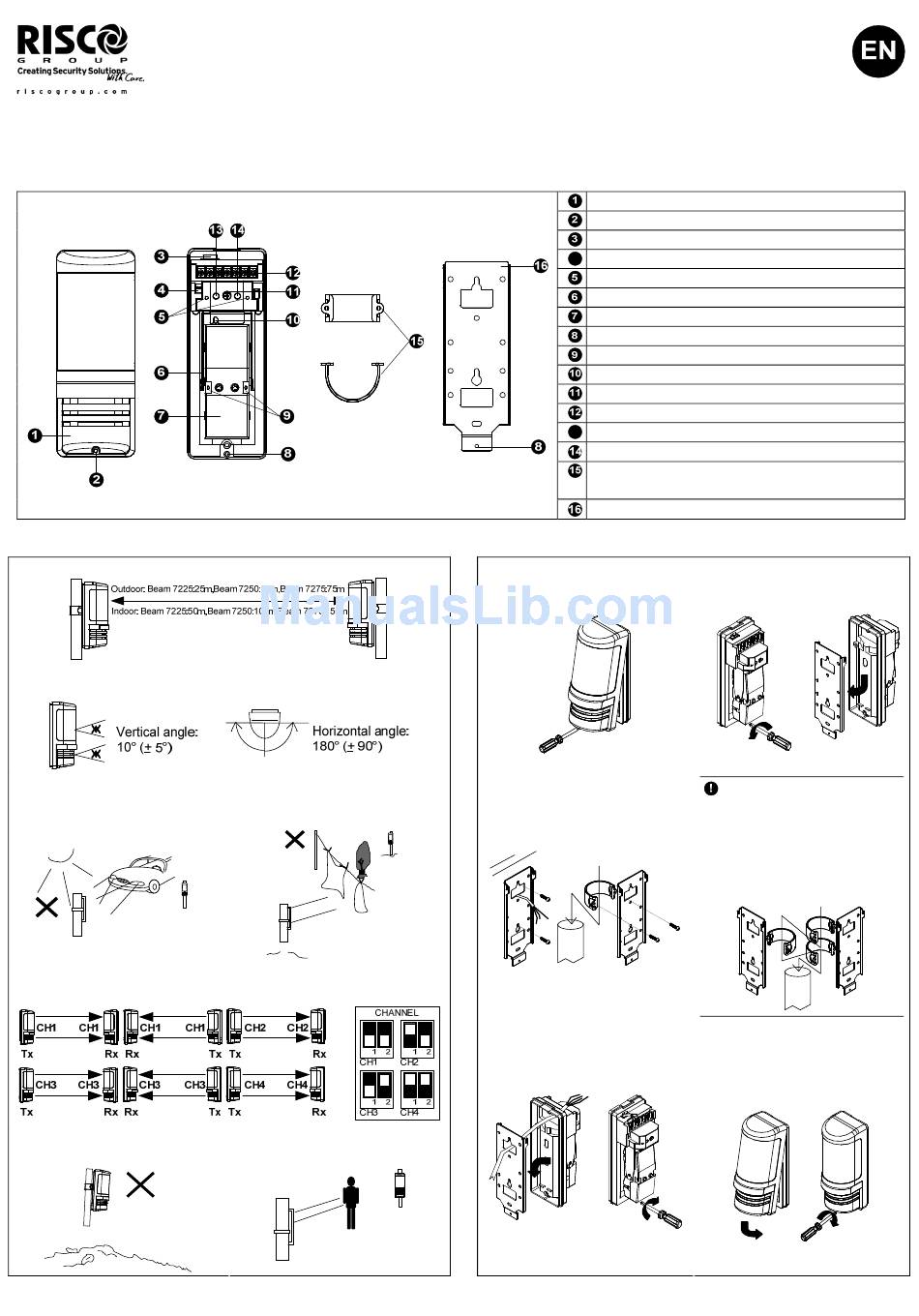

2. Layout
3. Mounting Location
1. Mount the transmitter and receiver within maximum range.
2. In case the received signal is low, install within rotation angle range
of the reflector.
3. Avoid direct sunlight (facing
sunrise or sunset) or
headlamps.

5. When installing several detectors or cross installation to avoid
collision install according to the following diagram:
6. Do not install on unstable
surfaces.
(Beam 7225/Beam 7250/Beam 7275)
4. Avoid obstacles (flowerpots,
laundry, pets) between receiver and
transmitter.


7.  After mounting, adjust optical
axis and conduct a walk test.

IR Beam 72
Installation Guide
4
13
4. Installation Method
1. To remove front cover,
unscrew front bottom screw.

3. Mount on desired wall or pole
and connect wires through wire
entry (see terminal block).




4. Connect the wire through the
upper terminal block. Replace
the bracket and fixing screw.


‐1‐
Cover
Screw
Wire Entry
Channel Option Switch
Optical Axis Monitor Jack (Receiver)
Optical Axis Rotation
Reflector and Filter
Bracket and Base Attaching Holes
Optical Axis Windows
Optical Axis Screw
Response Speed VR (Receiver)
Terminal Block
LED
Sense LED
D‐belt for pole mounting
(purchased separately ‐ P/N: RBM72P00000A)
Bracket
2. To separate bracket from
detector, unscrew bottom screw.



 When mounting two
brackets on one pole, install a
pair of D‐belts at the upper and
lower parts and install another
D‐belt in the middle for equal
mounting height.



5. Adjust the optical axis and
conduct a walk test. Then,
replace front cover.






Advertisement

loading
Need help?

Need help?

Do you have a question about the Beam 7225 and is the answer not in the manual?

Questions and answers

Summary of Contents for Risco Beam 7225

  • Page 1   IR Beam 72 (Beam 7225/Beam 7250/Beam 7275) Installation Guide 1. Introduction The IR Beam 72 outdoor detectors employ twin beams with advanced optics and four selectable channels, providing reliable detection.  2. Layout Cover Screw Wire Entry  Channel Option Switch  Optical Axis Monitor Jack (Receiver)  Optical Axis Rotation  Reflector and Filter  Bracket and Base Attaching Holes  Optical Axis Windows  Optical Axis Screw  Response Speed VR (Receiver)  Terminal Block  Sense LED  D‐belt for pole mounting   (purchased separately ‐ P/N: RBM72P00000A)  Bracket  3. Mounting Location 4. Installation Method 1. Mount the transmitter and receiver within maximum range.  1. To remove front cover,  2. To separate bracket from ...
  • Page 2: Technical Specifications

    9. External Dimensions  Fine adjustment of an optical axis:  An error can be caused in the installer’s field of vision. So, fine  adjustment must be conducted using a built‐in monitor jack and a  tester.    4. Fine adjustment method:  (1) Insert “+” on tester to receiver’s positive voltage, “_”on tester  should connect to “_” on receiver. Turn the receiverʹs reflector to the  right or left so tester voltage is maximized. Avoid blocking the  reflector with your hands.  Sense Adjustment monitor jack RISCO Group Limited Warranty RISCO Group and its subsidiaries and affiliates (ʺSellerʺ) warrants its products to be free from defects in materials and  workmanship under normal use for 24 months from the date of production. Because Seller does not install or connect  the product and because the product may be used in conjunction with products not manufactured by the Seller, Seller  cannot guarantee the performance of the security system which uses this product. Sellerʹs obligation and liability under  this warranty is expressly limited to repairing and replacing, at Sellerʹs option, within a reasonable time after the date of  delivery, any product not meeting the specifications. Seller makes no other warranty, expressed or implied, and makes  no warranty of merchantability or of fitness for any particular purpose. In no case shall seller be liable for any  Tester consequential or incidental damages for breach of this or any other warranty, expressed or implied, or upon any other  basis of liability whatsoever. Sellerʹs obligation under this warranty shall not include any transportation charges or costs  Receiver * Bottom block, of installation or any liability for direct, indirect, or consequential damages or delay. Seller does not represent that its  * Non block Monitor Top Monitor product may not be compromised or circumvented; that the product will prevent any personal injury or property loss ...
