Zircon StudSensor SL Manual

Hide thumbs Also See for StudSensor SL:
1
2
3
4
5

Advertisement

Quick Links

Download this manual
StudSensor
The Zircon StudSensor
and metal studs up to ¾ in. (19 mm) deep in walls.
The StudSensor
and joists up 1 ½ in. (38 mm) deep in walls, floors,
and ceilings. Both feature a sleek, high-impact case, a
built-in belt clip, and the SpotLite

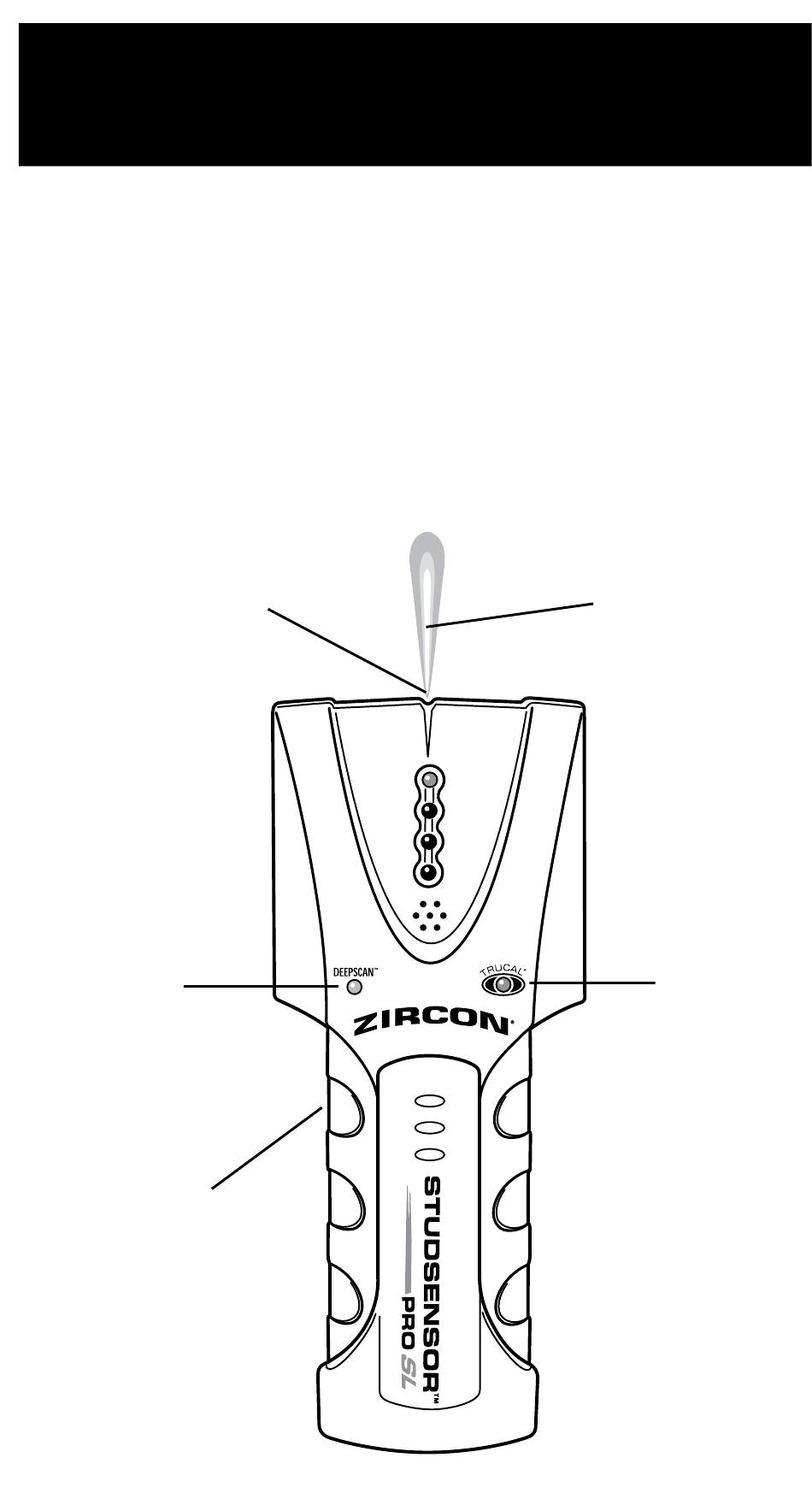

Stud Edge Groove
DEEPSCAN
®
Mode LED
(StudSensor
Pro SL only)
Power Button
SL /StudSensor
™
Stud Finder
Pro SL locates the edges of studs
™
™
SL finds the edges of wood
™
™
Pointing System.
®
SpotLite
Pointing System
Pro SL
®
TruCal
LED
®

Advertisement

loading
Need help?

Need help?

Do you have a question about the StudSensor SL and is the answer not in the manual?

Questions and answers

Related Manuals for Zircon StudSensor SL

Summary of Contents for Zircon StudSensor SL

  • Page 1 StudSensor SL /StudSensor Pro SL ™ ™ Stud Finder The Zircon StudSensor SL finds the edges of wood ™ and metal studs up to ¾ in. (19 mm) deep in walls. The StudSensor Pro SL locates the edges of studs ™...

  • Page 2: Installing The Battery

    1. INSTALLING THE BATTERY NOTE: DO NOT LOOSEN OR REMOVE SCREW ON BACK OF THE UNIT. Squeeze sides of unit to help release clip end. Slide 9-V battery into compartment, terminal side first, matching (+) and (-) terminals from battery to case. Replace the clip.

  • Page 3: Operating Tips

    Without releasing Power button, continue scanning beyond marked spot until green LED goes out. Slide unit in reverse direction to locate other edge of stud. Mark this second spot. Middle of stud is centered between the two marks. 3. DIFFICULTY LOCATING A STUD? TRY DEEPSCAN MODE ®...
  • Page 4 • Avoid placing your other hand, or any other part of your body, on the surface being scanned. • Depending on the proximity of electrical wiring or pipes to the wall surface, the scanner may detect them in the same manner as studs. Caution should always be used when nailing, cutting, or drilling in walls, floors, and ceilings that may contain these items.
  • Page 5 Zircon. Any implied warranties applicable to this product Allow 4 to 6 weeks for delivery. are limited to the one year period following its purchase. IN NO EVENT WILL ZIRCON Customer Service: 1-800-245-9265 or 1-408-963-4550 BE LIABLE FOR ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING Monday–Friday, 8:00 a.m.
