GB
BEFORE YOU BEGIN
- Always use new a new 9V alkaline battery with an extended expiration date at least 3 years
beyond the current date. Be sure not to pull on wires when connecting/disconnecting a battery.
- Readings should always be consistent and repeatable.
- Clean tool with a dry cloth only. Do not expose tool to liquids.
- If the device is used in a manner not specified here, then the protection provided by the device
may be impaired.
- No part of this device may be replaced or repaired by anyone except the manufacturer.
TROUBLESHOOTING & CONSTRUCTION TIPS
SITUATION
Difficulty detecting
metal accurately.
Calibration is lost.
Detector does
not operate.
The MetalliScanner
™
detector locates metal through concrete and
most non-metallic materials.
Two scanning methods (Wide and Pinpoint)
provide options for quickly finding plumbing,
duct work, rebar, nails and screws in walls,
floors, and ceilings. It also finds studs in lath
and plaster walls by locating columns of nails
that attach wood lath to the studs. This tool is
also useful for scanning reclaimed or recycled
lumber to find hidden metal before sawing
and planning.
The detector can find ferrous (magnetic) metal
such as 13 mm rebar up to 10 cm deep. It can
also locate non-ferrous (non-magnetic) metal
such as 13 mm copper pipe up to 5 cm deep.
Targets found at the maximum depth may
only be indicated by the first red LED on
the display.
Visit uk.zircon.com for the
most current instructions.
MetalliScanner
Electronic Metal Detector
LIKELY CAUSE
Metal objects
grouped too closely
prevent calibration.
Tool was turned off.
Low battery.
m40 electronic metal
™
• Avoid wearing jewelry, including watches, during scan.
Remove large metal tools from area when feasible.
–
• Allow 5
10 minutes for temperature to stabilize before
operating if unit has been moved to an area with a 5
change or greater (such as from air-conditioned building to
outdoors on a warm day).
• Release ON Button, then recalibrate before repeating scan.
Tool calibrates automatically when powered up.
Recalibrate as needed for more accurate readings.
Install new 9V alkaline battery with an extended
expiration date.

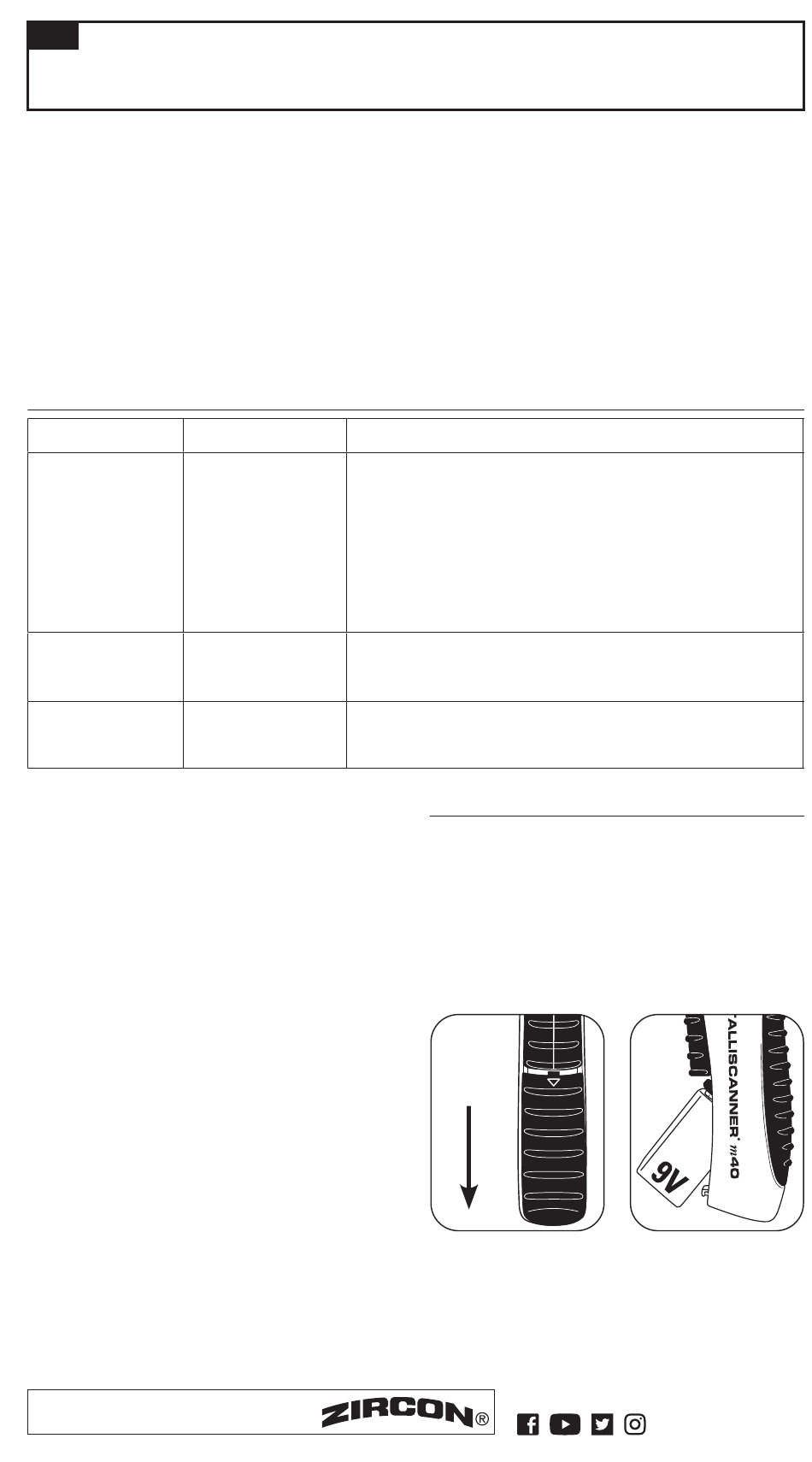

INSTALL 9V BATTERY
1. Remove the battery cover.
2. Insert a 9V battery with an extended
expiration date. Be sure not to pull on wires
when connecting/disconnecting a battery.
3. Slide the cover back on until it
snaps in place.
Slide
down
to open
m40
SOLUTION
–
6ºC

Advertisement

loading
Need help?

Need help?

Do you have a question about the MetalliScanner m40 and is the answer not in the manual?

Questions and answers

Related Manuals for Zircon MetalliScanner m40

Summary of Contents for Zircon MetalliScanner m40

  • Page 1 (non-magnetic) metal such as 13 mm copper pipe up to 5 cm deep. Targets found at the maximum depth may only be indicated by the first red LED on the display. Visit uk.zircon.com for the most current instructions.
  • Page 2 Sensor Bar (Illuminates Blue) Ergonomic Grip ON Button Battery Cover LEDs (See Below) Sensor End Indicator LEDs (Red) READY LED (Green) NOTE: LEDs are located on both sides of the tool. ON Button WIDE SCAN 1. Hold the tool with your thumb on the ON Button.
  • Page 3 a strong target. Small targets or targets deep under the surface will not do this. In this case, use the highest illuminated Indicator LED to local metal. 5. Mark the point with the strongest indication, and continue scanning in the same direction until the indicators decrease, and mark that point.
  • Page 4 hold the ON Button. The READY light indicates calibration is complete. 3. Without releasing the ON Button, move the tool near the area to be scanned, but without actually touching the surface. Maintain the perpendicular angle. 4. As the tool comes near metal, the red Indicator LEDs will light up.
  • Page 5 2. To confirm that a stud was found, not a pipe or other metal, scan same area vertically, use the Pinpoint Scan procedure to identify a nail pattern. (Figure E) 3. Mark the scan results thoroughly. Do not Figure E assume that everything found is a stud: •...

  • Page 6: Limited Two-Year Warranty

    IN NO EVENT WILL ZIRCON BE LIABLE FOR ANY LOSS THAT IS NOT FORSEEABLE RESULTING FROM POSSESSION, USE, OR MALFUNCTION OF THIS PRODUCT.
