Summary of Contents for Ubiquiti NanoBeam ac

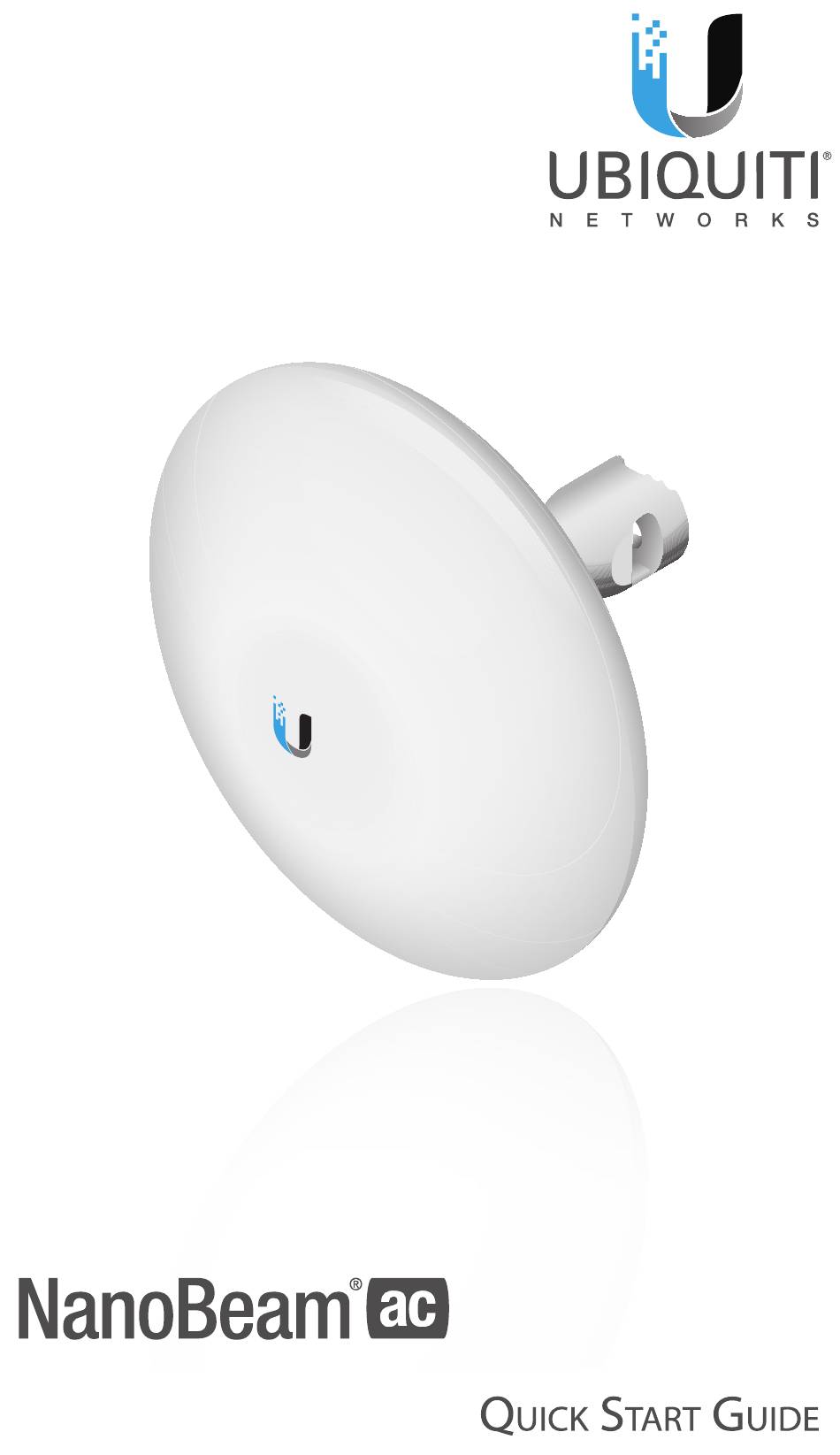

- Page 1 5 GHz, 16 dBi airMAX ac CPE ® Model: NBE-5AC-16...
-
Page 2: Package Contents
Quick Start with Mounting Bracket Guide TERMS OF USE: Ubiquiti radio devices must be professionally installed. Shielded Ethernet cable and earth grounding must be used as conditions of product warranty. TOUGHCable ™ is designed for outdoor installations. It is the customer’s responsibility to follow local country regulations, including operation within legal frequency channels, output power, and Dynamic Frequency Selection (DFS) requirements. -
Page 3: Installation Requirements
Ethernet connections and should be grounded through the AC ground of the PoE. We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti Networks. For more details, visit www.ubnt.com/toughcable Hardware Overview LEDs... - Page 4 The Ethernet port is used to connect the power and should be connected to the LAN and DHCP server. Power can be provided by any of the following: • Gigabit PoE Adapter (included) • Ubiquiti Networks TOUGHSwitch ™ • Ubiquiti Networks EdgeRouter /EdgeSwitch® PoE ™...
-
Page 5: Hardware Installation
Hardware Installation The NanoBeam can be mounted on a pole or to a wall. Perform the steps for the appropriate installation: Pole-Mount 1. Insert the Ball Joint Mount into the Lock Ring with the threads of the Lock Ring facing the ball joint. 2. - Page 6 3. Wrap the Metal Strap around the pole. Use a 7 mm socket drive or screwdriver to turn the screw clockwise and securely fasten the strap to the pole. 4. Attach the NanoBeam to the Ball Joint Mount and turn the Lock Ring to secure it.
- Page 7 Wall-Mount The NanoBeam must be mounted directly to a wood stud or other structurally stable surface to avoid damage to the mounting hole when you adjust the aim. Optional Accessory To enhance stability, you can use the NanoBeam Wall Mount Kit, model NBE-WMK (sold separately).
- Page 8 4. If you are using the optional NanoBeam Wall Mount Kit, skip to step b. a. To attach the Ball Joint Mount to the wall, insert a fastener (not included) through the center of the ball joint, and into the wall. Securely tighten the fastener. Proceed to step 5.
- Page 9 5. Attach the NanoBeam to the Ball Joint Mount and turn the Lock Ring to secure it. Keep the Lock Ring loose enough to allow the NanoBeam to pivot for aiming. Aiming 1. Aim the front of the NanoBeam towards the other end of the wireless link, while using the bubble level to ensure level alignment.
- Page 10 Connecting to the Gigabit PoE Adapter 1. Remove the port cover by pressing down the center of the cover and sliding the cover out. 2. Connect an Ethernet cable to the Ethernet port. 3. Replace the port cover.
-
Page 11: Connecting Power Over Ethernet
Connecting Power over Ethernet 1. Connect the Ethernet cable from the NanoBeam’s Ethernet port to the adapter’s POE port. 2. Connect an Ethernet cable from your LAN to the adapter’s LAN port. 3. Connect the Power Cord to the adapter’s power port. Connect the other end of the Power Cord to a power outlet. - Page 12 Accessing airOS Verify connectivity in the airOS Configuration Interface. 1. Make sure that your host machine is connected via Ethernet to the NanoBeam. 2. Configure the Ethernet adapter on your host system with a static IP address on the 192.168.1.x subnet. 3.
-
Page 13: Installer Compliance Responsibility
Installer Compliance Responsibility Devices must be professionally installed and it is the professional installer’s responsibility to make sure the device is operated within local country regulatory requirements. The Output Power field is provided to the professional installer to assist in meeting regulatory requirements. -
Page 14: Specifications
Specifications NBE-5AC-16 Dimensions (Mount Included) 140 x 140 x 54 mm (5.51 x 5.51 x 2.13") Weight (Mount Included) 320 g (11.3 oz) Gain 16 dBi Networking Interface (1) 10/100/1000 Ethernet Port Enclosure Outdoor UV Stabilized Plastic Max. Power Consumption Power Supply 24V, 0.5A Gigabit PoE Adapter (Included) Power Method... -
Page 15: Safety Notices
Safety Notices 1. Read, follow, and keep these instructions. 2. Heed all warnings. 3. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in location that can be submerged by water. WARNING: Avoid using this product during an electrical storm. -
Page 16: Limited Warranty
(VI) has no original Ubiquiti MAC label, or is missing any other original Ubiquiti label(s); or (VII) has not been received by Ubiquiti within 30 days of issuance of the RMA. -
Page 17: Limitation Of Liability
SUBJECT TO LIMITATIONS, INTERRUPTIONS, DELAYS, CANCELLATIONS AND OTHER PROBLEMS INHERENT IN THE USE OF COMMUNICATIONS FACILITIES. UBIQUITI NETWORKS, ITS AFFILIATES AND ITS AND THEIR THIRD PARTY PROVIDERS ARE NOT RESPONSIBLE FOR ANY INTERRUPTIONS, DELAYS, CANCELLATIONS, DELIVERY FAILURES, DATA LOSS, CONTENT CORRUPTION, PACKET LOSS, OR OTHER DAMAGE RESULTING FROM ANY OF THE FOREGOING. - Page 18 damages, so the above limitation may not apply to you. EXCEPT TO THE EXTENT ALLOWED BY LOCAL LAW, THESE WARRANTY TERMS DO NOT EXCLUDE, RESTRICT OR MODIFY, AND ARE IN ADDITION TO, THE MANDATORY STATUTORY RIGHTS APPLICABLE TO THE LICENSE OF ANY SOFTWARE (EMBEDDED IN THE PRODUCT) TO YOU.
-
Page 19: Industry Canada
Industry Canada CAN ICES-3(B)/NMB-3(B) To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: This device may not cause interference, and This device must accept any interference, including interference that... - Page 20 RF Exposure Warning The antennas used for this transmitter must be installed to provide a separation distance of at least 43 cm from all persons and must not be located or operating in conjunction with any other antenna or transmitter. Les antennes utilisées pour ce transmetteur doivent être installé...
- Page 21 RoHS/WEEE Compliance Statement English European Directive 2012/19/EU requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams.
- Page 22 Español La Directiva 2012/19/UE exige que los equipos que lleven este símbolo en el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados. El símbolo indica que el producto en cuestión debe separarse de los residuos domésticos convencionales con vistas a su eliminación.
-
Page 23: Declaration Of Conformity
[German] Anforderungen und den anderen relevanten Vorschriften der Richtlinie 1999/5/EG befindet. Ελληνική Δια του παρόντος, UBIQUITI NETWORKS, δηλώνει ότι αυτή η συσκευή UBIQUITI NETWORKS, είναι σε συμμόρφωση με τις [Greek] βασικές απαιτήσεις και τις λοιπές σχετικές διατάξεις της οδηγίας 1995/5/ΕΚ. -
Page 24: Online Resources
Networks, the Ubiquiti U logo, the Ubiquiti beam logo, airMAX, airOS, EdgeRouter, EdgeSwitch, NanoBeam, TOUGHCable, and TOUGHSwitch are trademarks or registered trademarks of Ubiquiti Networks, Inc. in the United States and in other countries. All other trademarks are the property of their respective owners.
