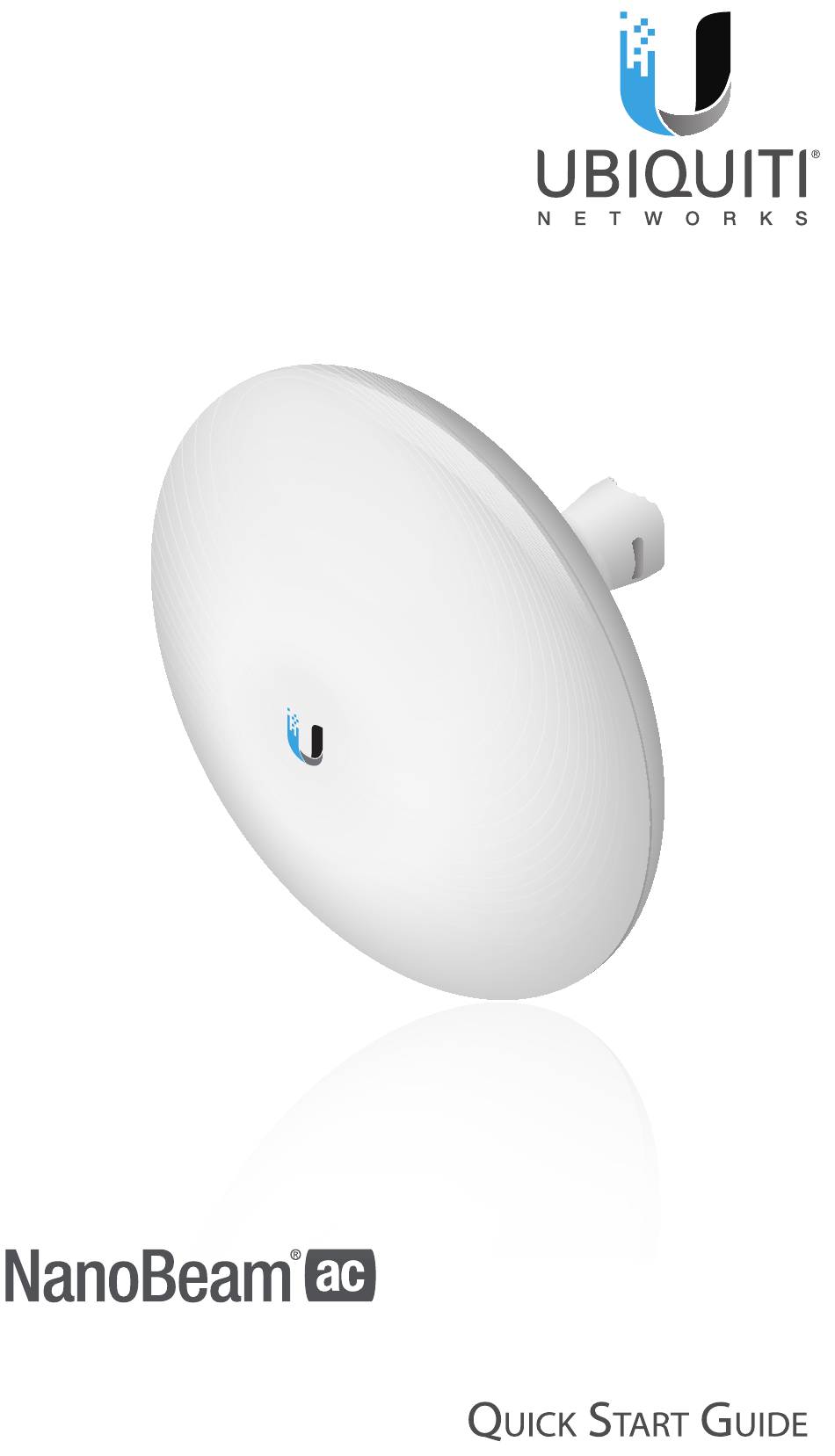

- Page 1 5 GHz, 19 dBi airMAX ac CPE ® Model: NBE-5AC-19...
-
Page 2: Package Contents
Quick Start with Mounting Bracket Guide TERMS OF USE: Ubiquiti radio devices must be professionally installed. Shielded Ethernet cable and earth grounding must be used as conditions of product warranty. TOUGHCable ™ designed for outdoor installations. It is the customer’s responsibility to follow local country regulations, including operation within legal frequency channels, output power, and Dynamic Frequency Selection (DFS) requirements. -
Page 3: Installation Requirements
AC ground of the PoE. We recommend that you protect your networks from the most brutal environments and devastating ESD attacks with industrial-grade shielded Ethernet cable, TOUGHCable from Ubiquiti Networks. For more details, visit www.ubnt.com/toughcable Hardware Overview LEDs... - Page 4 This Gigabit Ethernet port is used to connect the power and should be connected to the LAN and DHCP server. Power can be provided by any of the following: • Gigabit PoE Adapter (included) • Ubiquiti Networks TOUGHSwitch ™ • Ubiquiti Networks EdgeSwitch or EdgeRouter ™...
-
Page 5: Hardware Installation
Hardware Installation The NanoBeam can be mounted on a pole or to a wall. Perform the steps for the appropriate installation: Pole-Mount 1. Insert the Ball Joint Mount into the Lock Ring with the threads of the Lock Ring facing the ball joint. 2. - Page 6 3. Wrap the Metal Strap around the pole. Use a 7 mm socket wrench to turn the screw clockwise and securely fasten the clamp to the pole. 4. Attach the NanoBeam to the Ball Joint Mount and turn the Lock Ring to secure it. Keep the Lock Ring loose enough to allow the NanoBeam to pivot for aiming.
- Page 7 Wall-Mount The NanoBeam must be mounted directly to a wood stud or other structurally stable surface to avoid damage to the mounting hole when you adjust the aim. Optional Accessory To enhance stability, you can use the NanoBeam Wall Mount Kit, model NBE-WMK (sold separately).
- Page 8 4. If you are using the optional NanoBeam Wall Mount Kit, then skip to step b. a. To attach the Ball Joint Mount to the wall, insert a fastener (not included) through the center of the ball joint, and into the wall. Securely tighten the fastener. Proceed to step 5.
- Page 9 5. Attach the NanoBeam to the mount Ball Joint Mount and turn the Lock Ring to secure it. Keep the Lock Ring loose enough to allow the NanoBeam to pivot for aiming. Aiming 1. Aim the front of the NanoBeam towards the other end of the wireless link, while using the bubble level to ensure level alignment.
- Page 10 Connecting to the PoE Adapter 1. Remove the port cover by pressing down the center of the cover and sliding the cover out. 2. Connect an Ethernet cable to the Ethernet port. 3. Replace the port cover.
-
Page 11: Connecting Power Over Ethernet
Connecting Power over Ethernet 1. Connect the Ethernet cable from the NanoBeam’s Ethernet port to the adapter’s POE port. 2. Connect an Ethernet cable from your LAN to the adapter’s LAN port. 3. Connect the Power Cord to the adapter’s power port. Connect the other end of the Power Cord to a power outlet. - Page 12 Accessing airOS Verify connectivity in the airOS® Configuration Interface. 1. Make sure that your host system is connected via Ethernet to the NanoBeam. 2. Configure the Ethernet adapter on your host system with a static IP address on the 192.168.1.x subnet. 3.
-
Page 13: Installer Compliance Responsibility
Installer Compliance Responsibility Devices must be professionally installed and it is the professional installer's responsibility to make sure the device is operated within local country regulatory requirements. The Output Power field is provided to the professional installer to assist in meeting regulatory requirements. -
Page 14: Specifications
Specifications NBE-5AC-19 Dimensions (Mount Included) 189 x 189 x 125 mm (7.44 x 7.44 x 4.92") Weight (Mount Included) 530 g (1.17 lb) Operating Frequency Worldwide: 5150 - 5875 MHz USA: 5725 - 5850 MHz Gain 19 dBi Networking Interface (1) 10/100/1000 Ethernet Port Enclosure Outdoor UV Stabilized Plastic... -
Page 15: Safety Notices
Safety Notices Read, follow, and keep these instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in location that can be submerged by water. WARNING: Avoid using this product during an electrical storm. -
Page 16: Limited Warranty
(VI) has no original Ubiquiti MAC label, or is missing any other original Ubiquiti label(s); or (VII) has not been received by Ubiquiti within 30 days of issuance of the RMA. -
Page 17: Limitation Of Liability
SUBJECT TO LIMITATIONS, INTERRUPTIONS, DELAYS, CANCELLATIONS AND OTHER PROBLEMS INHERENT IN THE USE OF COMMUNICATIONS FACILITIES. UBIQUITI NETWORKS, ITS AFFILIATES AND ITS AND THEIR THIRD PARTY PROVIDERS ARE NOT RESPONSIBLE FOR ANY INTERRUPTIONS, DELAYS, CANCELLATIONS, DELIVERY FAILURES, DATA LOSS, CONTENT CORRUPTION, PACKET LOSS, OR OTHER DAMAGE RESULTING FROM ANY OF THE FOREGOING. - Page 18 Note Some countries, states and provinces do not allow exclusions of implied warranties or conditions, so the above exclusion may not apply to you. You may have other rights that vary from country to country, state to state, or province to province. Some countries, states and provinces do not allow the exclusion or limitation of liability for incidental or consequential damages, so the above limitation may not apply to you.
-
Page 19: Industry Canada
This radio transmitter (FCC: SWX-NBEAC) has been approved by FCC to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device. - Page 20 Cet émetteur radio (IC: 6545A-NBEAC) a été approuvée par Industrie Canada pour l’exploitation avec l’antenne types énumérés ci-dessous avec le gain maximal admissible et requis l’impédance de l’antenne pour chaque type d’antenne indiqué. Types d’antenne non inclus dans cette liste, ayant un gain supérieur au gain maximal indiqué...
- Page 21 RoHS/WEEE Compliance Statement English European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams.
-
Page 22: Declaration Of Conformity
[German] Anforderungen und den anderen relevanten Vorschriften der Richtlinie 1999/5/EG befindet. Ελληνική Δια του παρόντος, UBIQUITI NETWORKS, δηλώνει ότι αυτή η συσκευή UBIQUITI NETWORKS, είναι σε συμμόρφωση με τις [Greek] βασικές απαιτήσεις και τις λοιπές σχετικές διατάξεις της οδηγίας 1995/5/ΕΚ. -
Page 23: Online Resources
Networks, the Ubiquiti U logo, the Ubiquiti beam logo, airMAX, airOS, EdgeRouter, EdgeSwitch, NanoBeam, TOUGHCable, and TOUGHSwitch are trademarks or registered trademarks of Ubiquiti Networks, Inc. in the United States and in other countries. All other trademarks are the property of their respective owners.
