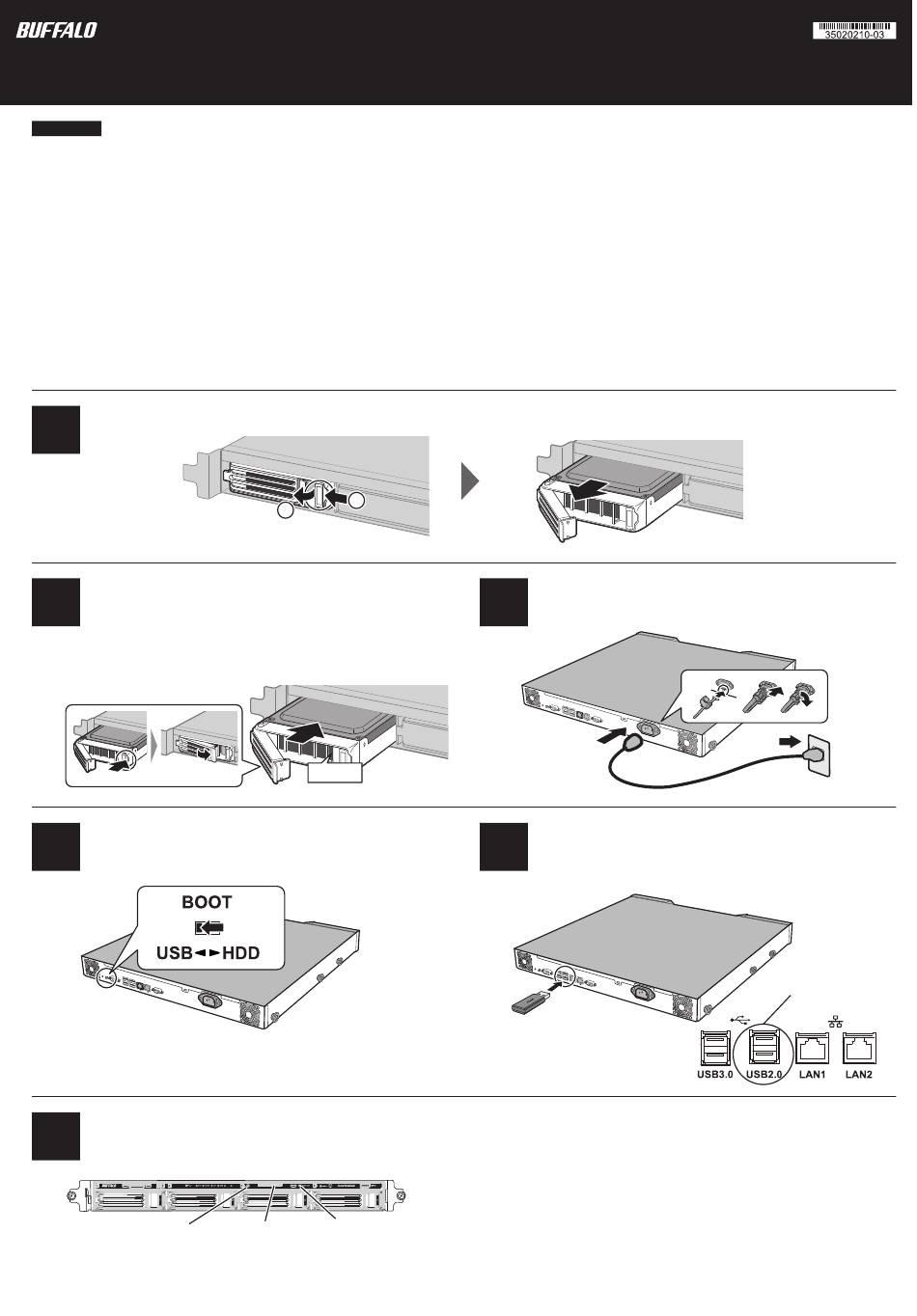

Buffalo TeraStation TS5400R Quick Setup Manual

English
Thank you for purchasing a Buffalo TeraStation.
Hard drives are not included with this device. Before use, obtain hard drives and install them in the TeraStation. Firmware for installation is
included on a USB recovery device.
For product specifications, please refer to the Buffalo website. Weight and power consumption will depend on the installed hard drives' specifications.
・During installation, any data on the drives will be deleted.
・Do not add a hard drive that has previously been used in a
LinkStation or TeraStation.
・For best results, use Buffalo OP-HDS series hard drives (sold separately).
・All drives in a RAID array should be identical.
・At least one drive must be installed in the TeraStation during firmware
updates.
・Use the supplied USB recovery device when performing setup for the
first time only.
1 Squeeze the tab to the left on drive bay #1 and swing out the drive lock. Slide the cartridge out of the TeraStation.
Insert the OP-HDS series hard drive (sold separately) into the
2
empty slot from step 1 (drive bay #1). Slide the drive in with
the locking mechanism open. Swing the lock back down until
it clicks into place.
To insert multiple drives, repeat step 1 for each drive.
4 Set the boot mode switch on the rear to "USB".
6
Power button
TS5400R Quick Setup Guide
1
2
OP-HDS
LCD panel Function button
・The TeraStation is fragile and should be handled with care.
・Watch out for sharp metal edges during installation.
・Do not disassemble or modify any components when replacing a hard
drive as this will void your warranty.
・To avoid damaging the TeraStation with static electricity, ground
yourself by touching something made of metal before handling any
sensitive electronic parts.
Connect the TeraStation with the power cable.
3
5 Connect the supplied USB recovery device to the USB 2.0 port
of the TeraStation.
Before connecting the supplied USB recovery device, be sure to remove any other
USB devices connected to the TeraStation.
Press the power button. The LCD panel will light up as the TeraStation boots.
When "Recovery I41 PushFuncToStart" is displayed on the LCD panel, press the function button. As the
firmware is read, the LCD panel will show "Recovery I37 SystemRecovering". While this message is
displayed, all of the status LEDs are lit green.
During installation, the TeraStation will reboot after the firmware files are read from the USB recovery
device.
The firmware will now install. When installation is complete, the TeraStation will shut down completely.
After shutdown, the message on the LCD panel changes from "Recovery I38 RecoveryFinished" to
"Recovery I39 Change Boot".
Updating the firmware will take about 10 minutes. Do not unplug the power cable or turn the TeraStation
off until update is complete.
2017.04
① ② ③
USB 2.0 port
