SECO-LARM ENFORCER SS-073Q Quick Start Manual

ENFORCER
SS-073Q
Tamper Switch
UL Listed for Supplementary Protection
FEATURES:
Used in alarm systems with normally-open circuits.
!
Silver-plated contact ensures reliability and long-term operation.
!
Small size makes it easy to hide and install.
!
SPECIFICATIONS:
Plunger Pushed in: Contact open
!
Plunger Released: Contact closed
!
Contact Rating: 0.5A at 50 VDC
!
Enclosure: High-impact Plastic Resin
!
Size: 2- / " x 1- /
3 1
! 4 16
Weight: 18 gm
!
INSTALLATION INSTRUCTIONS:
1. Decide the appropriate position for the SS-073Q. (Note that the switch must be positioned so that it will be depressed at least
1/4" [6mm] to activate).
2. Drill the three holes necessary for the SS-073Q to be mounted firmly in place. The diameter of the hole is 1/8" (3mm). Screws
should be selected according to your own particular preference and need.
3. Connect the wires to the switch terminals, using series circuitry, see illustration on Fig.1.

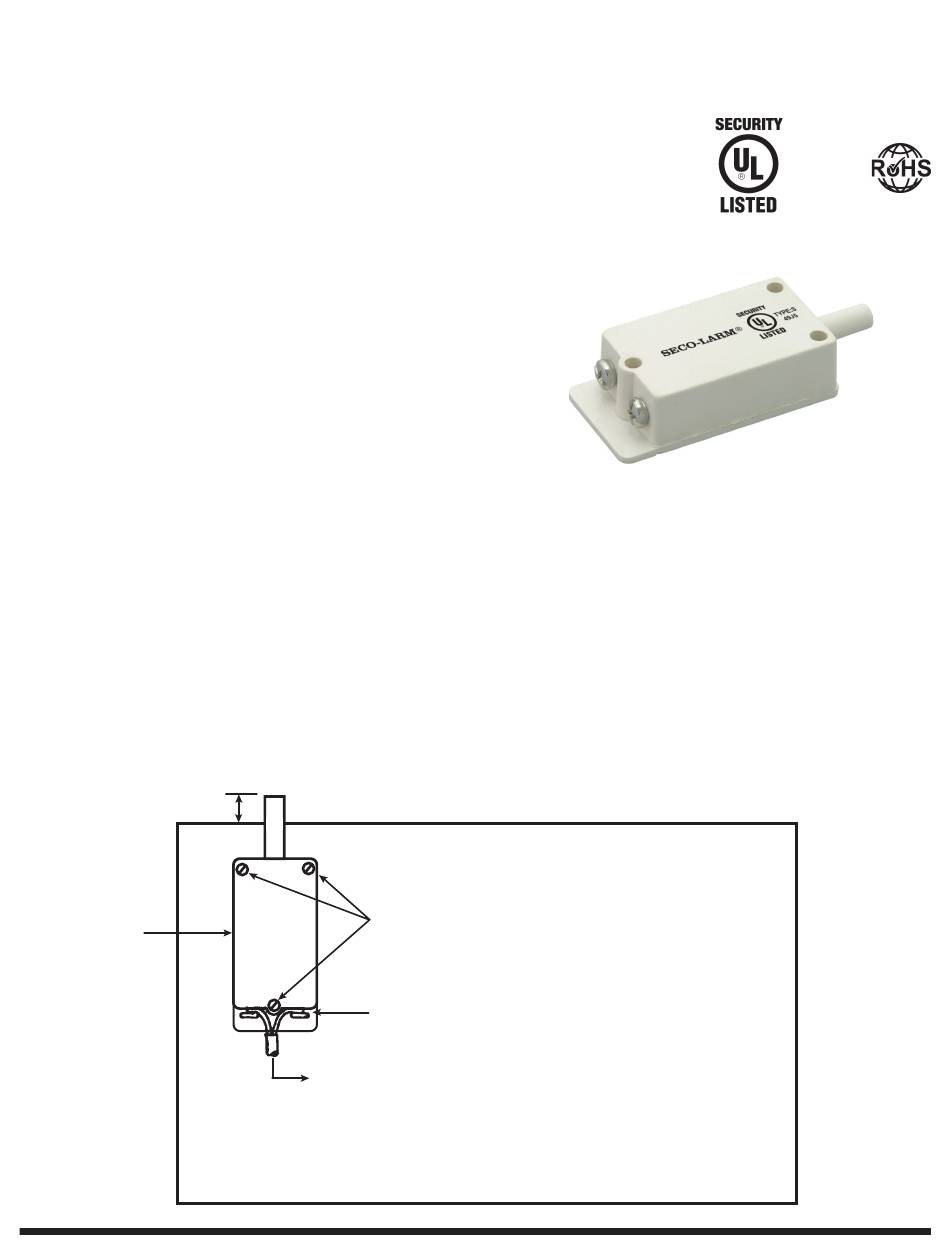

Fig.1- Used inside cabinet or drawer when
cabinet or drawer is pulled open.
1/4"(6mm)
Inside of
alarm case
Note: Products with model numbers that end with "Q" or that have a round green "Q" sticker are RoHS compliant.
®
" x / " (70 x 28 x 16mm)
5
8
Minimum activation distance
Drill three holes, each
hole 1/8" (3mm) and insert screws.
Connect the wires to switch terminals using series circuitry.
To alarm system
Important Note: When mounting the tamper switch, keep in
mind that the switch must be depressed at least 1/4" (6mm)
distance in order to activate the switch.
Type: S
49J5
