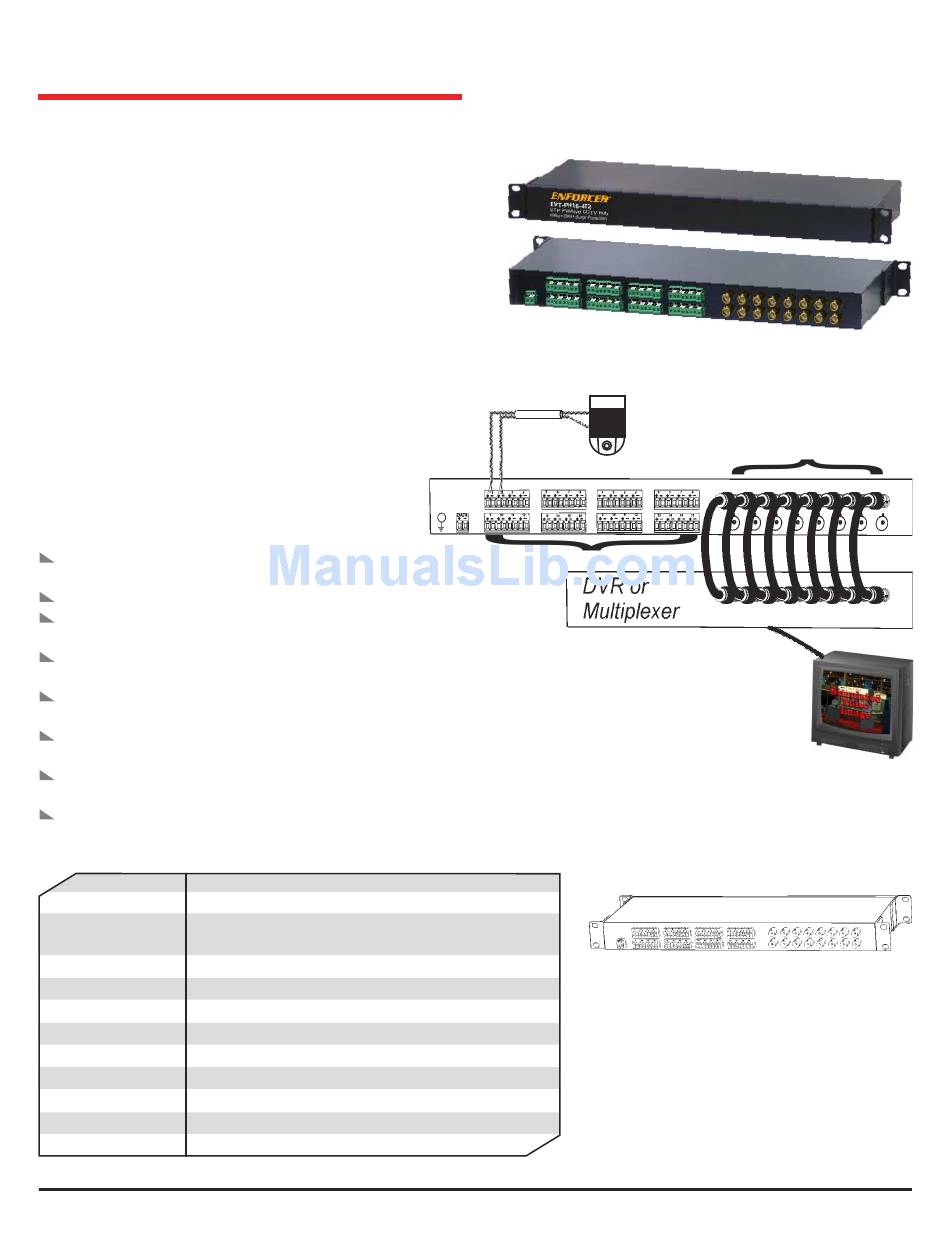

SECO-LARM 16-Port Passive Transceiver Hub EVT-PH16-4T2 Specifications

ENFORCER
16-Port Passive
Transceiver Hub
EVT-PH16-4T2
Range: Up to 2,000' (6100m)
Video Data
! !
The EVT-PH16-4T2 allows up to 16 color or monochrome CCTV
cameras to be connected via inexpensive CAT 5e unshielded
twisted pair (UTP) cable to a video switcher or multiplexer. It cuts
the cost and complexity of security networks by eliminating the
need to run expensive coax cable to multiple CCTV cameras. A
built-in RS485 port allows the transmission of PTZ (pan/tilt/zoom)
signals to up to 16 CCTV cameras or other devices.

Features:

Connects up to 16 CCTV cameras using
low-cost CAT 5e UTP cable to a central location.
Works in conjunction with passive video or active video baluns.
Works with full-motion CCTV cameras up to 2,000 feet (610
meters) away via passive video baluns.
Feeds the camera signals to nearly any standard video multiplexer
or switcher or digital video recorder via coax cables.
Built-in RS485 port connects to a PC or other device to control the
pan, tilt, and zoom (PTZ) of up to 16 remote cameras or devices.
Compact enclosure, only 1U (1.75 inches) high. Mounts in a
standard 19-inch rack.
Built-in transient protection and interference technology for
existing UTP cables.
Complete passive operation, no power required.

Specifications:

Video input ports 16 x 2-wire ports on removable terminal blocks
Video input cables Unshielded twisted pair (UTP), min. CAT 2. Use CAT 5e or
better for best range and video signal.
Video output ports
16 x BNC connectors, each 1Vp-p, 75 ohms.
Video output cables Coax.
Data input 1 x 2-wire port, for PTZ control signals from a PC.
Data output 16 x 2-wire ports on removable terminal blocks.
Power No power required.
Surge protection
Video and data
Size 1U form factor, 17.25" x 6.75" x 1.75" (482 x 170 x 44 mm)
Weight 4.9 lb. (2.2kg)
Material Steel cabinet, black matte finish.
The SECO-LARM policy is one of continual development. For that reason, SECO-LARM reserves the right to change prices and specifications without notice. SECO-LARM is not responsible for misprints.
SECO-LARM U.S.A., Inc.,
®
Tel: 1-949-261-2999 (California & International)
VIDEO
Surge Protection
16842 Millikan Avenue, Irvine, CA 92606
Fax: 1-949-261-7326
®

Typical Installations:

Data
Video
Data
Video in / data
In

Dimensions:

Email: info@seco-larm.com
Video Out
Monitor
17.25" x 6.75" x 1.75" (482 x 170 x 44 mm)
Tel: 1-800-662-0800 (Domestic U.S. & Canada)
Website: www.seco-larm.com
