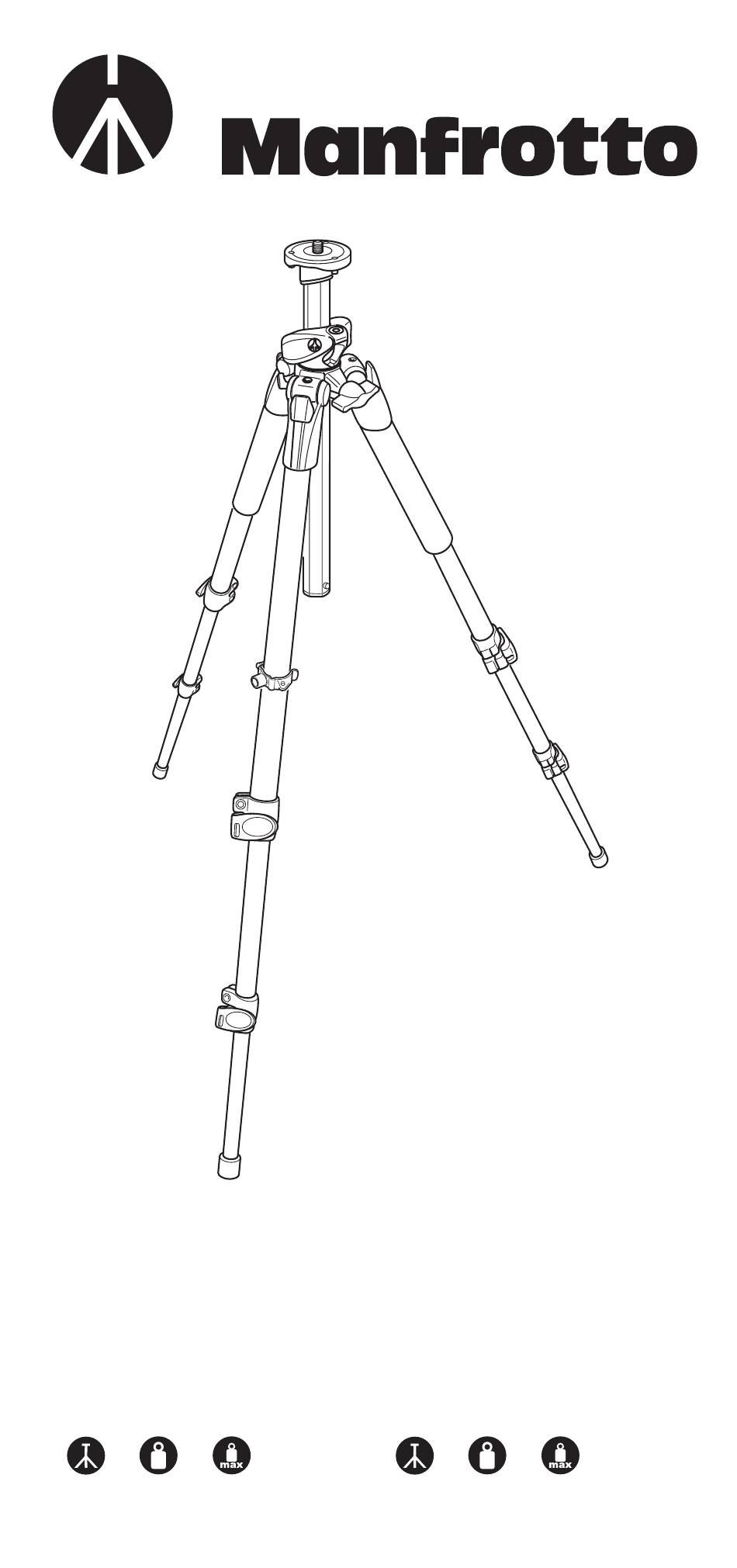

- Page 1 INSTRUCTIONS 190XPROB 055XPROB 146 cm 1,8 kg 5 kg 178,5 cm 2,4 kg 7 kg 57.5” 4 lbs 11 lbs 70.3” 5.3 lbs 15.4 lbs...
- Page 4 INTRODUCTION Designed for the professional photogra- pher, this is an extremely versatile tripod, ideal for small, medium format cameras, digital or conventional type. KEY FEATURES: • A unique sliding centrecolumn that can be operated in either a vertical or horizontal plane. • Each leg can be independently set at 4 angles of spread. • Spirit level. • A set of two leg warmers SET UP Open the 3 tripod legs. To adjust the height of the tripod, each leg has telescopic extensions that can be released by rotating lever “A” on the lock- ing collar “B”. When the required height is achieved, lock lever “A”. LEVELLING The tripod is supplied with a spirit level “H” to enable you to level the tripod. LEG ANGLE ADJUSTMENT Each leg can be set at 4 angles of spread. To change the angle on a leg, close the leg towards the centre column slightly and press down the locking button “C” at the top of the leg. Whilst holding the button down, select the new leg angle and then release button “C” to lock in position. The angle of each leg can be adjusted independently of the other two legs. The last position allows to achieve the floor level.
- Page 5 3) still keeping your other hand clear, with the same hand, rotate the center colum “D” in a vertical position as shown in figure 5.4 MOUNTING AND REMOVING A CAMERA HEAD Remove the cap “Z” (fig.1) Mount the camera head on the plate at the top of the centre column via the 3/8” mounting screw (screw head clockwise). Then raise the centre column and with a small screwdriver, tighten the three set screws “M” (supplied unmounted) up against the base of the head, taking care not to force them. This unique feature works especially well with Manfrotto heads due to the specially designed base, which prevents the head unscrew- ing accidentally. To remove the head, loosen the set screws “M” and unscrew the head from the column counter- clockwise). NOTE For outdoor use, especially in windy con- ditions, it is possible to stabilise the tri- pod: hook a counterweight (not supplied) onto the ring “L” TRANSPORTATION The tripod has an hanging ring “T” for optional carrying strap LEG LOCK TENSION ADJUSTMENT If the telescopic leg extensions slip even after having tightened the locking lever “A”, the locking tension will need to be...
