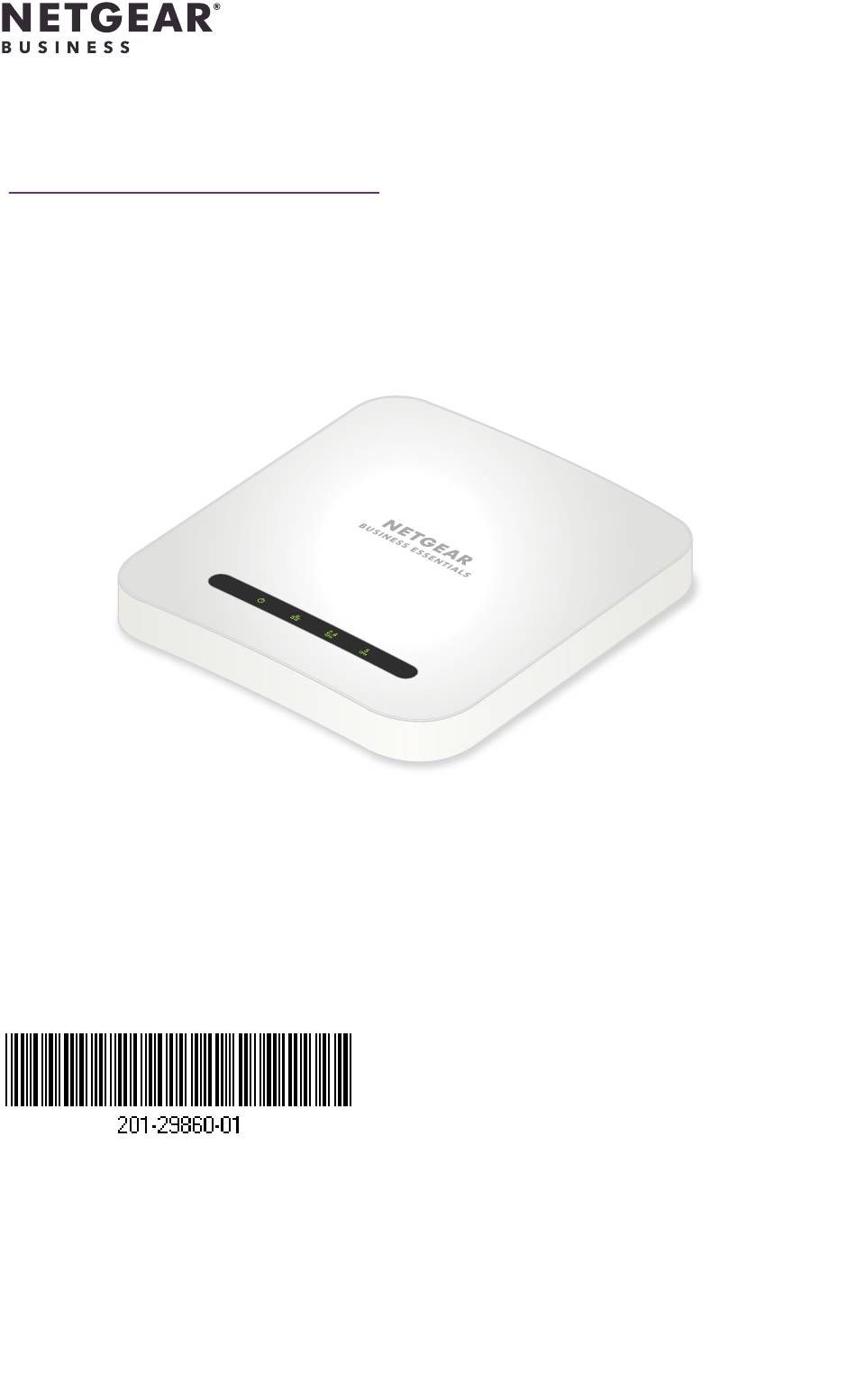

Installation Guide
Essentials WiFi 6 AX4200 Dual Band Multi-Gig Access Point
Model WAX220
NETGEAR, Inc.
September 2022
350 East Plumeria Drive
San Jose, CA 95134, USA
NETGEAR INTERNATIONAL LTD
Floor 1, Building 3,
University Technology Centre
Curraheen Road, Cork,
T12EF21, Ireland
© NETGEAR, Inc., NETGEAR and the NETGEAR
Logo are trademarks of NETGEAR, Inc. Any
non‑NETGEAR trademarks are used for reference
purposes only.

Advertisement

loading
Need help?

Need help?

Do you have a question about the WAX220 and is the answer not in the manual?

Questions and answers

Related Manuals for NETGEAR WAX220

Summary of Contents for NETGEAR WAX220

  • Page 1 San Jose, CA 95134, USA NETGEAR INTERNATIONAL LTD Floor 1, Building 3, University Technology Centre Curraheen Road, Cork, T12EF21, Ireland © NETGEAR, Inc., NETGEAR and the NETGEAR Logo are trademarks of NETGEAR, Inc. Any non‑NETGEAR trademarks are used for reference purposes only.

  • Page 2: Package Contents

    WAX220PA SKU. NOTE: You can power up the WAX220 by connecting it to a PoE switch or to a power adapter. If you purchased a WAX220 SKU without an included power adapter, you can purchase one separately.

  • Page 3: Start Here

    Start Here: Step 1. Connect the WAX220 to your network Power up the WAX220 access point (AP) using one of the following methods: • Use a PoE+ switch: Connect one end of an Ethernet cable to the LAN/PoE+ port of the AP and connect the other end to a PoE+ switch that supplies 802.3at PoE+ power.
  • Page 4 AP, which is expected behavior. You can proceed, or add an exception for the security warning. For more information, see kb.netgear.com/000062980/. • If your browser redirects to a www.netgear.com page, your computer or tablet is not connected to the AP’s management WiFi network, and you must repeat the previous step.

  • Page 5: Mounting Options

    Mounting options You can mount the AP to a wall or to a ceiling with a 15/16 in. (24 mm) T-bar, or you can install the AP freestanding on a flat surface. We recommend that you use a flat Ethernet cable so that the cable fits in the narrow space between the AP and the surface on which it is mounted or placed.
  • Page 6 Mount to a T-bar Slide the T‑bar partially into the metal bracket. Attach the metal bracket to the ceiling bar. Push the T‑bar over the ceiling bar. Use the lock screw to lock the metal bracket into place. Use the four short screws to attach the mounting plate to the T‑bar.
  • Page 7 The AP is in position and locked onto the mounting plate. Unmount the AP CAUTION: Make sure you hold the AP so that it does not drop when you release it from the mounting plate. Place your thumb on the locking latch, located behind the LEDs on opposite side of the AP. Press the latch towards the T‑bar or wall to release the lock and keep the lock open.
  • Page 8 See the regulatory compliance document before connecting the power supply. For NETGEAR’s Privacy Policy, visit https://www.netgear.com/about/privacy‑policy. By using this device, you are agreeing to NETGEAR’s Terms and Conditions at https://www.netgear.com/about/terms‑and‑conditions. If you do not agree, return the device to your place of purchase within your return period.
