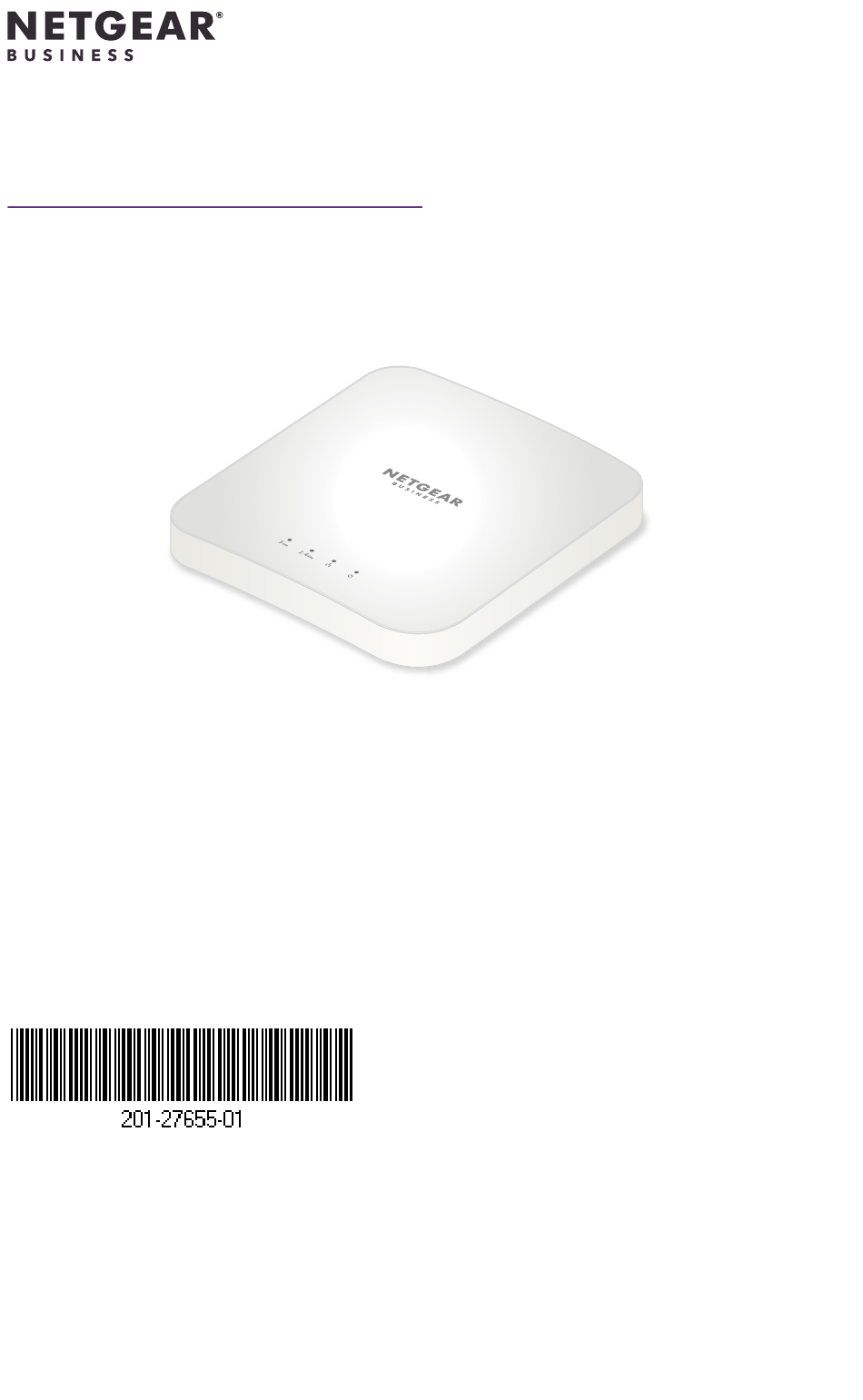

Installation Guide
WiFi 6 AX1800 Dual Band PoE Access Point
Model WAX214
NETGEAR, Inc.
October 2020
350 East Plumeria Drive
San Jose, CA 95134, USA
NETGEAR INTERNATIONAL LTD
Floor 1, Building 3,
University Technology Centre
Curraheen Road, Cork,
T12EF21, Ireland
© NETGEAR, Inc., NETGEAR and the NETGEAR
Logo are trademarks of NETGEAR, Inc. Any
non‑NETGEAR trademarks are used for reference
purposes only.

Advertisement

loading
Need help?

Need help?

Do you have a question about the WAX214 and is the answer not in the manual?

Questions and answers

Related Manuals for NETGEAR WAX214

Summary of Contents for NETGEAR WAX214

  • Page 1 San Jose, CA 95134, USA NETGEAR INTERNATIONAL LTD Floor 1, Building 3, University Technology Centre Curraheen Road, Cork, T12EF21, Ireland © NETGEAR, Inc., NETGEAR and the NETGEAR Logo are trademarks of NETGEAR, Inc. Any non‑NETGEAR trademarks are used for reference purposes only.

  • Page 2: Mounting Options

    Mounting options You can mount the access point to a solid surface (a wall or a ceiling), or to a ceiling with a 15/16 in. (23.8 mm) T-bar, or you can install the access point freestanding on a flat surface. We recommend that you use a flat Ethernet cable so that the cable fits in the narrow space between the access point and the surface on which it is mounted or placed.
  • Page 3 Mount to a T-bar 1. Slide the 15/16 in. (23.8 mm) bracket between the guides on the bottom of the access point until it locks in place. The locking tab must be at the front of the access point. 2. Hold the access point upside down. Note: If you can reach behind the T‑bar, hold the T‑bar with one hand and the access point with your other hand.
  • Page 4 Mount to a solid ceiling 1. Using the anchors and screws provided, attach the 15/16 in. (23.8 mm) bracket with the screw holes to the ceiling. The rectangular protruding part of the bracket must be facing the ceiling. 2. Hold the access point upside down with the front of the access point facing the bracket.

  • Page 5: Package Contents

    15/16 in. (23.8 mm) T-bar. Note: Power up your WAX214 by connecting it to a PoE or PoE+ switch. As an option, you can order a 12V, 1.5A power adapter. For more information about the power adapter, see netgear.com/support Overview...
  • Page 6 The default WiFi turns off if it is idle for 15 minutes. Join the WiFi network 1. On the WiFi device that you want to connect to the WAX214, open the software utility that manages your WiFi connections. The utility scans for all WiFi networks in your area.
  • Page 7 3. The Day Zero login page displays. Follow the prompts. You must set a new admin password for local login, a new SSID, and a new passphrase. Accept NETGEAR’s terms and conditions. 4. Click the Apply button. Your settings are saved, and you are disconnected from the WiFi network.
  • Page 8 See the regulatory compliance document before connecting the power supply. For NETGEAR’s Privacy Policy, visit https://www.netgear.com/about/privacy-policy. By using this device, you are agreeing to NETGEAR’s Terms and Conditions at https://www.netgear.com/about/terms-and-conditions. If you do not agree, return the device to your place of purchase within your return period.
