DS-KH6350-TE1
Network Indoor Sta�on
ENGLISH
1

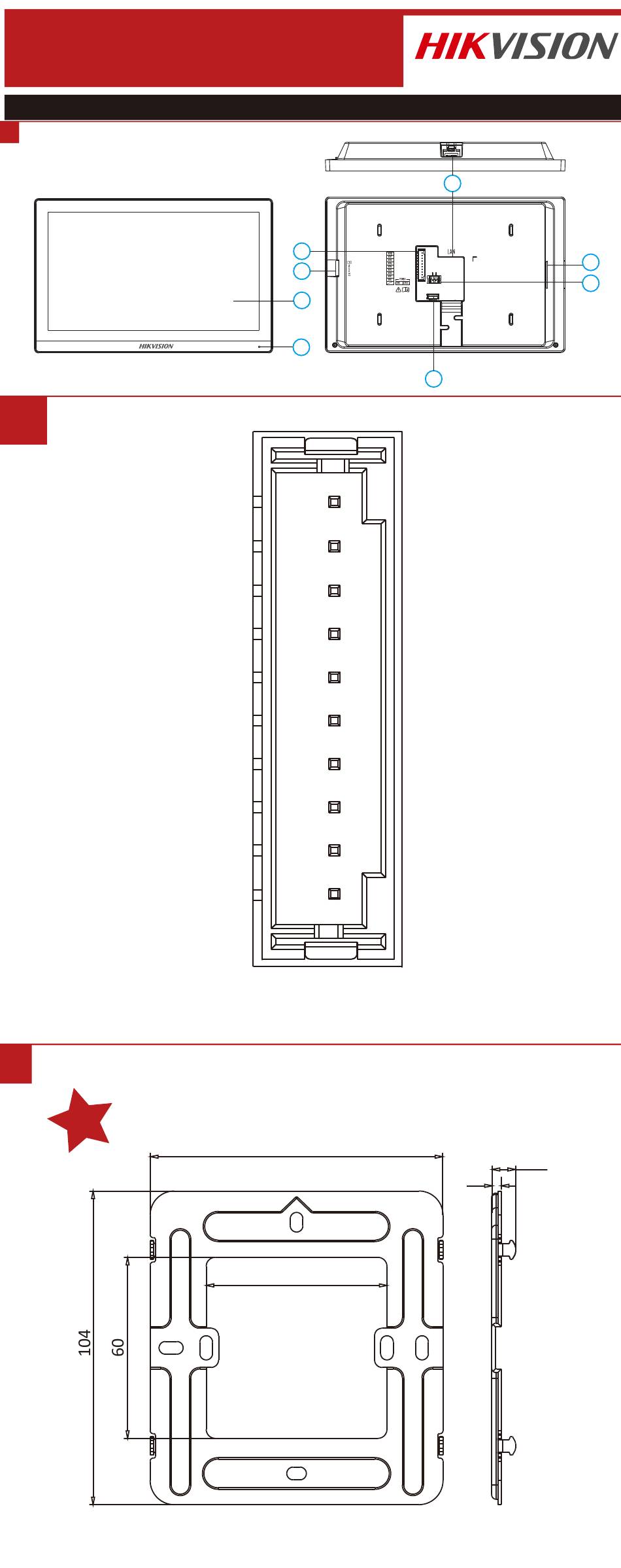

Diagram References
1
Appearance
1
Screen
TF Card Slot
5
8
Power Supply Terminal
Note:
The appearance of the device varies according to different models. Refers to the actual device for detailed
informa�on.
The debugging port is used for debugging only.
Terminal and Wiring
2
AIN1 to AIN8 : Alarm Input pins.
You should connect alarm input device to the indoor station by connecting any
terminals of AIN1 to AIN8 and GND.
Note:The power supply must conform to LPS. The recommended adaptor models and manufacturers
2
3
are shown as below. Use the attached adapter, and do not change the adaptor randomly.
Wall Mounting with Gang Box (Type I)
Model
ADS-26FSG-12 12024EPG
ADS-26FSG-12 12024EPCU/EPC 2A
ADS-26FSG-12 12024EPB
MSA-C2000IC12.0-24P-BR
MSA-C2000IC12.0-24P-AU
ADS-26FSG-12 12024EPI-01
3
Installa�on
Installa�on Accessory Descrip�on
The wall moun�ng plate and gang box are required to install the indoor sta�on onto the
wall.
There are 2 size of the gang boxes adapted to the device.
Size 1: 75 mm (width)
Size 2: 55 mm (width)
Rear Panel (without Interface)
THe dimension of mounting plate is 97 mm (width) × 104 mm (length) × 3 mm (depth).
Before You Start
Wall Mounting with Gang Box (Type II Horizontal Installation)
Make sure the device in the package is in good condi�on and all the assembly parts
are included.
The power supply the indoor sta�on supports is 12 VDC. Or the standard PoE is
supported. Please make sure your power supply matches your indoor sta�on.
Lock Catch
Make sure all related equipments are power-off during the installa�on.
Check the product specifica�on for the installa�on environment.
Wall Moun�ng with Gang Box (Type I)
1. Cave a hole in the wall.
Note: The suggested dimension of the installa�on hole should be larger than the gang box.
2. Insert a gang box (Type I) to the hole chiseled on the wall.
3. Fix the wall moun�ng plate to the gang box with 2 screws.
Note: If you install the device with a gang box (75 mm(width) × 75 mm(length) × 46 mm(depth)), the le� and
right holes will be applied.
Rear Panel (without Interface)
4. Hook the indoor sta�on to the wall moun�ng plate �ghtly by inser�ng the plate
hooks into the slots on the rear panel of the indoor sta�on, during which the lock catch
will be locked automa�cally.
Wall Moun�ng with Gang Box (Type II)
1. Cave a hole in the wall.
Note: The suggested dimension of the installa�on hole should be larger than the gang box.
2. Insert a gang box (Type II) to the hole chiseled on the wall.
3
Note: If you use the gang box (55 mm(width) × 101 mm(length) × 48.5 mm(depth)), You can install the gang
box Vertical or Horizontal.
3. Fix the wall moun�ng plate to the gang box with 2 screws.
Notes:
Wall Mounting with Gang Box (Type II
If you install the device with the gang box horizontal, the le� and right holes will be applied.
If you install the device with the gang box vertical, the upper and lower holes will be applied.
4. Hook the indoor sta�on to the wall moun�ng plate �ghtly by inser�ng the plate
hooks into the slots on the rear panel of the indoor sta�on, during which the lock catch
will be locked automa�cally.
Table Moun�ng with Table Bracket
1. Put the table bracket on the desk.
2. Route the cable through the cable hole to connect the indoor station.
3. Hook the indoor station to the table bracket tightly by inserting the table bracket hooks
into the slot on the rear panel of the indoor station, during which the lock catch will be
locked automatically.
Getting Started
4
Activate Indoor Station
1
You are required to activate the device first by setting a strong password before
you can use the device.
1. Power on the device. It will enter the activation page automatically.
2. Create a password and confirm it.
3. Tap OK to activate the indoor station.
Quick Configuration
2
1. Choose Language and tap Next.
2. Set password reset method and tap Next.
- Enter the Reserved Email address, then you can reset the password by email.
Note: On the security questions settings page, you can tap Change to Reserved Email to modify the
password reset method.
- Tap Change to Security Question. Select 3 security questions from Deficiency List and
enter the answers of the questions, then you can reset the password by answering
security questions.
2
Microphone
6
Debugging Port
Current Manufacturer
2A
2A
2A
AIN8
Lock Catch
Lock Catch
2A
2A
AIN7
AIN6
AIN5
Lock Catch
Lock Catch
×
75 mm (length)
×
101 mm (length)
AIN4
AIN3
AIN2
Lock Catch
AIN1
GND
/
Lock Catch
Lock Catch
Alarm Input Terminal
Lock Catch
UD27089B
3
Network Interface
7
4
5
1
GND : Grounding Interface
2
SHENZHEN HONOR ELECTRONIC CO.,LTD
SHENZHEN HONOR ELECTRONIC CO.,LTD
SHENZHEN HONOR ELECTRONIC CO.,LTD
Moso Power Supply Technology Co.,Ltd.
Moso Power Supply Technology Co.,Ltd.
Hook
SHENZHEN HONOR ELECTRONIC CO.,LTD
Hook
×
50 mm (depth).
Screw
×
38.5 mm (depth).
Wall Mounting Plate
Hook
Hook
Hook
Hook
Screw
Wall Mounting Plate
97
60
3
Alarm Input Terminal
4
Loudspeaker
6
Hook
Hook
Gang Box
Gang Box
3
Lock Catch
7
8
Standard
CEE
NEMA
BS
NBR
AS
IS
Wall
Wall
7.7
Unit:mm
