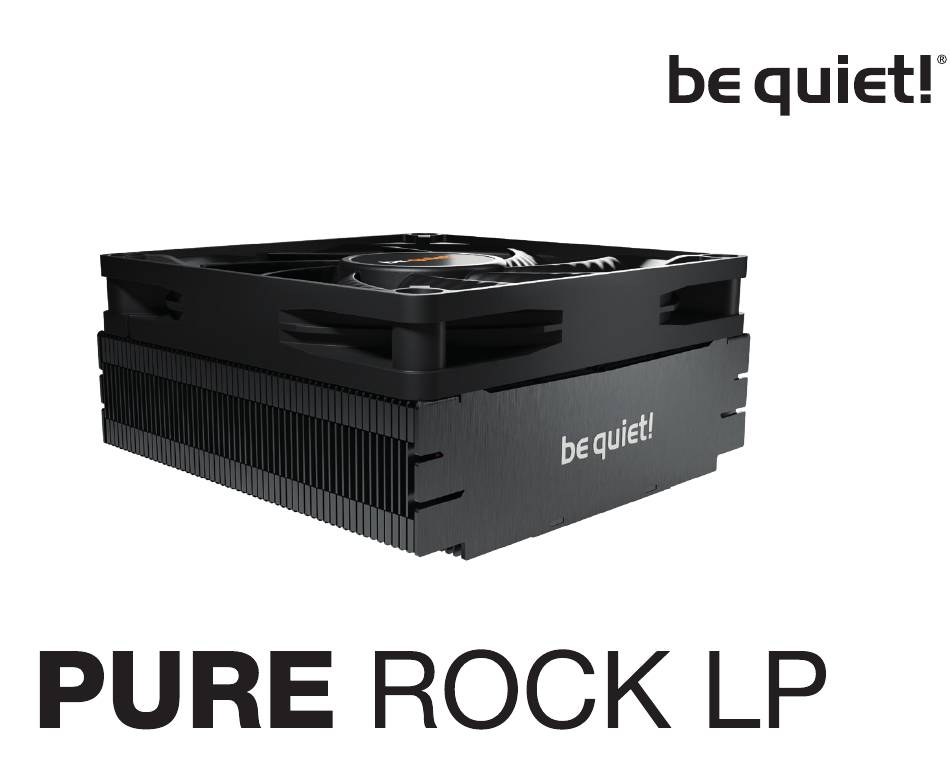

- Page 2 SCOPE OF DELIVERY / LIEFERUMFANG Part name Quantity be quiet! Pure Rock LP CPU cooler be quiet! Pure Rock LP CPU-Kühler Intel mounting brackets Intel Montagebrücken AMD mounting brackets AMD Montagebrücken Intel fastening screws Intel Befestigungsschrauben AMD backplate screws AMD Backplate-Schrauben...
- Page 3 (7), 4x Hexagonal nuts (8), 1x Hexagonal wrench (9) 1x Pure Rock LP CPU cooler (1), 2x Intel mounting brackets (2), 4x Intel fastening screws (4), 4x M3x3 screws (6), 4x Hexagonal nuts with sleeve (7), 4x Hexagonal nuts (8), 1x Hexagonal wrench (9) Assembly of the mounting brackets Aufbau der Montagebrücken...
- Page 4 Removal of protective covering Entfernen der Schutzkappe Removal of protective covering The protective covering on the under- Vor der Montage muss zunächst die neath of the cooler must be removed prior Schutzkappe von der Unterseite des The protective covering on the under- to installation against the CPU.
- Page 5 Installation of the mounting brackets Installation der Montagebrücken Installation of the mounting brackets Attach the 2 Intel mounting brackets to Befestigen Sie die 2 Intel Montage- the underside of the CPU cooler using brücken an der Unterseite des CPU- Attach the 2 Intel mounting brackets to the M3x3 screws.
- Page 6 Mounting the CPU cooler Montage des CPU-Kühlers Mounting the CPU cooler Next place the cooler unit onto the CPU Platzieren Sie den CPU-Kühler auf der and then screw it alternatively tight from CPU. Schrauben Sie ihn von der Rück- Next place the cooler unit onto the CPU the backside of the mainboard.
- Page 7 1x Pure Rock LP CPU cooler (1), 2x AMD mounting brackets (3), 4x AMD backplate sc 1x Pure Rock LP CPU cooler (1), 2x AMD mounting brackets (3), 4x AMD backplate screws (5), 4x M3x3 screws (6) Removal of AMD retention module...
- Page 8 Removal of protective covering Entfernen der Schutzkappe Removal of protective covering The protective covering on the under- Vor der Montage muss zunächst die neath of the cooler must be removed Schutzkappe von der Unterseite des The protective covering on the under- prior to installation against the CPU.
- Page 9 Installation der Montagebrücken Installation of the mounting brackets Installation of the mounting brackets Befestigen Sie die 2 AMD Montage- Attach the 2 AMD mounting brackets to brücken an der Unterseite des CPU- the underside of the CPU cooler using Attach the 2 AMD mounting brackets to Kühlers.
- Page 10 Mounting the backplate Befestigung der Backplate Mounting the backplate Platzieren Sie den CPU-Kühler auf der Place the cooler unit onto the CPU CPU. Schrauben Sie ihn durch die Back- and screw it from the rear side of the Place the cooler unit onto the CPU plate von der Rückseite des Mainboards motherboard through the backplate alter- abwechselnd fest.
- Page 11 Introduction: Thank you for deciding to purchase a be quiet! product. The following instructions will guide you through the installation process. If you do encounter installation problems, please don't hesitate to contact our customer services by mailing service@bequiet.com. Please note that be quiet! cannot accept liability for damage caused by compatibility problems.
- Page 12 www.bequiet.com/bk034 » Product information for this CPU cooler » Produktinformationen zu diesem CPU-Kühler » Informations produit pour ce système de refroidissement » Información del producto para este refrigerador de CPU » Informacje produktowe dla tego coolera CPU » Engelstalige productinformatie voor deze processorkoeler »...
